51906.83.WH3

KeyPad TouchScreen communicates with a hub over two secure radio protocols. The keypad uses the Jeweller protocol to transmit alarms and events, and the Wings protocol to update firmware, transmit the list of groups, rooms, and other additional information. The communication range in an open space is up to 1,700 meters.

Intelligent security and automation management

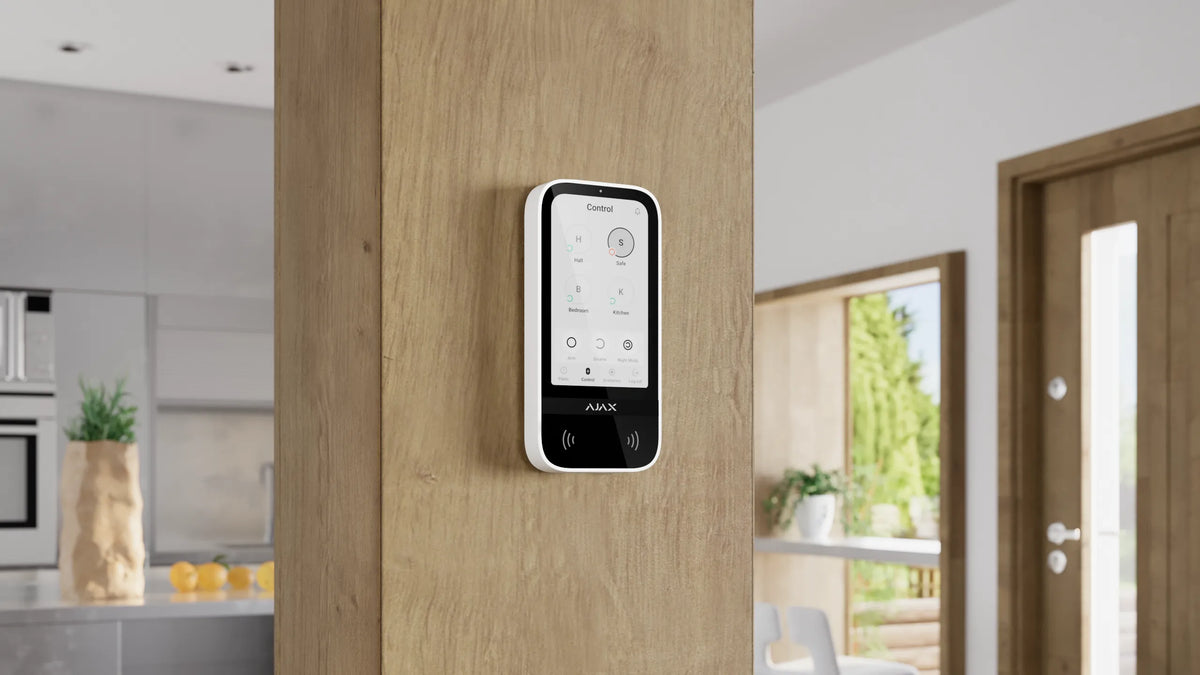

KeyPad TouchScreen Jeweller is designed for intuitive and convenient security system control.
The graphical interface, sound notifications, and LED indication of the keypad ensure that users’
commands and the system’s responses are delivered without fail. If a malfunction is detected during the integrity check,
the keypad clearly indicates the cause. This way, users are always aware of the system state and any necessary actions.

Key features

• Easy security group management

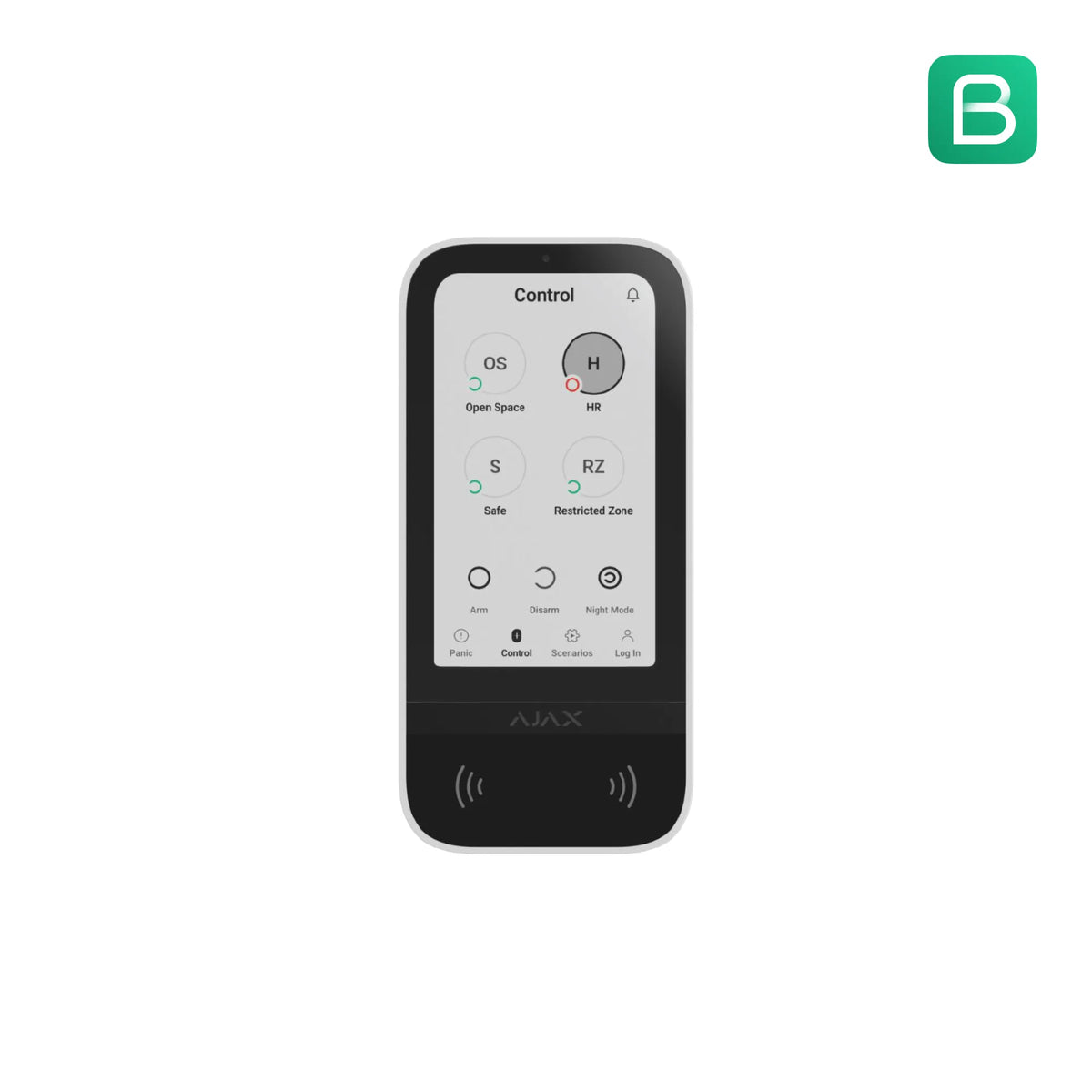

• Control tab for automation devices with toggles indicating the current device state
• Sound and LED indication for alarms, opening doors (Chime), delays when entering/leaving, and other events
• Keypad activation when a user approaches the device and during delays when entering
• Automatic backlight brightness adjustment
• On-screen notification specifying the cause of a malfunction when arming the system

Three fast and secure authentication methods

• Pass card or Tag key fob

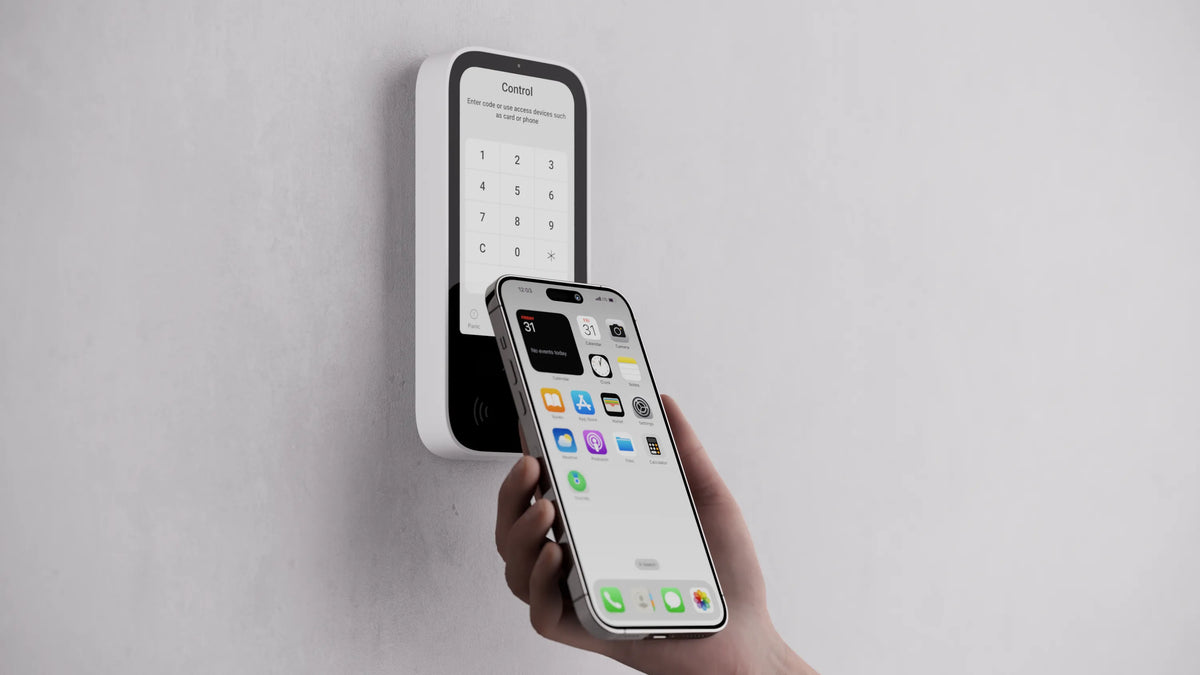

• Smartphone
• Codes

All set in case of emergency

• Keypad auto-locking when someone tries to guess the code
• Duress codes to simulate system disarming and send a silent alarm to the security company
• Protection against authentication via unauthorized access devices
• Three emergency buttons: panic, fire, and auxiliary alert

communication technologies

• Up to 1,700 m (5,550 ft) of radio communication between the keypad and a hub or range extender in an open space
• Data encryption throughout the transmission process
• Regular polling to display the current device state
• Frequency hopping to prevent radio interference and jamming

Complex sabotage protection

• Tamper alarm to notify of keypad dismantling
• Keypad authentication to prevent spoofing
• Detection of communication loss between the keypad and a
  hub

Easy installation and setup

• Pairing with a hub by scanning the QR code
• Remote control and configuration via Ajax apps
• SmartBracket mounting panel for easy installation without disassembling the device enclosure
• Over-the-air firmware updates
