59359.94.NC : Low-Voltage Power Supply Module for Ajax Hubs and Range Extenders

59359.94.NC – 12–24V PSU (Type A)
Low-Voltage Power Supply Module for Ajax Hubs and Range Extenders

This professional-grade low-voltage power supply module enables Ajax control panels and range extenders to operate reliably on 8–32 VDC power sources. Designed for technical integrators and security professionals, the 12–24V PSU (Type A) provides stable 4.8 VDC output, extended environmental tolerance, and a seamless drop-in replacement for the factory-installed PSU board.

Product Features

• Wide 8–32 VDC input range, suitable for low-voltage and battery-backed power systems.
• Regulated 4.8 VDC ±5% output supporting up to 1.5 A load.
• Drop-in installation inside Ajax hubs or range extenders by replacing the original power supply board.
• Secure low-voltage connection via dedicated connector slots (0.26″ × 0.079″ female, 0.23″ × 0.083″ male).
• Operates in temperatures from 14°F to 104°F with humidity up to 75%.

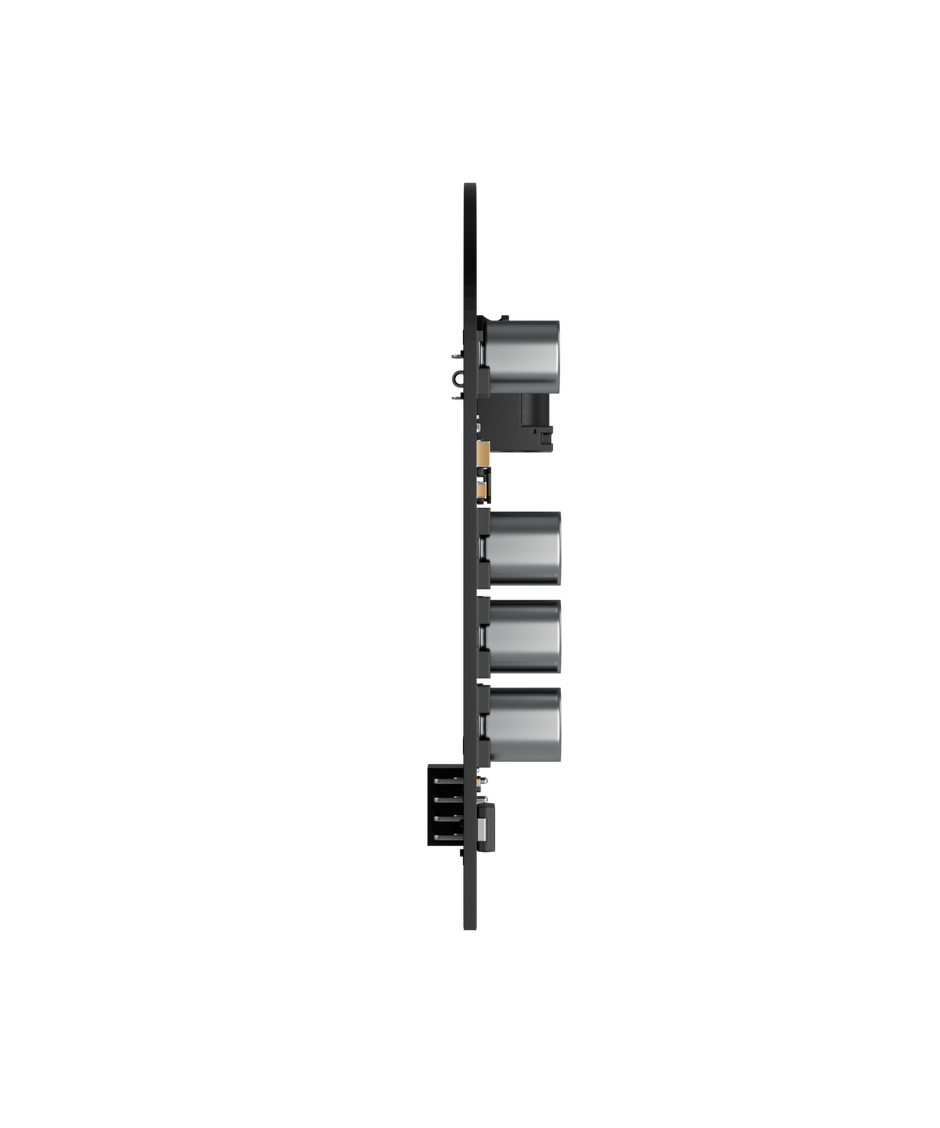

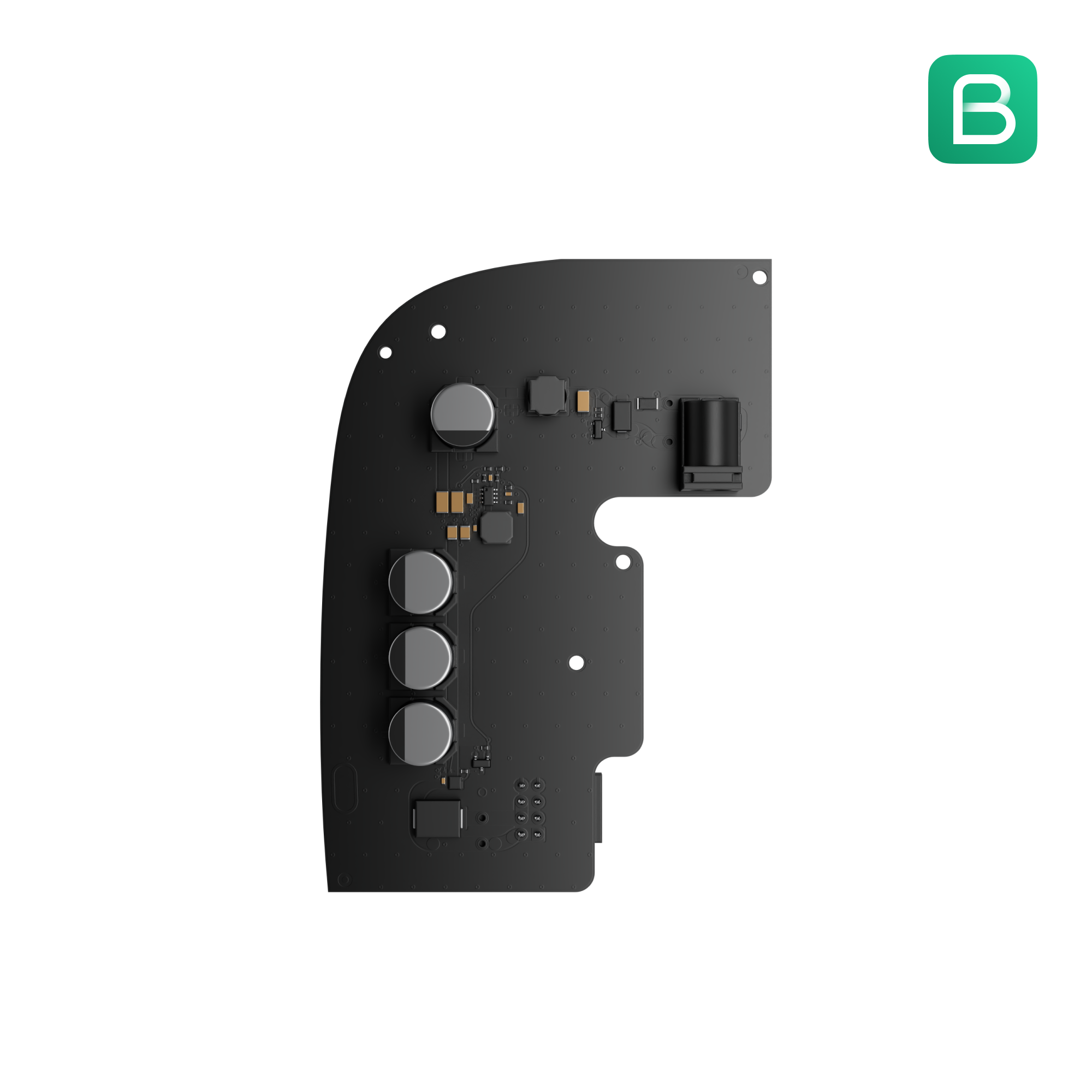

• Lightweight and compact PCB design for confined enclosures.
• Includes terminal adapter and quick start guide for fast deployment.
