AC02C/F

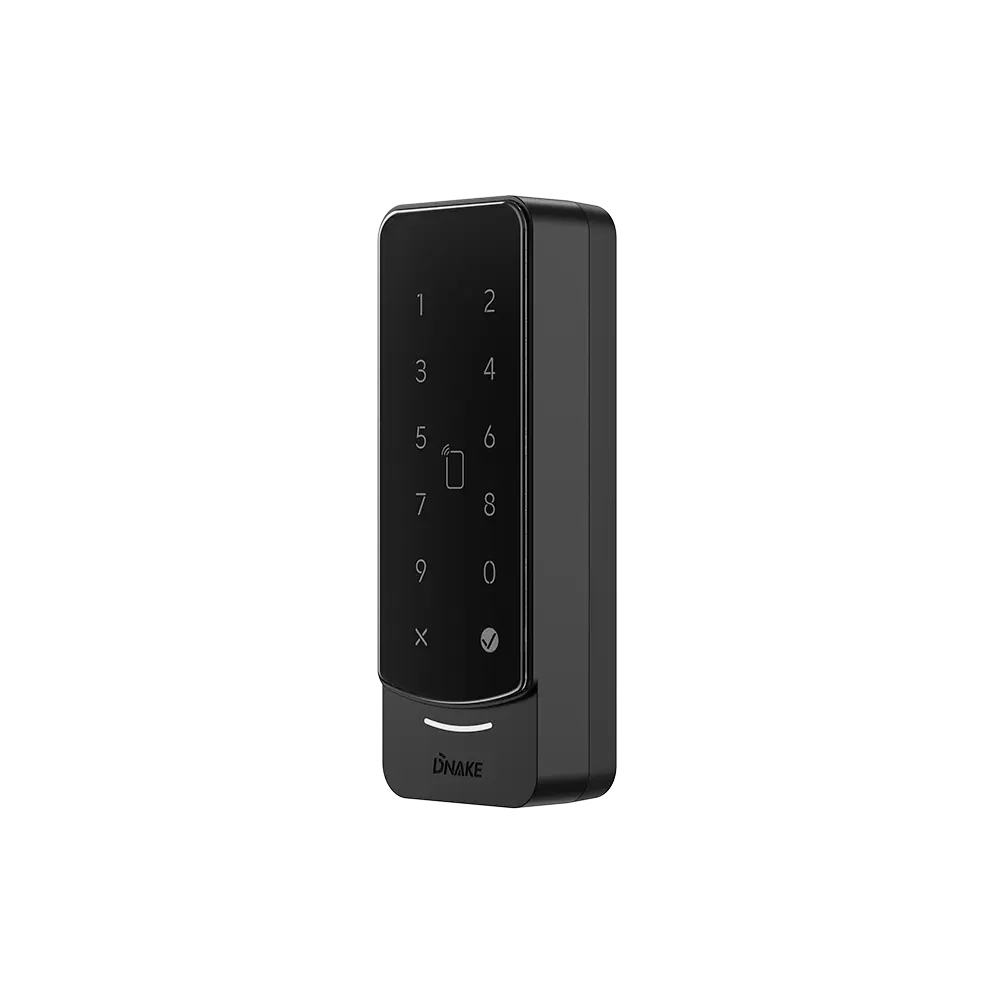

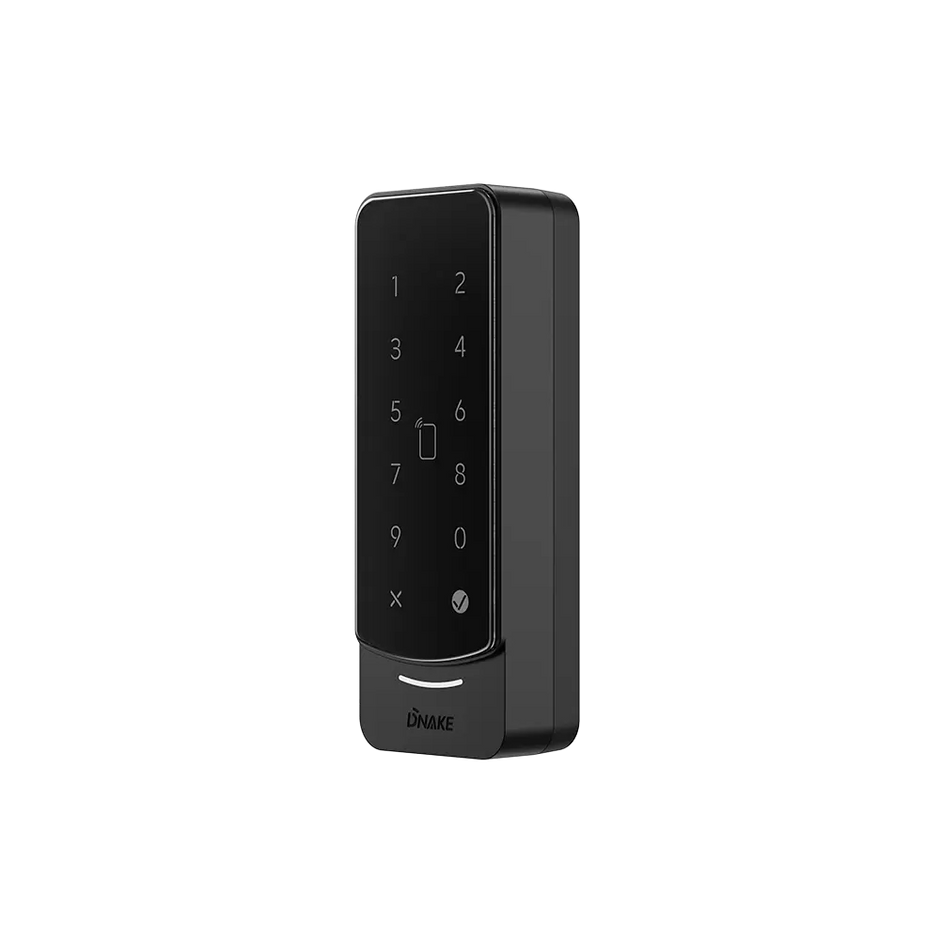

AC02C/F – Smart Access Control Terminal (Flush Mounting)

The AC02C/F Access Control Terminal delivers a sleek, secure, and intelligent access solution built for modern buildings and enterprise environments. With its flush-mount design, durable construction, and multi-method authentication, it offers both premium aesthetics and top-level performance for reliable access management.

Key Features

• Premium Construction: Crafted from aluminum alloy and 2.5D tempered glass for exceptional durability and modern appearance.

• Slim Form Factor: Just 50mm thick, ideal for installations in tight or refined spaces.

• High-Definition Camera: Integrated 2MP HD camera for clear visual identification.

• Certified Protection: Rated IP65 (weather-resistant) and IK08 (impact-resistant) for outdoor and high-traffic use.

• Versatile Entry Options: Supports RFID cards, PIN, NFC, Bluetooth, QR code, and mobile App access.

• Enhanced Security: Works with MIFARE Plus SL1/SL3 encrypted cards to prevent unauthorized duplication.

• High Capacity: Stores up to 60,000 cards and 100,000 access logs for large-scale applications.

• Smart Cloud Management: Enables centralized device control, monitoring, and OTA updates via cloud platform.

• Flexible Integration: Compatible with Wiegand and RS485 protocols for seamless system connectivity.

• Tamper Detection: Built-in tamper alarm enhances physical security.

• Flush Mounting Design: Perfect for professional installations requiring a clean, embedded finish.

• Power Options: Operates via PoE or DC 12V for efficient power management.

Advantages

• Elegant flush-mounted design that complements modern interiors and exteriors.

• Secure multi-method authentication for flexible user access.

• High durability with industrial-grade weather and impact resistance.

• Easy integration into existing security and access infrastructures.

• Remote cloud management for simplified operation and maintenance.

Applications

• Office and corporate facilities

• Luxury residential buildings and apartments

• Educational and government institutions

• Industrial and logistics centers

• Hotels, hospitals, and smart buildings

The AC02C/F Smart Access Control Terminal combines cutting-edge access technology, robust protection, and sleek flush-mounted aesthetics. Designed for modern security systems, it ensures secure, efficient, and elegant access control for professional and residential environments alike.
