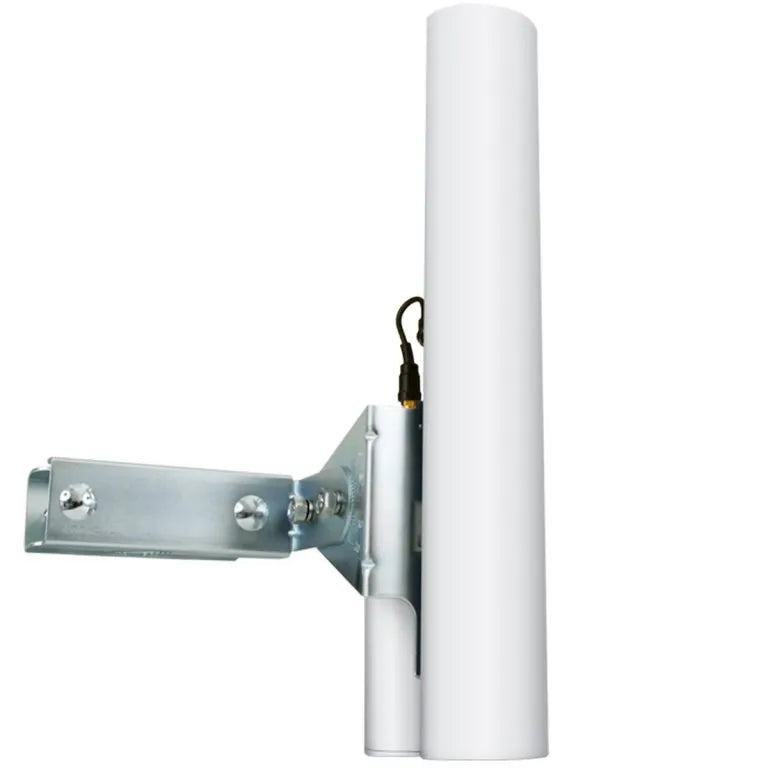

AM-5G16-120

AM-5G16-120 – airMAX 5 GHz 120° Sector Antenna, 16 dBi, Rocket-Ready

The AM-5G16-120 is a high-performance 5 GHz airMAX sector antenna engineered for BaseStation deployments in Point-to-Multipoint (PtMP) wireless networks. Featuring 120-degree horizontal coverage and up to 16 dBi of gain, it delivers focused sector performance while maintaining excellent signal uniformity across the coverage area.

Designed with simultaneous dual-polarity (vertical and horizontal) operation, the AM-5G16-120 fully supports 2x2 MIMO airMAX radios, maximizing throughput and spectral efficiency. Its optimized beam pattern, combined with electrical downtilt, ensures controlled coverage, reduced interference, and superior performance in high-density WISP environments.

The antenna includes the Rocket Team Holder, enabling direct, tool-free mounting of airMAX Rocket radios for a clean, compact, and weather-resistant installation.

Product Features

• 5 GHz airMAX sector antenna for BaseStation deployments
• 120° horizontal sector coverage
• High gain performance: up to 16 dBi
• Simultaneous dual-linear polarization (V/H)
• Optimized beam pattern for PtMP networks
• Integrated Rocket mounting system included
• Compact and lightweight industrial design

Product Advantages

• Ideal for WISP sectorized BaseStations
• Excellent interference control with focused beamwidth
• Seamless integration with airMAX Rocket radios
• High wind survivability for outdoor tower installations
• ETSI-compliant design for professional deployments

Professional Applications

• Wireless ISP (WISP) BaseStations
• Point-to-Multipoint access networks
• Sectorized tower installations
• Outdoor broadband distribution
• High-density wireless coverage zones

Summary

The AM-5G16-120 is a reliable and efficient 5 GHz sector antenna, delivering controlled 120-degree coverage, high gain, and seamless Rocket integration for scalable airMAX BaseStation deployments.
