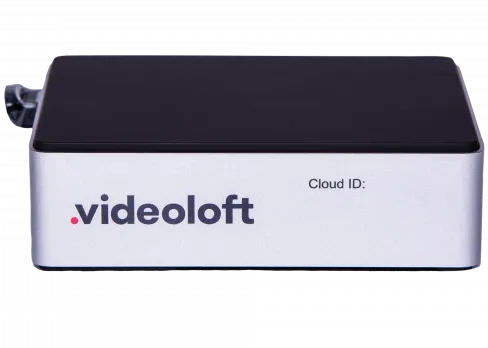

CA8

CA8: 8 Cameras or Recorder Channels Cloud Adapter Mini The CA8 Cloud Adapter Mini supports up to 8 cameras or recorder channels for the Videoloft cloud platform, delivering secure cloud storage and robust local backup capabilities. Designed for performance and compliance, it features a powerful quad-core processor, NDAA compliance, and local live display options.

Key Features

• High Capacity: Supports up to 8 cameras or recorder channels (DVR/NVR).

• Automatic Failover Backup: Equipped with a 32GB USB 3.0 drive to store video locally during network outages, which automatically uploads to the Videoloft cloud once connectivity is restored.

• Local Live Display: Features a Micro-HDMI port supporting up to 4K resolution for local live viewing functionality.

• Powerful Processing: Powered by an ARM Cortex-A72 Quad Core 1.5GHz CPU, Broadcom VideoCore VI GPU, and 4GB LPDDR4-3200 SDRAM.

• Network Connectivity: Includes an integrated Gigabit Ethernet interface and supports network protocols such as IPv4, IPv6, HTTP, HTTPS, RTSP, RTSPS, and NTP.

• Compact & Lightweight Design: Measures $103 \times 66 \times 28$ mm ($4.01 \times 2.60 \times 1.10$ inches) and weighs just 0.14 kg / 0.31 lbs.

• Power Supply: Comes with a universal plug USB-C power supply (rating 3A @ 5.1V, 1.5m cable) with a power consumption of 5-15W.

  Applications

• Centralized cloud surveillance for multi-camera systems or existing DVR/NVR setups

• Commercial, retail, and perimeter security environments requiring reliable off-site cloud backup

• Installations requiring resilient local video storage during temporary network disconnections

• Advanced residential and enterprise security monitoring systems
