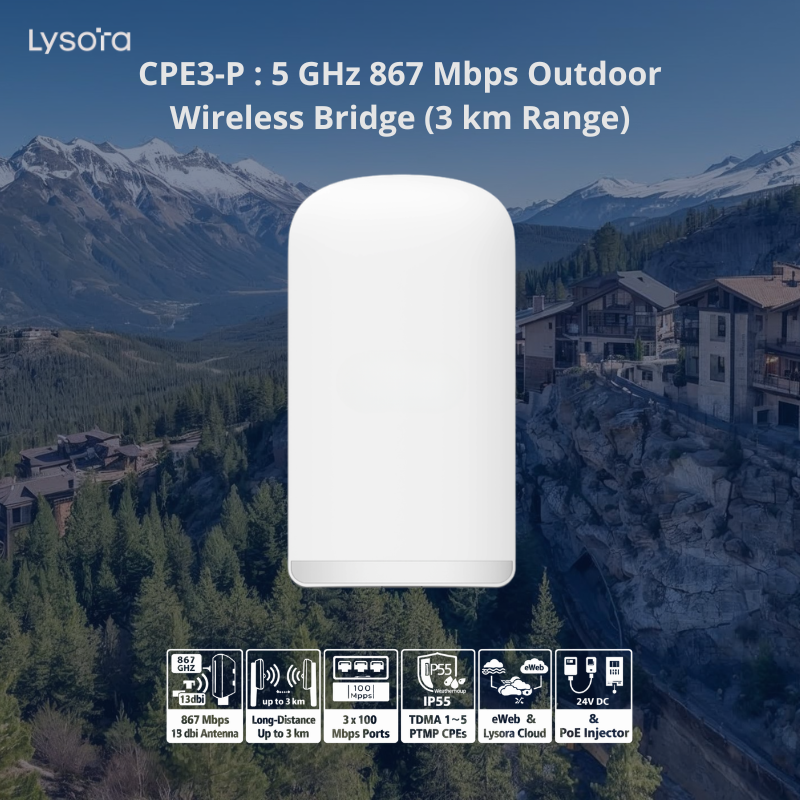

CPE3-P : 5 GHz 867 Mbps Outdoor Wireless Bridge (3 km Range)

CPE3-P : 5 GHz 867 Mbps Outdoor Wireless Bridge (3 km Range)

The CPE3-P (RG-EST330F-P) is a professional-grade 5 GHz outdoor wireless bridge designed for long-distance surveillance backhaul and point-to-point (PTP) or point-to-multipoint (PTMP) deployments. Featuring a 13 dBi high-gain directional antenna, TDMA technology, and up to 3 km (1.86 miles) transmission distance, it delivers stable and interference-resistant connectivity in demanding outdoor environments.

Built with IP55 weatherproof protection, dual-radio architecture, and cloud-based management, it is optimized for CCTV and industrial wireless bridge applications.

Product Description

The RG-EST330F-P operates with a dual-radio design:

• 2.4 GHz (1×1 SISO) – management & auxiliary connectivity
• 5 GHz (2×2 MIMO) – high-performance bridge transmission

With a combined wireless rate of 1166 Mbps (300 Mbps @ 2.4 GHz + 866 Mbps @ 5 GHz), it ensures reliable long-range throughput. The integrated 13 dBi 5 GHz directional antenna (30° horizontal / 30° vertical beamwidth) improves link stability and signal focus.

It supports TDMA enhanced transmission, enabling efficient PTMP deployments with up to 16 connections (recommended 1–5 for optimal performance).

The unit includes 24V DC power adapter and PoE injector, and supports 802.3af/at PoE, with PoE Out capability for powering external devices.

Key Features

• 5 GHz wireless bridge (Wi-Fi 5 – 802.11ac)
• 13 dBi high-gain directional antenna
• Up to 3 km transmission distance
• Dual-radio architecture (2.4 GHz + 5 GHz)
• 3 × 10/100 Mbps Ethernet ports
• TDMA enhanced one-to-many transmission
• Up to 16 PTMP connections
• IP55 outdoor weatherproof rating
• PoE In and dual PoE Out (802.3af)
• eWeb and Lysora Cloud management
• One-touch pairing (20 m pairing range)
• NDAA-compliant enterprise design

The CPE3-P (RG-EST330F-P) delivers 867 Mbps 5 GHz performance, 3 km range, TDMA efficiency, and IP55 industrial protection, making it ideal for professional outdoor wireless bridge and CCTV backhaul deployments.
