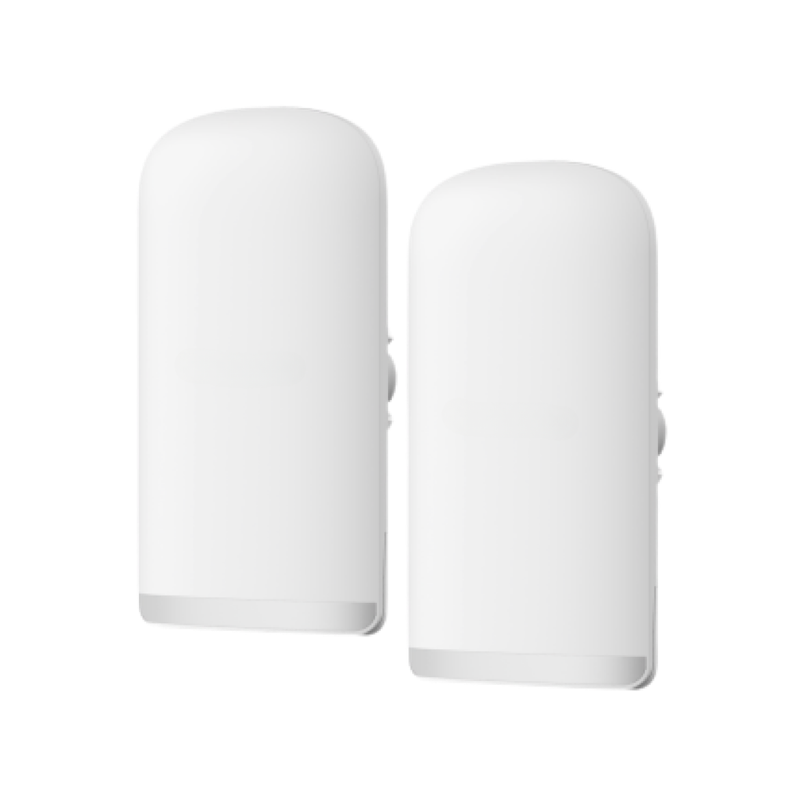

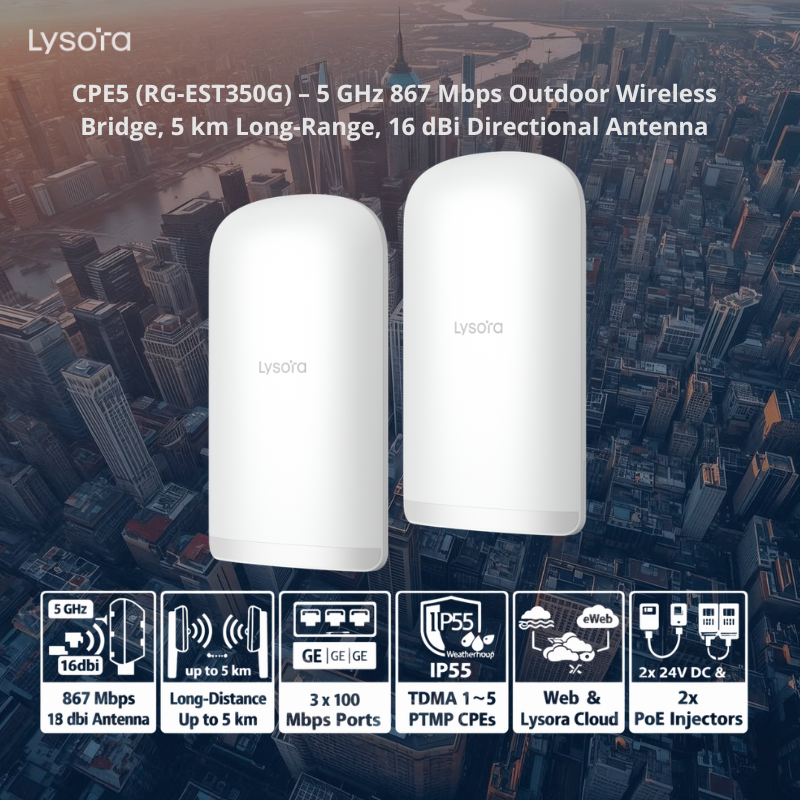

CPE5 (RG-EST350G) : 5 GHz 867 Mbps Outdoor Wireless Bridge, 5 km Long-Range, 16 dBi Directional Antenna

CPE5 (RG-EST350G) : 5 GHz 867 Mbps Outdoor Wireless Bridge, 5 km Long-Range, 16 dBi Directional Antenna

Short Description

The CPE5 (RG-EST350G) is a high-performance 5 GHz outdoor wireless bridge engineered for long-distance PTP and PTMP deployments up to 5 km (3.11 miles). Featuring a 16 dBi high-gain directional antenna, Gigabit Ethernet ports, and TDMA technology, it delivers stable and interference-resistant connectivity for CCTV and industrial backhaul applications.

Product Description

The CPE5 integrates a dual-radio architecture designed for professional outdoor deployments:

• 2.4 GHz (1×1 SISO) for management and auxiliary connectivity
• 5 GHz (2×2 MIMO) dedicated high-performance bridge radio

With a combined wireless rate of 1166 Mbps (300 Mbps @2.4 GHz + 866 Mbps @5 GHz) and real bridge throughput reaching 230 Mbps at 1 km, the device ensures reliable high-bandwidth transmission over extended distances.

The integrated 16 dBi directional antenna with a 31° horizontal and 14° vertical beamwidth enhances signal concentration, improving link stability and minimizing interference.

Equipped with three Gigabit Ethernet ports, the CPE5 eliminates LAN bottlenecks while supporting high-density surveillance deployments. Its IP55-rated enclosure, industrial-grade surge protection, and wide temperature tolerance ensure dependable performance in harsh outdoor environments.

The package includes two 24 V DC power adapters and two PoE injectors, enabling immediate PTP deployment.

Key Features

• 5 GHz Wi-Fi 5 (802.11ac) wireless bridge
• Up to 5 km transmission distance
• 16 dBi high-gain directional antenna
• Dual-radio architecture
• 3 × 10/100/1000 Mbps Ethernet ports
• TDMA enhanced one-to-many transmission
• Supports up to 16 PTMP connections
• IP55 outdoor weatherproof rating
• One-touch pairing (up to 50 m)
• Web and Lysora Cloud management
• SNMP v1/v2c/v3 support
• Industrial-grade ESD and surge protection
• Includes 2× 24V adapters and 2× PoE injectors

The CPE5 delivers 5 km long-range wireless bridging, 16 dBi directional gain, Gigabit connectivity, and TDMA efficiency, making it a professional-grade solution for outdoor surveillance and infrastructure networking.
