CPE510

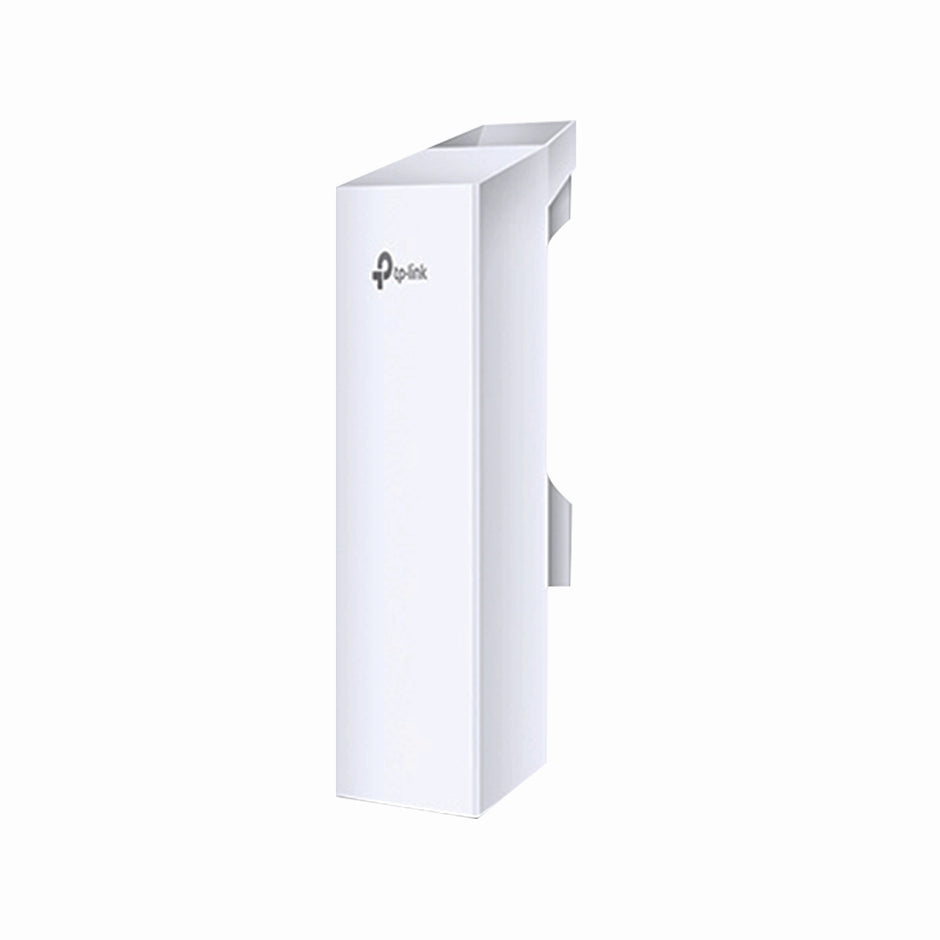

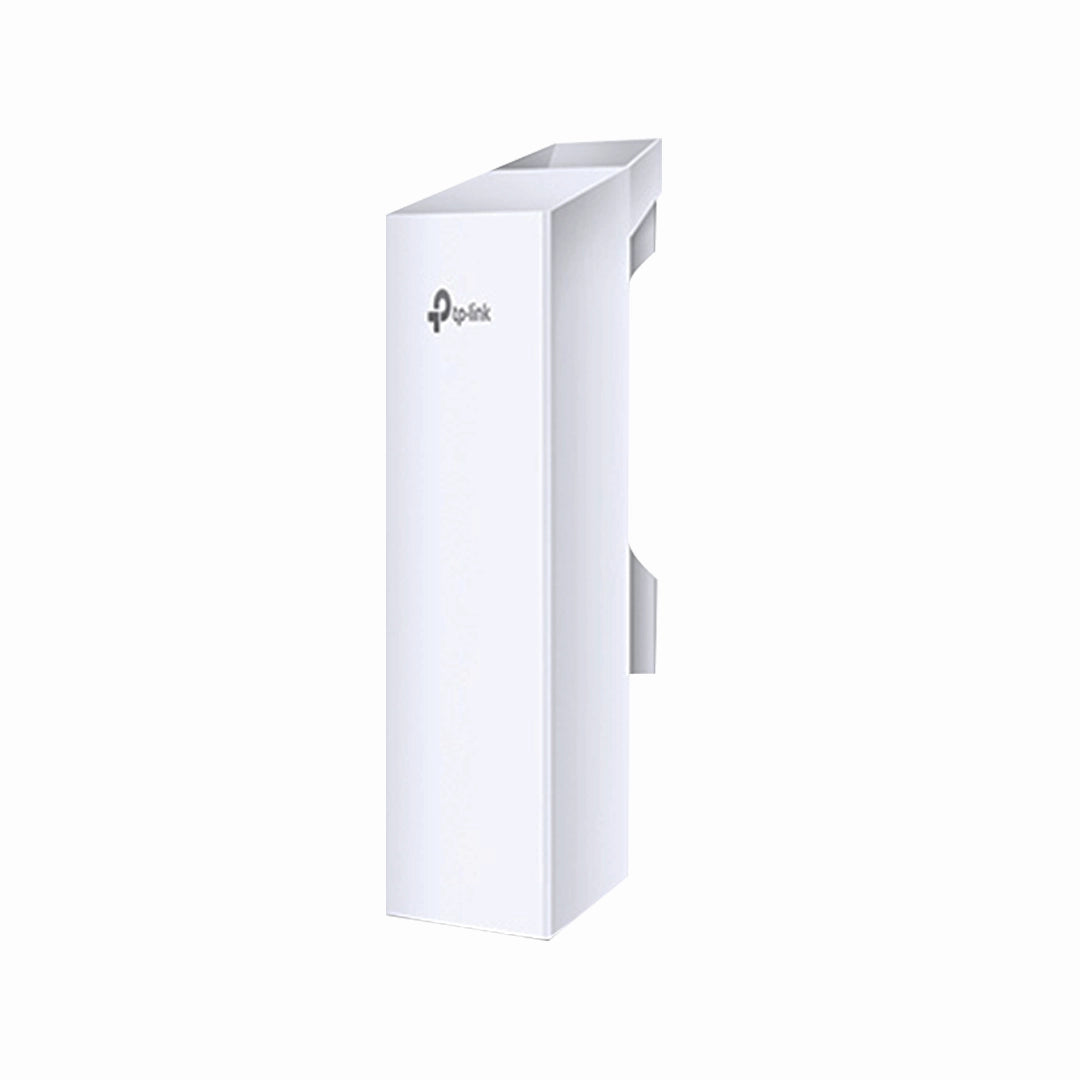

CPE510 – 5GHz 300Mbps 13dBi Outdoor Wireless CPE

The CPE510 is a high-performance outdoor wireless CPE engineered for long-range point-to-point (PtP) and point-to-multipoint (PtMP) deployments. Operating in the 5GHz band and delivering speeds of up to 300 Mbps, it integrates a 13dBi dual-polarized directional MIMO antenna and advanced TDMA technology to ensure stable, low-latency wireless links over extended distances, even in high-interference environments.

Designed for professional outdoor installations, the CPE510 features a rugged IPX5-rated enclosure, integrated lightning and ESD protection, and centralized management through Pharos Control, making it ideal for video surveillance backhaul, WISP networks, and enterprise outdoor connectivity.

Product Features

• 5GHz wireless connectivity with data rates up to 300 Mbps
• Built-in 13dBi 2x2 dual-polarized directional MIMO antenna
• Pharos MAXtream TDMA technology for improved throughput, capacity, and latency
• System-level optimizations for wireless transmission beyond 15 km
• Multiple operating modes: AP, Client, AP Router, AP Client Router (WISP)
• Adjustable transmit power from 0 to 26 dBm (398 mW)
• Passive PoE support up to 60 meters (200 ft) with remote reset capability
• Centralized management via Pharos Control
• Advanced wireless security including WPA/WPA2 and VLAN support
• Integrated ESD (15 kV) and lightning protection (6 kV)

Product Advantages

• Designed for long-distance outdoor wireless links with consistent performance
• TDMA technology significantly reduces interference and latency in PtMP deployments
• Rugged weatherproof enclosure suitable for harsh outdoor environments
• Flexible deployment for ISPs, CCTV systems, and enterprise networks
• Low power consumption with efficient PoE operation
• Comprehensive monitoring and diagnostics tools for professional network management

Professional Applications

• Wireless backhaul for IP CCTV and video surveillance systems
• Point-to-Point (PtP) links between buildings or remote facilities
• Point-to-Multipoint (PtMP) networks for WISPs and outdoor coverage
• Industrial and commercial outdoor networking
• Access control and alarm system connectivity in remote areas
• Campus, warehouse, and perimeter security networks

Summary

The CPE510 delivers a powerful and reliable outdoor wireless solution for professionals who require long-range, stable, and interference-resistant connectivity. With its 13dBi directional antenna, TDMA technology, and centralized management, it is an excellent choice for CCTV backhaul, WISP deployments, and enterprise outdoor networks.
