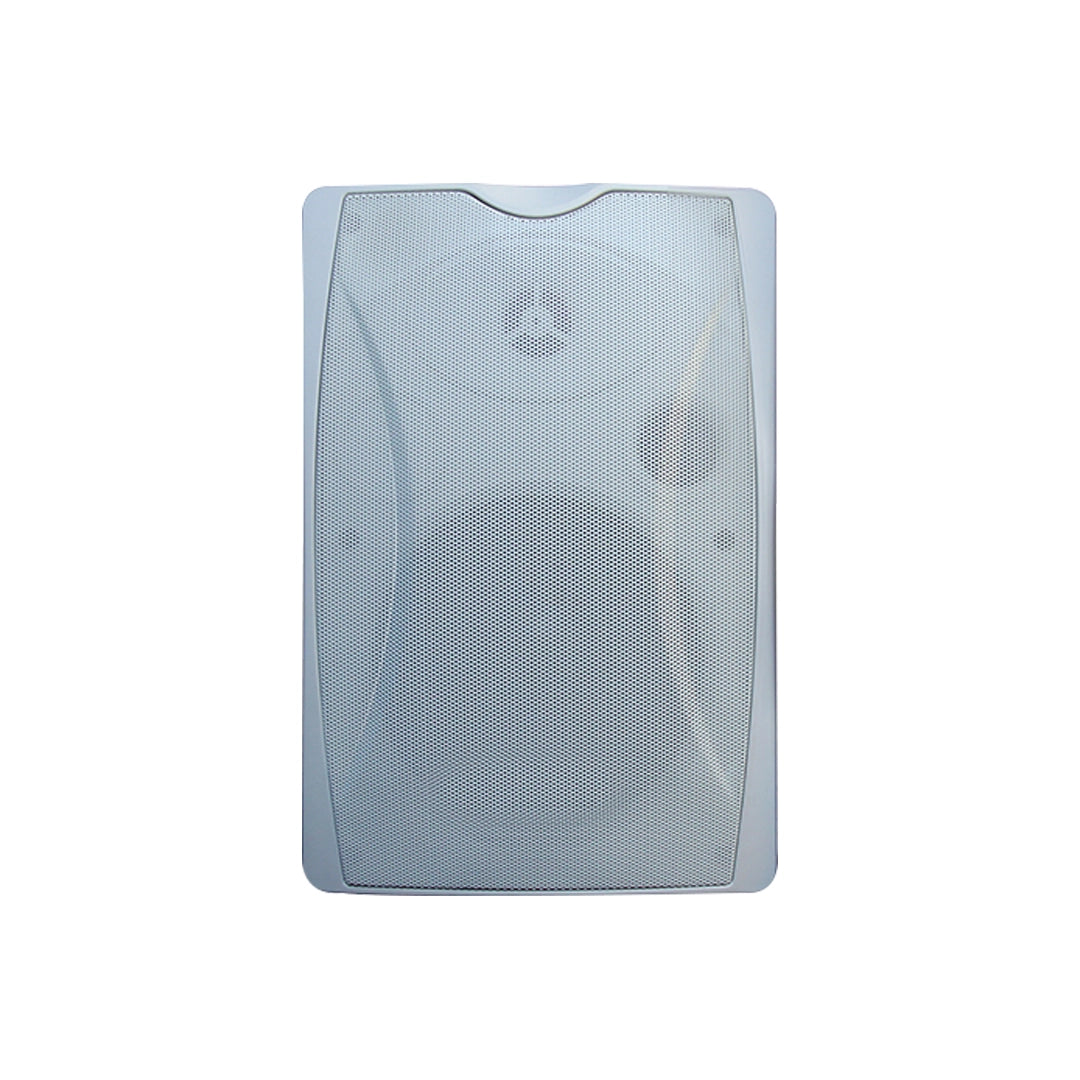

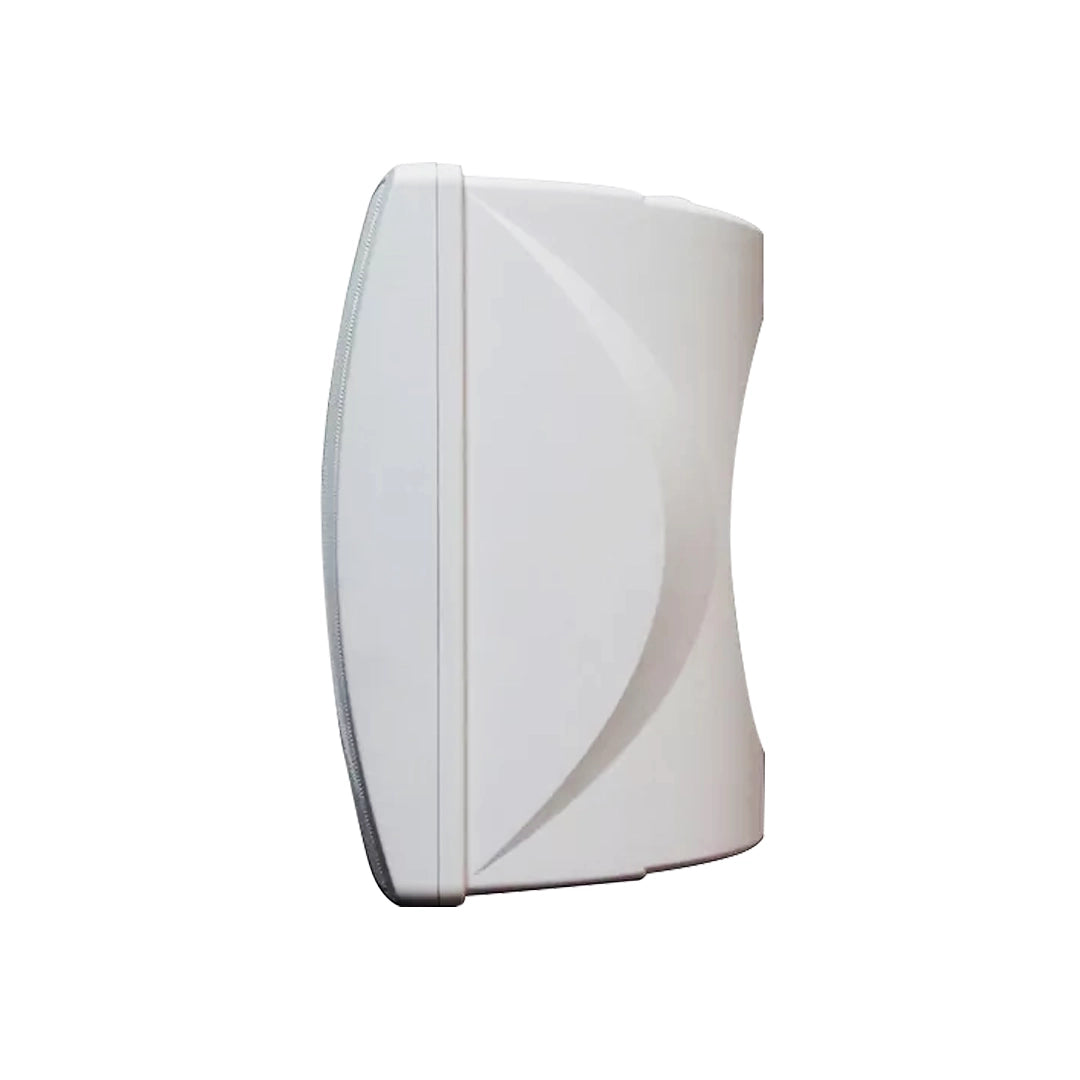

DSP8064 : 40W Wall Mount Speaker with 70V / 100V Line Transformer

DSP8064 : 40W Wall Mount Speaker with 70V / 100V Line Transformer

The DSP8064 Wall Mount Speaker is a high-performance audio solution designed for commercial and industrial sound systems requiring powerful, clear, and evenly distributed audio. Equipped with a built-in 70V / 100V line transformer, it supports long-distance signal transmission and parallel connection of multiple speakers, making it ideal for large installations.

Featuring a dual-driver system (woofer + tweeter) with an inverse-phase acoustic design, the DSP8064 delivers rich bass, clear mids, and bright high frequencies. Its robust construction, combining a fire-retardant ABS enclosure and aluminum metal grille, ensures long-term durability, safety, and aesthetic stability in demanding environments.

Product Features

• 70V / 100V Line Speaker – Integrated transformer for distributed audio systems
• 8Ω Low-Impedance Support – Flexible integration with conventional amplifiers
• Dual Driver System – 6.5" woofer + 1" tweeter for balanced full-range sound
• High Power Output – Rated at 40W for wide-area sound coverage
• Wide Frequency Response – 65 Hz to 20 kHz for music and voice clarity
• Inverse-Phase Acoustic Design – Reduces distortion and enhances sound definition
• Rear Power Adjustment Knob – Easy selection of power taps and input mode
• High Sensitivity – 91 ±2 dB for efficient sound projection
• High Maximum SPL – Up to 107 ±2 dB for demanding environments

The DSP8064 40W Wall Mount Speaker combines powerful audio performance, flexible installation, and industrial-grade durability. With its dual-driver system, wide frequency range, and support for both constant-voltage and low-impedance systems, it is an excellent choice for professional audio installations requiring reliability and high sound quality.
