EAP235-Wall

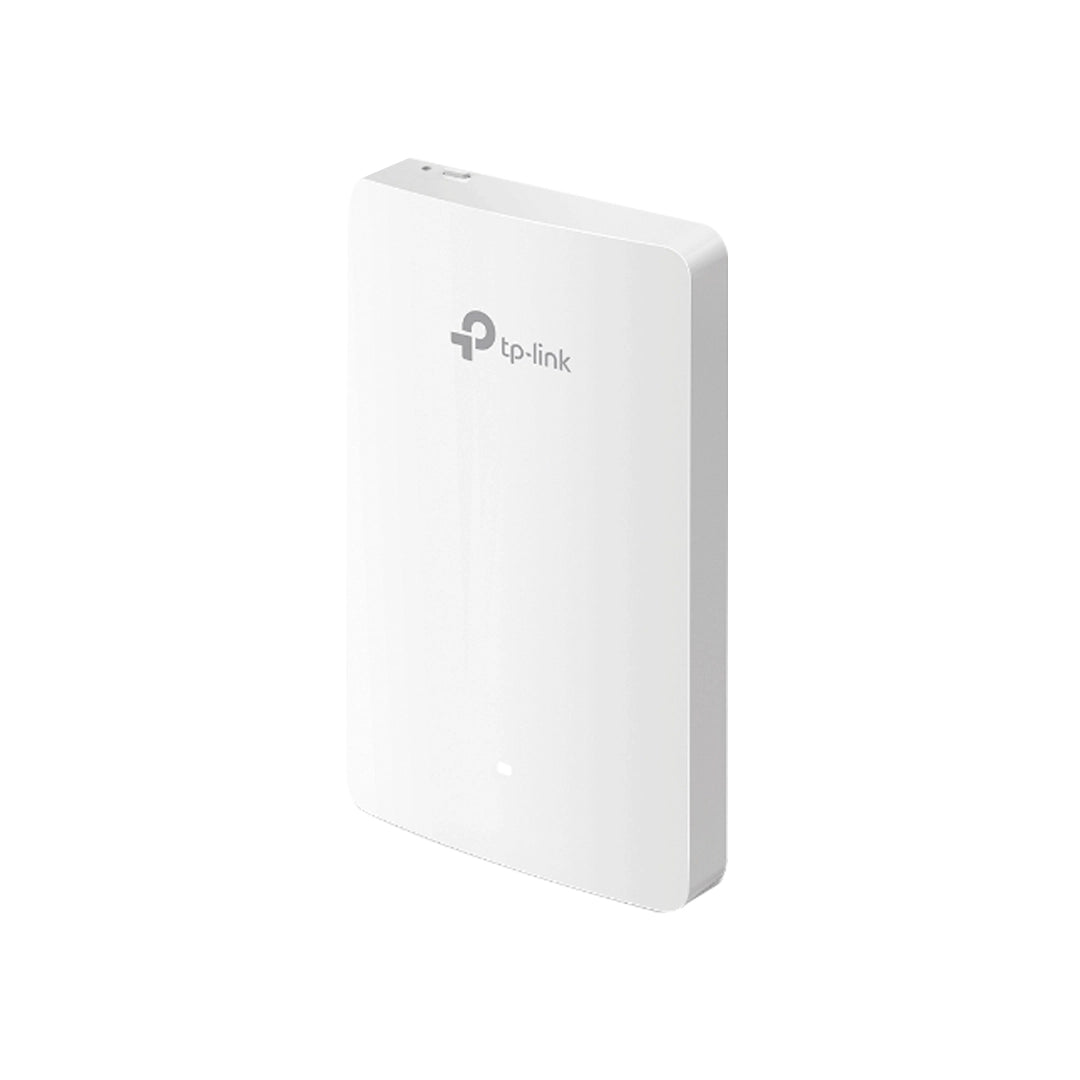

EAP235-Wall – Omada AC1200 MU-MIMO Gigabit Wall Plate Access Point

The EAP235-Wall is a compact AC1200 dual-band wall-plate access point designed for high-density indoor environments such as hotels, hospitals, offices, dormitories, and multi-dwelling units (MDU). With a slim, elegant design and integrated Gigabit switch, it delivers reliable wireless connectivity while providing wired network access directly from the wall.

Powered by 802.11ac MU-MIMO technology, the EAP235-Wall delivers combined wireless speeds of up to 1167 Mbps, offering 300 Mbps on 2.4 GHz and 867 Mbps on 5 GHz. It features four Gigabit Ethernet ports, including one uplink PoE port and one PoE pass-through downlink port, enabling power delivery to IP phones, cameras, or other wired devices.

Fully integrated into the Omada SDN ecosystem, the EAP235-Wall supports Zero-Touch Provisioning, centralized cloud management, and advanced wireless optimization features, making it ideal for large-scale, professionally managed networks.

Product Features

• AC1200 dual-band Wi-Fi with MU-MIMO
• Up to 1167 Mbps total wireless throughput
• 4× Gigabit Ethernet ports (1 uplink + 3 downlink)
• PoE pass-through on one downlink port
• 2×2 MIMO with 4 dBi internal antennas
• 802.3af/at PoE powered
• Ultra-slim wall-plate form factor
• Compatible with US, EU, and 86 mm junction boxes
• Integrated Omada SDN and cloud management

Product Advantages

• Combines Wi-Fi access point and wired switch in one device
• Reduces cabling and external switches in room-based deployments
• Ideal for high-density client environments (200+ clients)
• Advanced RF optimization with MU-MIMO, Band Steering, and Beamforming
• Secure guest access with Captive Portal, VLANs, and 802.1X
• Scalable management via Omada Cloud, Hardware, or Software Controller

Professional Applications

• Hotels and hospitality guest rooms
• Hospitals and healthcare facilities
• Office buildings and conference rooms
• Student housing and dormitories
• Multi-dwelling units (MDU / MTU)
• Enterprise edge access with wired device support

Summary

The EAP235-Wall delivers high-performance AC1200 Wi-Fi, integrated wired connectivity, and centralized cloud management in an elegant wall-mount design, making it an excellent solution for room-based professional Wi-Fi deployments.
