EAP245

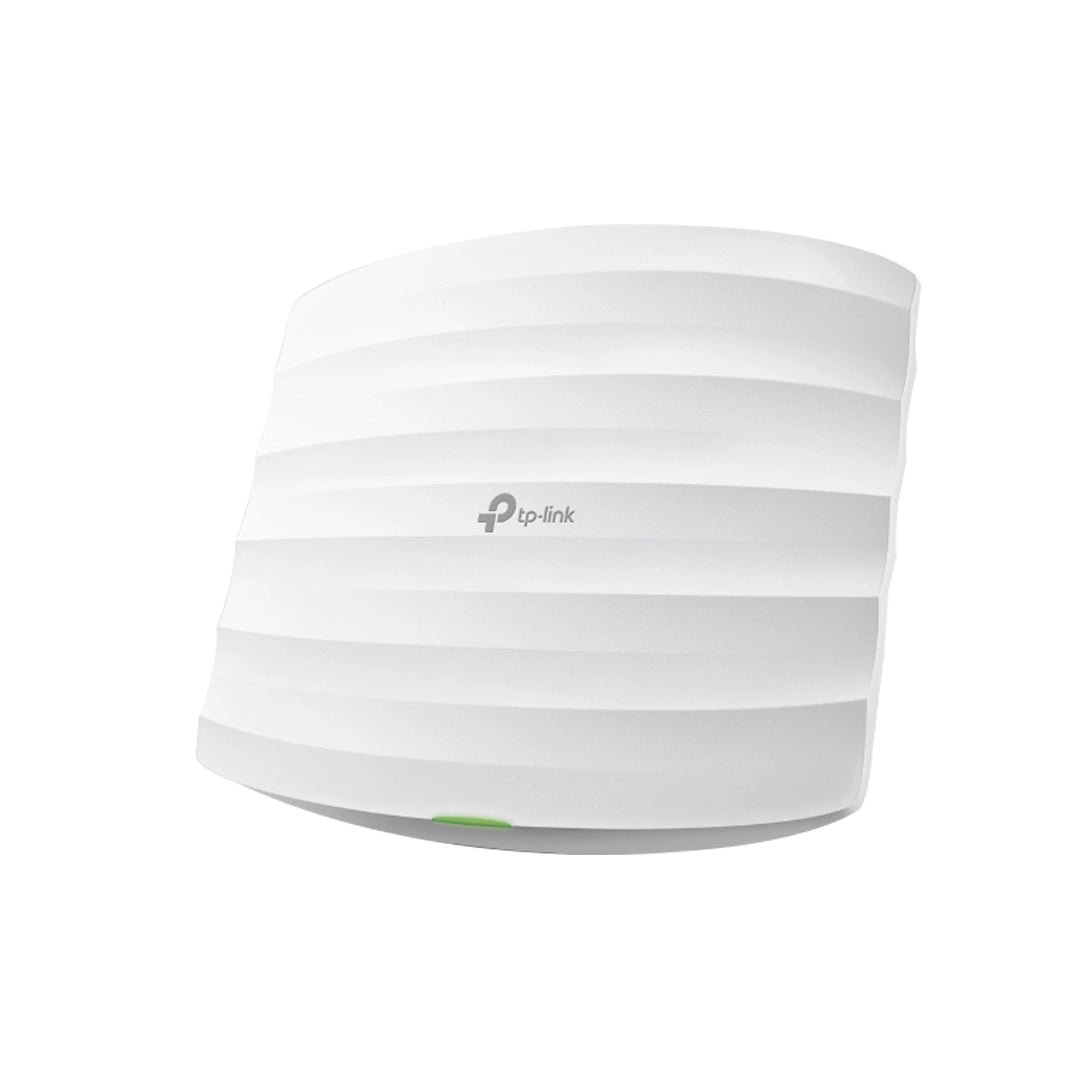

EAP245 – Omada AC1750 Dual-Band Gigabit Ceiling Mount Access Point

The EAP245 is a high-performance AC1750 dual-band ceiling-mount access point engineered for enterprise-grade wireless coverage, high client density, and centralized management. Delivering combined wireless speeds of up to 1700 Mbps, it ensures reliable connectivity for bandwidth-intensive applications such as VoIP, video conferencing, and cloud services.

Featuring 802.11ac Wave 2 MU-MIMO, Band Steering, and Load Balancing, the EAP245 optimizes network efficiency by distributing clients intelligently and prioritizing the faster 5 GHz band whenever possible. Seamless Roaming guarantees uninterrupted voice and video sessions as users move throughout the coverage area.

The EAP245 integrates fully with the Omada Software, Hardware, and Cloud-Based Controllers, enabling centralized configuration, monitoring, and maintenance of large-scale wireless networks. PoE (802.3af/at or 48V Passive PoE) support simplifies installation, making it ideal for professional ceiling or wall-mounted deployments.

Product Features

• AC1750 dual-band ceiling-mount access point
• Up to 1700 Mbps aggregate wireless throughput
• 2.4 GHz: 450 Mbps · 5 GHz: 1300 Mbps
• 802.11ac Wave 2 with MU-MIMO technology
• Seamless Roaming for uninterrupted voice and video
• Band Steering and Load Balancing for high-density environments
• Power over Ethernet support (802.3af/at and 48V Passive PoE)
• Up to 16 SSIDs with VLAN mapping
• Enterprise-grade wireless security and captive portal support

Product Advantages

• Optimized performance for medium to high-density client networks
• Centralized management via Omada Cloud or local controllers
• Flexible power options for simplified installation
• Stable roaming experience across multi-AP deployments
• Proven AC Wave 2 platform for cost-effective enterprise Wi-Fi

Professional Applications

• Corporate offices and enterprise facilities
• Hotels, hospitality, and guest Wi-Fi networks
• Educational institutions and campuses
• Retail stores and shopping centers
• Healthcare and public service environments
• Managed Service Provider (MSP) deployments

Summary

The EAP245 delivers reliable AC1750 performance, seamless roaming, and centralized Omada management, making it a robust and cost-effective solution for professional wireless networks.
