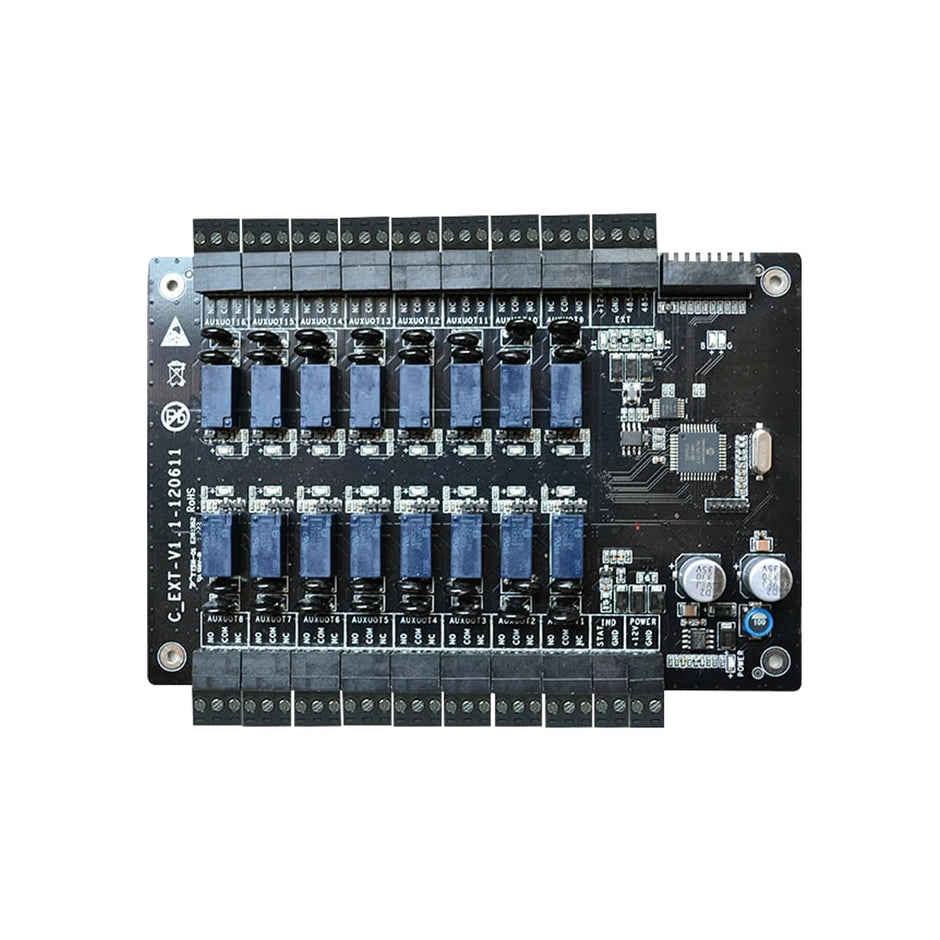

EX16 Floor Elevator Expansion Board

Overview

The ZKTeco EX16 Package A is a professional elevator floor expansion board designed to extend the capabilities of the EC10 main controller. It enables secure and flexible access control for additional floors using fingerprint, RFID, or password credentials, providing scalable management for multi-floor buildings and enterprise environments.

Detailed Product Description

Model: EX16
Type: 16-Floor Elevator Expansion Board

Key Features

• 16-Floor Expansion: Controls up to 16 additional floors when paired with the EC10 controller.
• RS-485 Communication: Reliable data transmission with DIP switch addressing for easy setup.
• Low Power Consumption: Operates on 12 V DC, 3 A (shared with EC10 system power).
• Scalable Configuration: Each EC10 controller supports up to three EX16 boards for a total of 58 floors.
• Compact & Easy Integration: Designed for seamless installation inside elevator control panels or modules.
• Reliable Construction: Factory-tested for full compatibility with ZKTeco elevator control systems.
• Compliant & Certified: Meets RoHS standards for electronic safety and environmental protection.
• Extended Warranty: Includes a 2-year limited hardware warranty for manufacturing defects.

Professional Applications
Ideal for residential, commercial, and industrial buildings requiring scalable and secure elevator access control.
