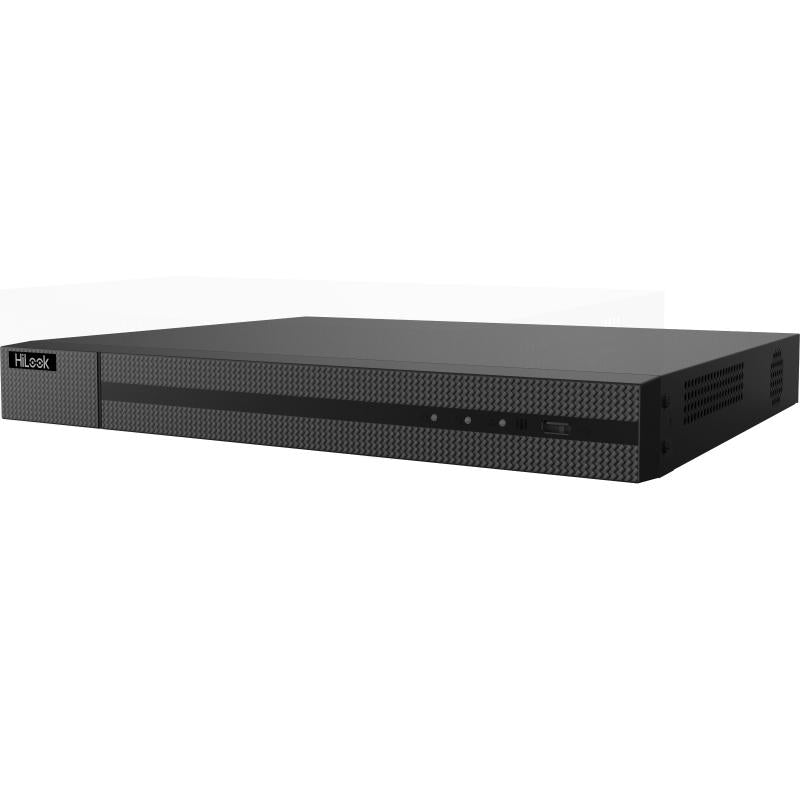

HL-DVR-216U-M2

The DVR-216U-M2 DVR is an advanced digital video recorder designed for high-quality surveillance solutions. This model offers robust features suitable for both residential and commercial security systems, ensuring clear image capture and efficient storage.

Key Features

Video Compression

• H.265 Pro+/H.265 Pro/H.265/H.264+/H.264: This DVR supports multiple video compression standards, allowing for better video quality at reduced file sizes. H.265 Pro+, in particular, improves encoding efficiency and reduces data storage costs.

Video Input Compatibility

• HDTVI/AHD/CVI/CVBS/IP: The device is compatible with a wide range of video input formats, making it versatile for integrating with existing security systems. It supports traditional analog signals as well as newer network/IP-based video streams (supporting up to 24-ch IP camera inputs in total, and up to 32-ch when enhanced IP mode is enabled).

Audio Capabilities

• Audio via Coaxial Cable: This feature allows audio transmission over the same cable used for video, simplifying installation and reducing the need for additional cabling.

Signal Transmission

• Long distance support: Supports high-resolution analog and HDTVI signals (such as up to 8 MP@8 fps or 5 MP encoding capabilities and various lower resolutions at higher frame rates), ensuring reliable video feeds over long distances without significant quality degradation.

Storage

• Up to 10 TB Capacity per HDD: The DVR supports hard disk drives with a maximum capacity of 10 TB across 2 SATA interfaces, allowing for extensive video storage, which is critical for maintaining archives over long periods or in high-volume recording environments.

16-ch 5 MP 1U H.265 DVR Overview

This version of the DVR offers support for high-resolution video streams and up to 16 analog channels, making it ideal for applications where image clarity is paramount.

Key Features

• High Resolution Capability: Supports up to 8 MP resolution encoding on main streams, providing ultra-high-definition video quality that captures finer details, which is critical for identifying faces and other important scene elements.

• Similar Compression and Input Features: The 16-ch DVR shares the same robust video compression and multi-signal input compatibility features, ensuring efficiency and flexibility in any surveillance setup.

Both the DVR-216U-M2 16-ch digital video recorder and related models are equipped with cutting-edge technology—including Motion Detection 2.0 (deep learning-based human and vehicle target classification to minimize false alarms)—to deliver superior video quality and smart security solutions. Whether for a small business or a larger enterprise, these DVRs provide reliable, high-performance options that align with modern surveillance needs.
