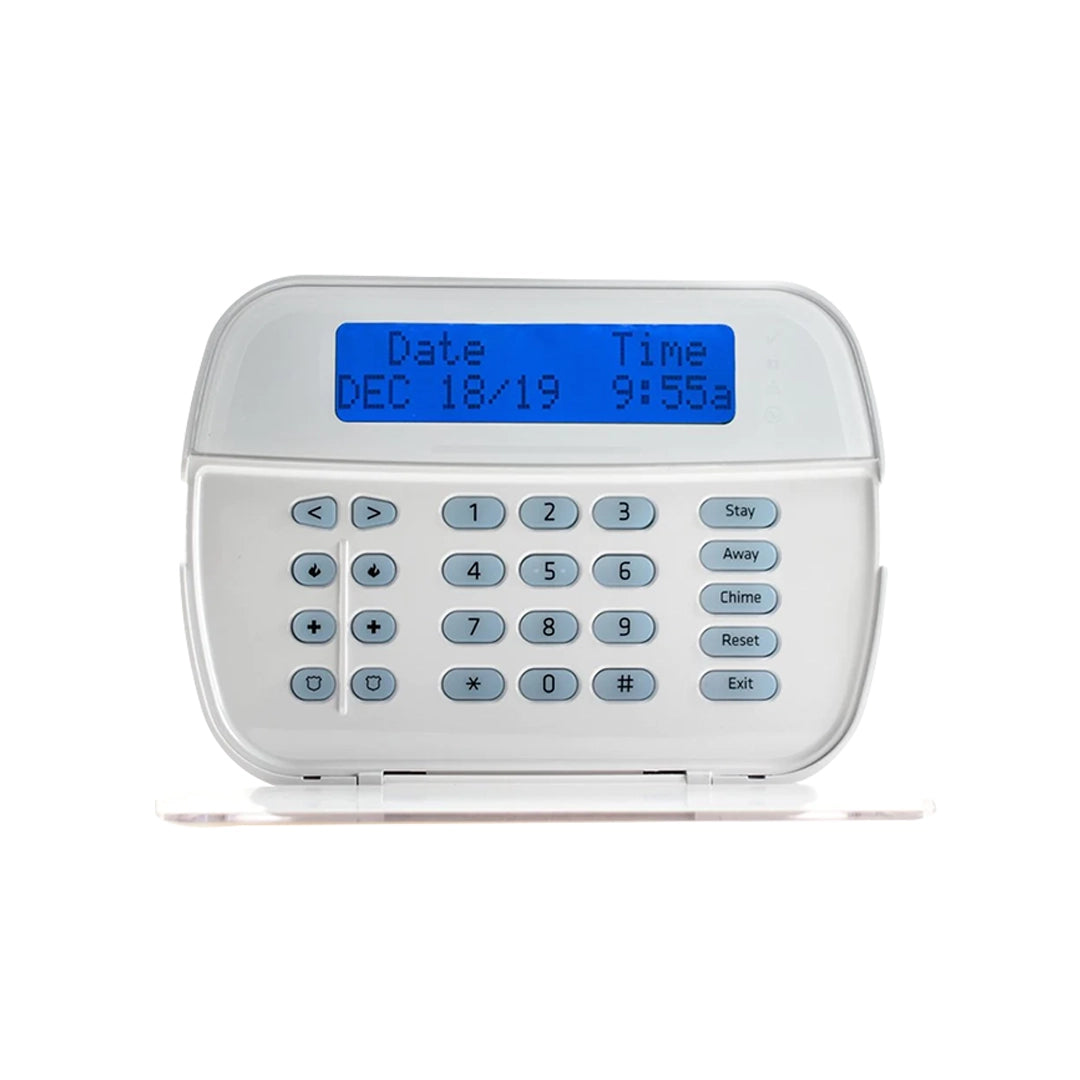

HS2LCDRF9ENG-N — Hardwired Full Message LCD Keypad with Optional PowerG Transceiver

––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––

Overview

The HS2LCDRF9ENG-N is a full-message LCD hardwired keypad designed for PowerSeries Pro and PowerSeries Neo systems. Combining elegant design with PowerG wireless capability, it delivers an intuitive interface, advanced functionality, and flexible installation options. Ideal for residential, commercial, and industrial applications, it enhances security control with clear display communication and advanced connectivity options.

––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––

Detailed Product Description

Model: HS2LCDRF9ENG-N
Type: Hardwired Full Message LCD Keypad with PowerG Transceiver

––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––

Key Features

• Full-message 2x16 character LCD display with blue backlight for clear visibility.
• Optional built-in PowerG transceiver for seamless integration with wireless peripherals.
• Five programmable function keys for fast access to system operations.
• Three dedicated panic keys for emergency triggering.
• Programmable input/output terminal for zone or output assignment.
• Multiple door chime tones to identify zones by sound.
• Adjustable backlight and keypad buzzer for user comfort.
• 8 partition support with global system status indication.
• Quick exit feature allows users to leave without disarming the system.
• Prox tag compatibility (optional) for convenient arming and disarming.
• Integrated temperature sensor to minimize false alarms during environmental changes.
• Surface or single-gang box mounting with easy-to-install hinge design.
• Remote firmware upgradable via PowerSeries Pro or Neo systems.
• Front and rear tamper detection for enhanced protection.
• 128-bit AES encryption ensures strong data security.
• TDMA synchronized communication prevents message collisions.
• Adaptive Transmission Power extends battery life in wireless operation.
• High transmission range up to 2 km (2187 yards) line-of-sight reliability.
• Multichannel Frequency Hopping Spread Spectrum (FHSS) minimizes interference.

––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––

Technical Specifications

• Dimensions: 168 mm × 122 mm × 20 mm (6 5/8” × 4 13/16” × 13/16”)
• LCD Viewable Area: 99 mm × 24 mm (3 9/10” × 15/16”)
• Voltage: 12 VDC nominal
• Current Draw: 125 mA (max), 60 mA (typical)
• Operating Environment: -10°C to 55°C (14°F to 131°F)
• Relative Humidity: 5% to 93%
• Certifications: FCC/IC, UL/ULC, SIA CP-01, CSFM

––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––

Compatibility

The HS2LCDRF9ENG-N is compatible with all PowerSeries Neo and PowerSeries Pro control panels, including:
HS3032, HS3128, and HS3248.

––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––

Professional Applications

Designed for modern hybrid installations, this keypad is perfect for security integrators seeking a dependable, flexible interface with both wired and wireless communication options. It suits corporate offices, retail chains, residential complexes, and industrial facilities, offering enhanced usability, scalability, and reliability for PowerSeries Pro and Neo environments.
