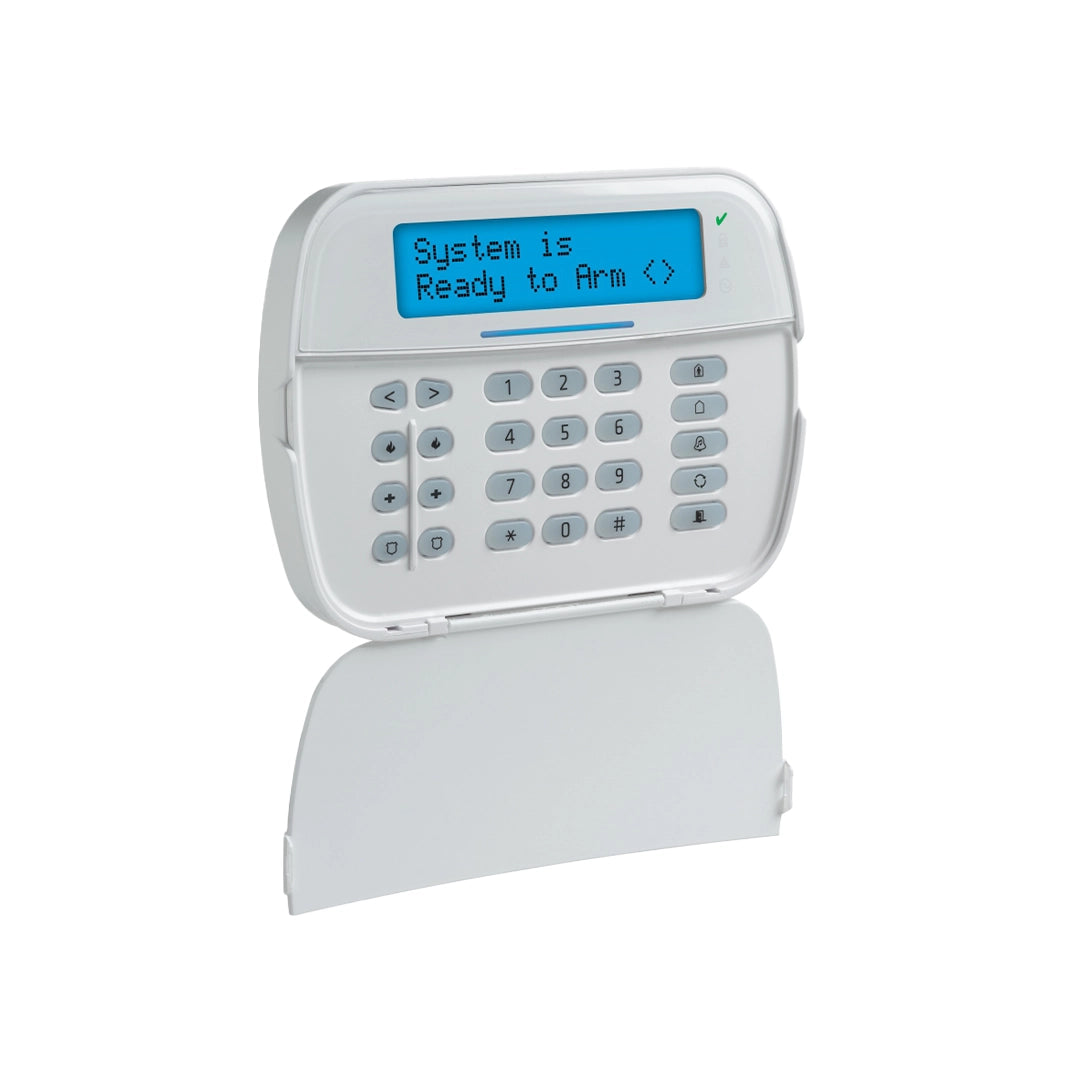

HS2LCDWF9ENG-N

PowerSeries Neo is Security Redefined

PowerSeries Neo by DSC combines a modular hardwired system with various wireless devices, offering a comprehensive hybrid security system. It uses advanced PowerG technology and includes alarm verification and remote service software, suitable for residential and commercial use.

PowerSeries Neo Hardwired Keypads

PowerSeries Neo keypads are the main interface for this new hybrid system. They have a slim design and an optional PowerG transceiver for flexible wireless setup. Hardwired keypads offer a clean look appealing to users. Installers like them for easy programming and simple installation.

Flexibility

PowerSeries Neo hardwired keypads have three display options: full message 2x16 character LCD and ICON. They include a programmable input/output terminal, adjustable backlit keys, and five programmable keys for easy system activation. A door chime feature identifies zones with different sounds. The integrated temperature sensor activates below 43° F and prevents false alarms during small temperature changes.

Easy To Use

PowerSeries Neo hardwired keypads have five programmable keys for quick system function activation. The quick exit function lets users leave without disarming the system. Prox versions allow arm/disarm with a prox tag. They feature 128 zones, support six languages, global partition status, and 32-character programmable

Wireless Convenience

Offering identical features as their hardwired equivalents, RF versions of the keypads support up to 128 wireless zones and 32 wireless keys (on HS2128 version) without taking up a wireless zone slot.

Key Features

• Available in three display options: Full message 2x16 character LCD, ICON
• Blue display on LCD & ICON versions
• Large, white backlit keypad buttons
• I/O for either zone or programmable output
• 5 programmable function keys
• 3 Separate panic keys
• Adjustable backlight and keypad buzzer
• Multiple door chimes per zone
• 8 Partition support
• Front and rear mount tamper
• Prox. Tag (Optional)
• With built in PowerG Transceiver (optional)
• Wire channel
• Easy-to-install mounting hinge
• Surface or single-gang box mount
• Remote firmware upgradable
• Compatible with PowerSeries Neo systems
• Multichannel, Frequency Hopping Spread Spectrum technology - to overcome frequency blocking and interference
• Adaptive Transmission Power - for battery life preservation
• High transmission ranges - for reliable communication within up to 2km/2187 yards line-of-sight
• TDMA synchronized communication technology - to prevent message collisions
• 128 bit AES encryption - high level protection against analysis tools and digital attacks
