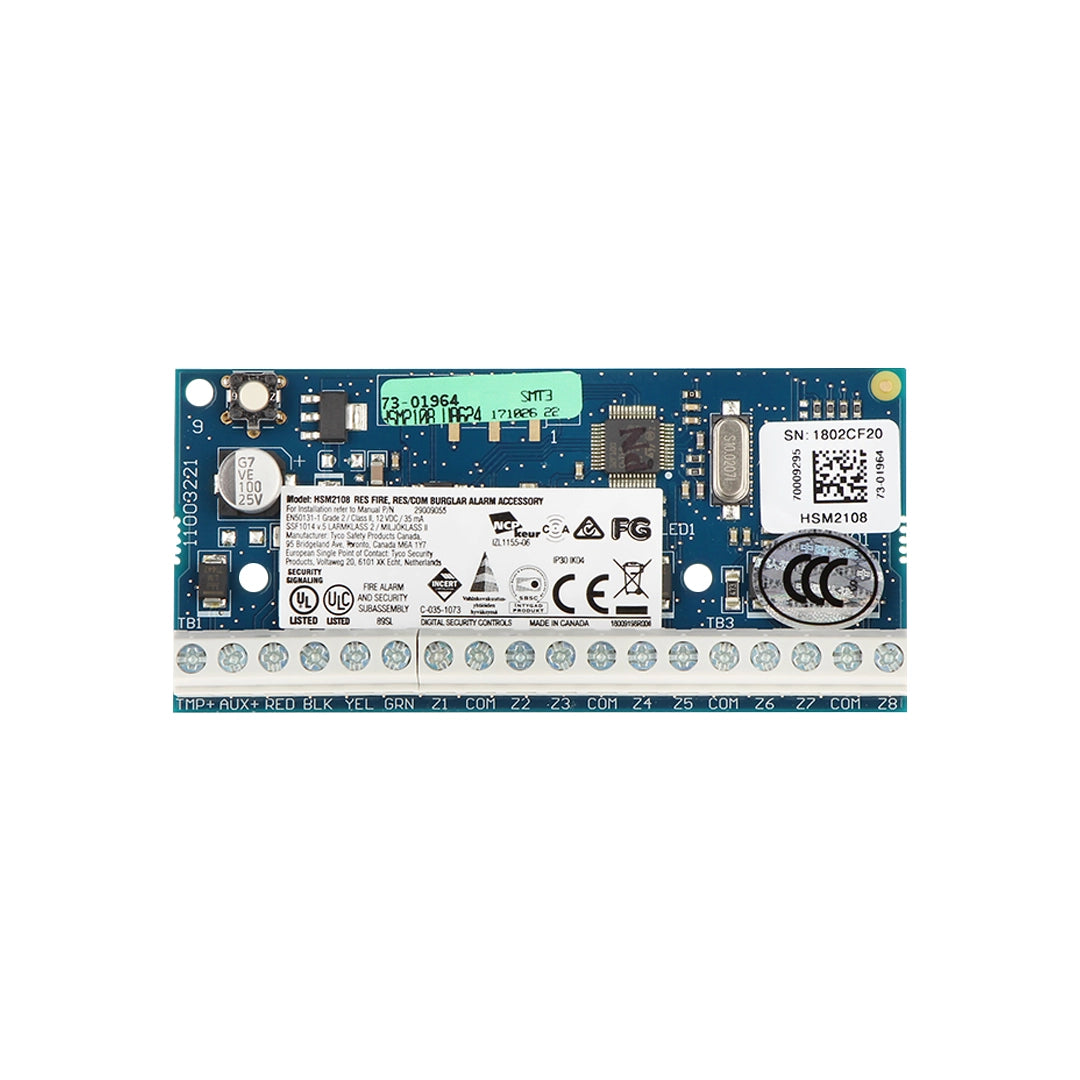

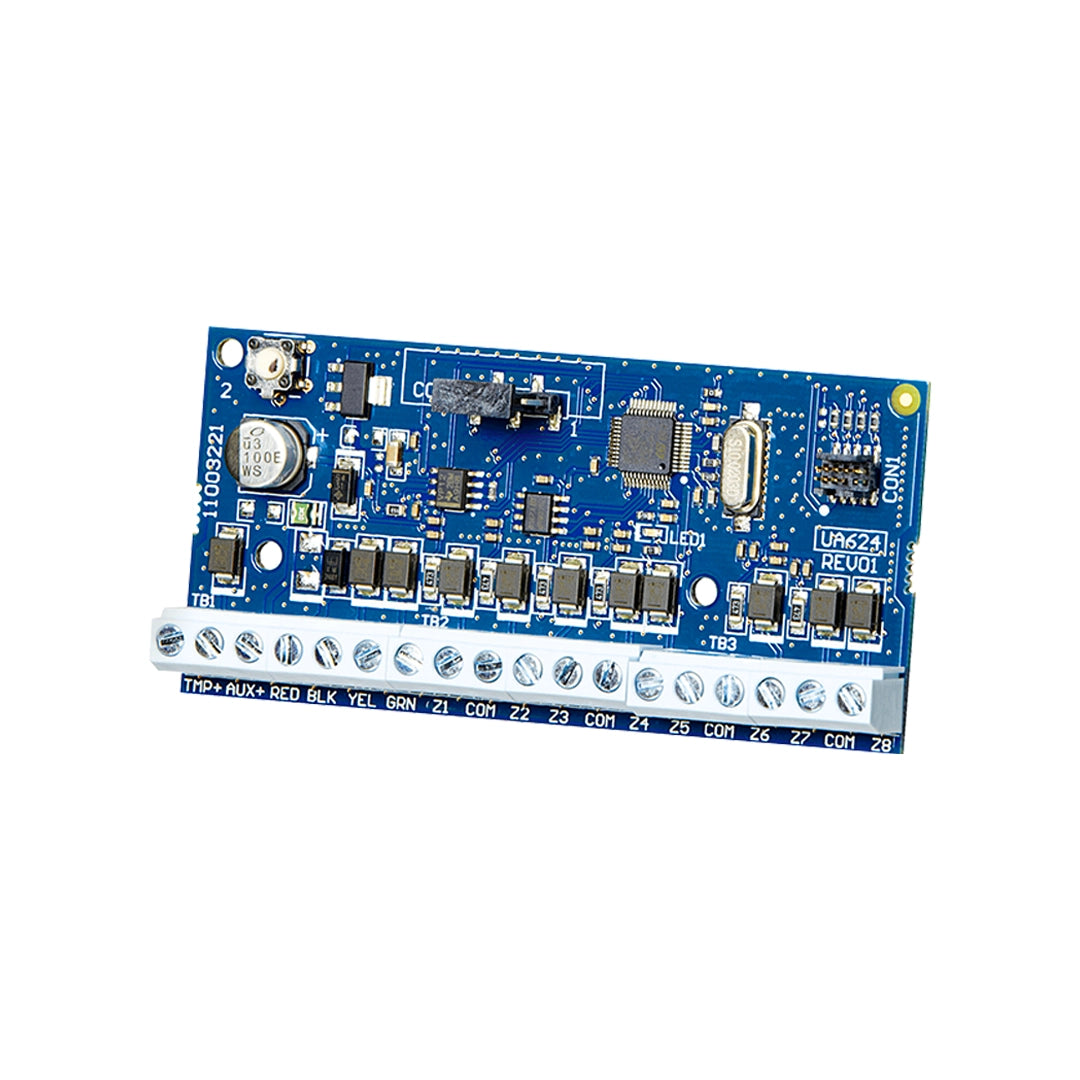

HSM2108 – 8-Zone Wired Expansion Module

Overview

The DSC HSM2108 is an 8-zone wired expansion module designed for use with PowerSeries NEO and PRO panels. It allows installers to easily expand the system’s capacity, providing additional wired zone inputs for greater flexibility in security system design.

Key Features

• 8-Zone Expansion: Adds up to 8 additional wired zones to the main control panel, enhancing system scalability.
• Flexible Configuration: Supports endless, single-ended, and double-ended zone loops using 5.6kΩ resistors.
• Multiple Module Support: Connect up to 15 expansion modules per system for extensive installations.
• Secure Bus Communication: Uses a 4-wire Corbus connection to communicate with the main control panel.
• Tamper Protection: Includes an anti-tamper contact input to detect unauthorized enclosure access.
• Compact Design: Module dimensions of 45 × 92 mm for easy integration in existing enclosures.
• Reliable Operation: Operates on 12 VDC nominal voltage with 130 mA maximum current consumption, supporting stable system performance.
• Durable and Safe: Designed for indoor installations, operating from –10°C to +55°C, and 5–93% humidity for long-term reliability.
• Flexible Installation Options: Can be mounted inside various DSC metal enclosures such as PC5003C, PC4003C, or UC1, ensuring professional-grade installation and protection.

Professional Applications

Ideal for commercial, residential, and industrial security systems requiring additional hardwired zones, the HSM2108 delivers scalable, secure, and professional-grade system expansion.
