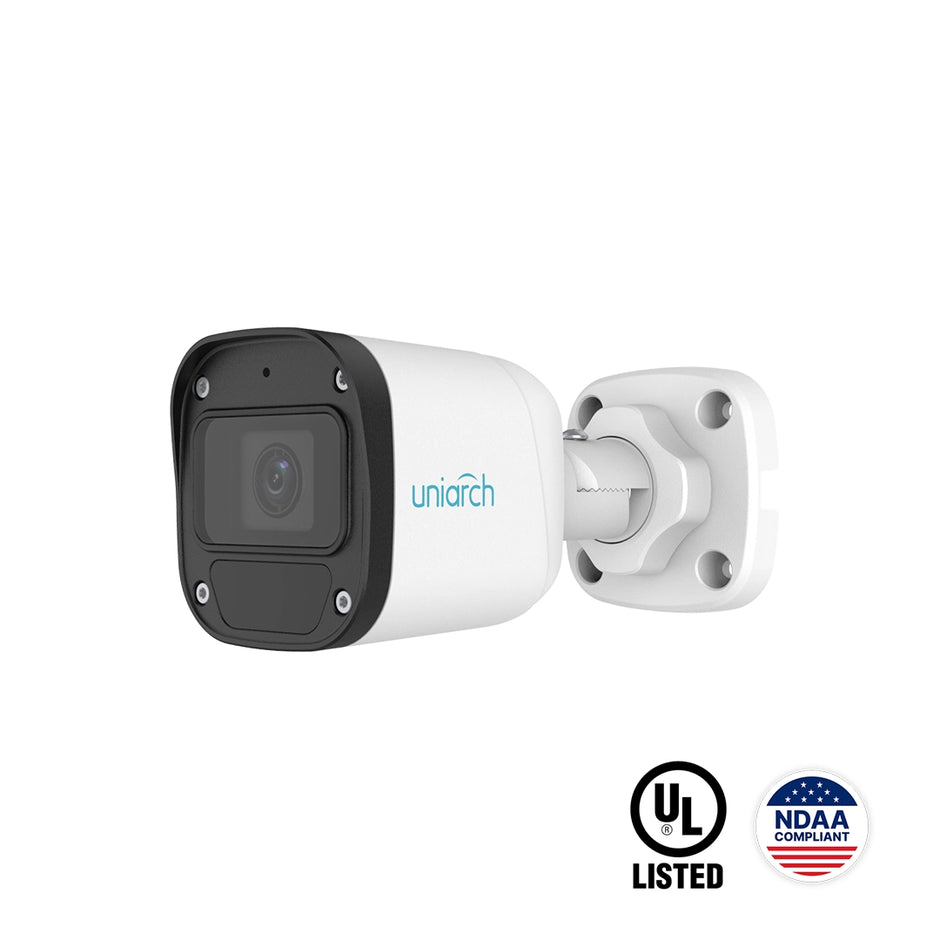

IPC-B122-PF28 - Network Bullet Camera – 2MP Full HD Outdoor Security Camera

Overview

The IPC-B122-PF28 is a high-performance 2MP network bullet camera engineered for professional surveillance applications. With Smart IR technology up to 30 meters (98 ft), Ultra 265/H.265/H.264 compression, and a 1/2.9" progressive scan CMOS sensor, it ensures clear and detailed video day and night. Its IP67-rated weatherproof housing and wide temperature tolerance (-22°F to 140°F) make it ideal for reliable outdoor operation in any environment.

Product Features

• High-Resolution Imaging: Equipped with a 1/2.9" progressive scan CMOS sensor, delivering Full HD 1080P (1920×1080) video for sharp image detail.

• 2.8mm Fixed Lens: Provides a 107.8° horizontal field of view, ideal for wide-area coverage and efficient scene monitoring.

• Day/Night Functionality: Built-in IR-cut filter with auto switch (ICR) ensures accurate color reproduction during the day and superior visibility at night.

• Smart IR Illumination: Features infrared lighting up to 30 meters (98 ft) with intelligent brightness control for balanced nighttime imaging.

• Optical Glass Window: Uses high-transmittance optical glass with an IR anti-reflection coating to enhance infrared performance and image brightness.

• Low-Light Sensitivity: Operates at 0.02 Lux (F2.1, AGC ON) and 0 Lux with IR on, providing reliable image capture even in near darkness.

• Digital Noise Reduction: Advanced 2D/3D DNR effectively reduces image noise, delivering clearer, more stable footage in low-light conditions.

• Wide Dynamic Range (DWDR): Enhances image details in high-contrast lighting environments by balancing bright and dark areas.

• Digital Defog: Automatically adjusts image contrast to improve visibility in foggy or smoky conditions.

• High Compression Efficiency: Supports Ultra 265, H.265, and H.264 formats for optimized bandwidth and storage management.

• Region of Interest (ROI): Allows prioritized encoding in up to 2 selected areas, ensuring efficient video streaming.

• Video Performance: Provides up to 25fps at 1080P for the main stream and 25fps at 4CIF for the sub-stream.

• Backlight Compensation (BLC) and Highlight Compensation (HLC): Ensure consistent visibility under uneven lighting.

• Privacy and Motion Detection: Supports up to 4 privacy mask zones and 4 motion detection areas for flexible security control.

• OSD Display: Customizable on-screen display (up to 4 OSDs) for convenient identification and monitoring.

• Network Protocols: Compatible with IPv4, TCP/IP, UDP, DHCP, RTSP, HTTP, RTMP, and more for wide interoperability.

• ONVIF Compatibility: Fully compliant with ONVIF Profile S and Profile T, enabling seamless integration with NVRs and third-party systems.

• Power Supply Options: Operates with DC 12V ±25% or PoE, consuming a maximum of 3.5W, simplifying installation and cabling.

• Rugged Design: IP67-rated enclosure ensures full protection against dust and rain for durable outdoor use.

• Flexible Mounting: Adjustable angles with Pan: 0°~360°, Tilt: 0°~90°, and Rotate: 0°~360° for precise positioning.

• Wide Temperature Range: Functions reliably between -30°C to 60°C (-22°F to 140°F) with up to 95% humidity (non-condensing).

• Compact Build: Dimensions 142.1 × 62.4 × 65.2 mm (5.6” × 2.5” × 2.6”), weight 0.19 kg (0.42 lb), suitable for discreet installation in outdoor or indoor settings.
