IPC322LR3-VSPF28-D

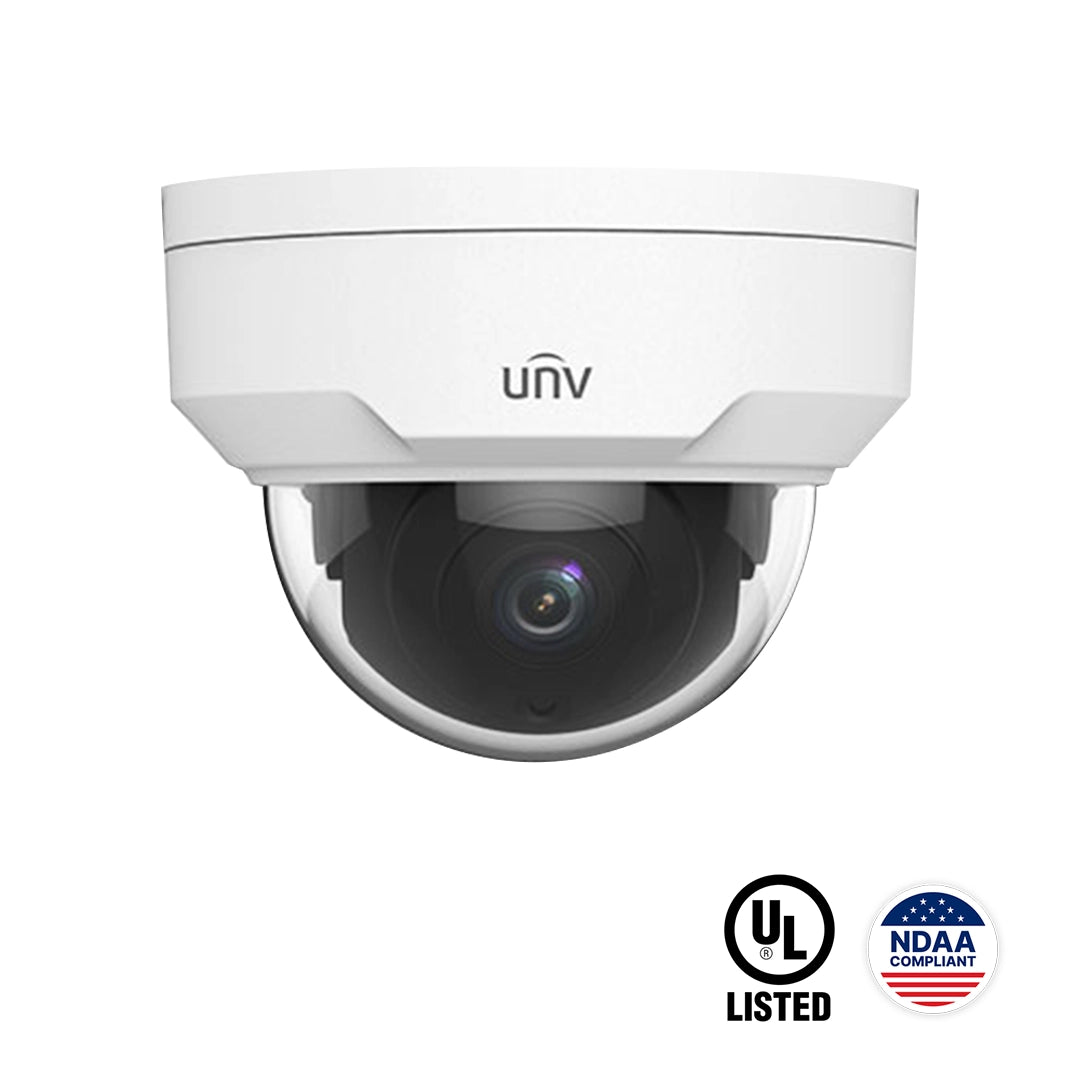

IPC322LR3-VSPF28-D — 2MP Vandal-Resistant IR Fixed Dome Network Camera with PoE

The IPC322LR3-VSPF28-D is a rugged 2 MP IP dome camera engineered for high-risk and outdoor environments where durability and consistent image quality are critical. Equipped with a 1/2.7" CMOS sensor, Smart IR night vision, IK10 vandal resistance, and IP67 protection, this camera delivers dependable Full HD surveillance while supporting efficient compression and seamless ONVIF integration.

Product Features

• 2 MP Full HD resolution (1920×1080) at up to 30 fps for clear and smooth video monitoring
• 1/2.7" progressive scan CMOS sensor with low-light sensitivity down to 0.02 Lux, and 0 Lux with IR
• Fixed 2.8 mm lens (F2.0) providing a wide 112.7° horizontal field of view
• Smart IR illumination up to 30 m (98 ft) with automatic IR control for balanced night images
• Ultra 265, H.265, H.264, and MJPEG compression to reduce bandwidth and storage requirements
• Digital Wide Dynamic Range (DWDR) improves visibility in uneven lighting conditions
• 2D/3D Digital Noise Reduction (DNR) for cleaner images in low-light environments
• Region of Interest (ROI) support to prioritize critical image areas
• Day/Night operation with IR-cut filter (ICR) for accurate color reproduction during daytime
• 2-Axis mechanical adjustment for flexible installation and precise alignment
• IK10 vandal-resistant housing designed to withstand physical impact
• IP67-rated enclosure suitable for harsh outdoor environments
• PoE (IEEE 802.3af) and 12 V DC power support with wide voltage tolerance (±25%)

Product Advantages

• Ideal for vandal-prone locations requiring reinforced dome protection
• Efficient video compression lowers long-term storage and network costs
• Smart IR and DNR enhance nighttime image clarity without overexposure
• Wide operating temperature range supports reliable performance in extreme climates
• ONVIF Profile S and T compatibility ensures interoperability with professional NVRs and VMS platforms

Professional Applications

• Retail stores, shopping malls, and storefront exteriors
• Parking facilities, elevators, and public access areas
• Schools, hospitals, and transportation hubs
• Industrial sites requiring vandal-resistant surveillance
• Commercial IP CCTV systems using PoE and ONVIF standards

Summary

The IPC322LR3-VSPF28-D is a compact yet highly durable 2 MP IP dome camera combining Smart IR night vision, efficient compression, and IK10 vandal resistance — making it a reliable choice for professional indoor and outdoor security deployments.
