IPC3612LB-ADF28K-G-NB

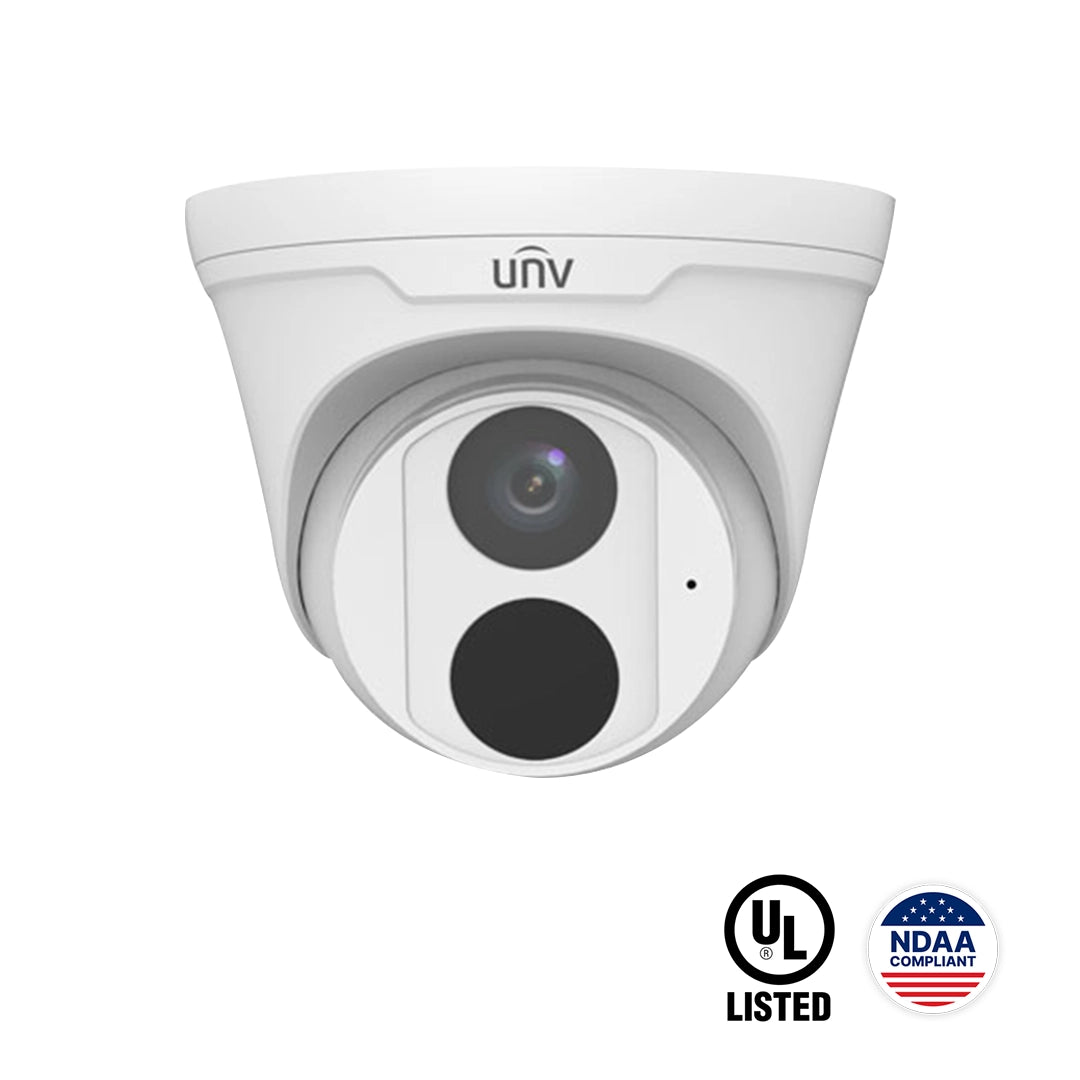

IPC3612LB-ADF28K-G-NB — 2MP HD IR Fixed Eyeball Network Camera with PoE & Built-in Mic

The IPC3612LB-ADF28K-G-NB is a professional 2 MP IP eyeball camera designed for high-reliability video surveillance in demanding environments. Featuring a 1/2.7" CMOS sensor, true 120 dB WDR, Smart IR night vision, and PoE support, this camera delivers consistent image clarity in both indoor and outdoor installations while offering advanced video optimization and flexible mounting.

Product Features

• 2 MP Full HD resolution (1920×1080) at up to 30 fps, delivering sharp and fluid video streams for professional monitoring
• 1/2.7" progressive scan CMOS sensor with excellent low-light performance down to 0.01 Lux, and 0 Lux with IR
• True 120 dB Wide Dynamic Range (WDR) ensures clear imaging in scenes with strong backlight or high contrast
• Fixed 2.8 mm lens providing a wide 112.9° horizontal field of view, ideal for wide-area coverage
• Smart IR illumination up to 30 m (98 ft) with automatic IR control for balanced night images
• Ultra 265, H.265, H.264, and MJPEG compression for optimized bandwidth usage and reduced storage costs
• 9:16 Corridor Mode support, optimized for vertical scenes such as hallways and staircases
• Built-in microphone for synchronized audio and video recording
• Edge storage via Micro SD card up to 128 GB, supporting ANR and NAS storage options
• Advanced image processing including 2D/3D DNR, BLC, HLC, Digital Defog, and Smart IR
• 3-Axis mechanical adjustment (Pan, Tilt, Rotate) for precise camera alignment during installation
• IP67-rated housing with metal and plastic construction for reliable outdoor operation
• PoE (IEEE 802.3af) and 12 V DC power support for flexible deployment

Advantages

• True WDR performance for challenging lighting environments such as entrances and storefronts
• Corridor Mode and ROI functions enhance image efficiency for professional surveillance layouts
• Built-in audio and local storage reduce the need for external accessories
• Advanced security protocols including HTTPS, TLS 1.2, ONVIF authentication, and strong password enforcement
• Full ONVIF Profile S, G, and T compatibility, ensuring seamless integration with professional NVRs and VMS platforms

Professional Applications

• Commercial buildings, offices, and corporate facilities
• Retail stores and shopping centers with variable lighting conditions
• Residential complexes and perimeter monitoring
• Hallways, stairwells, and elevator lobbies using 9:16 Corridor Mode
• Professional IP surveillance systems requiring PoE, ONVIF, and edge storage support

Summary

The IPC3612LB-ADF28K-G-NB is a robust, feature-rich 2 MP IP eyeball camera offering true WDR, Smart IR night vision, audio recording, and professional-grade network security — making it an excellent choice for modern IP surveillance installations.
