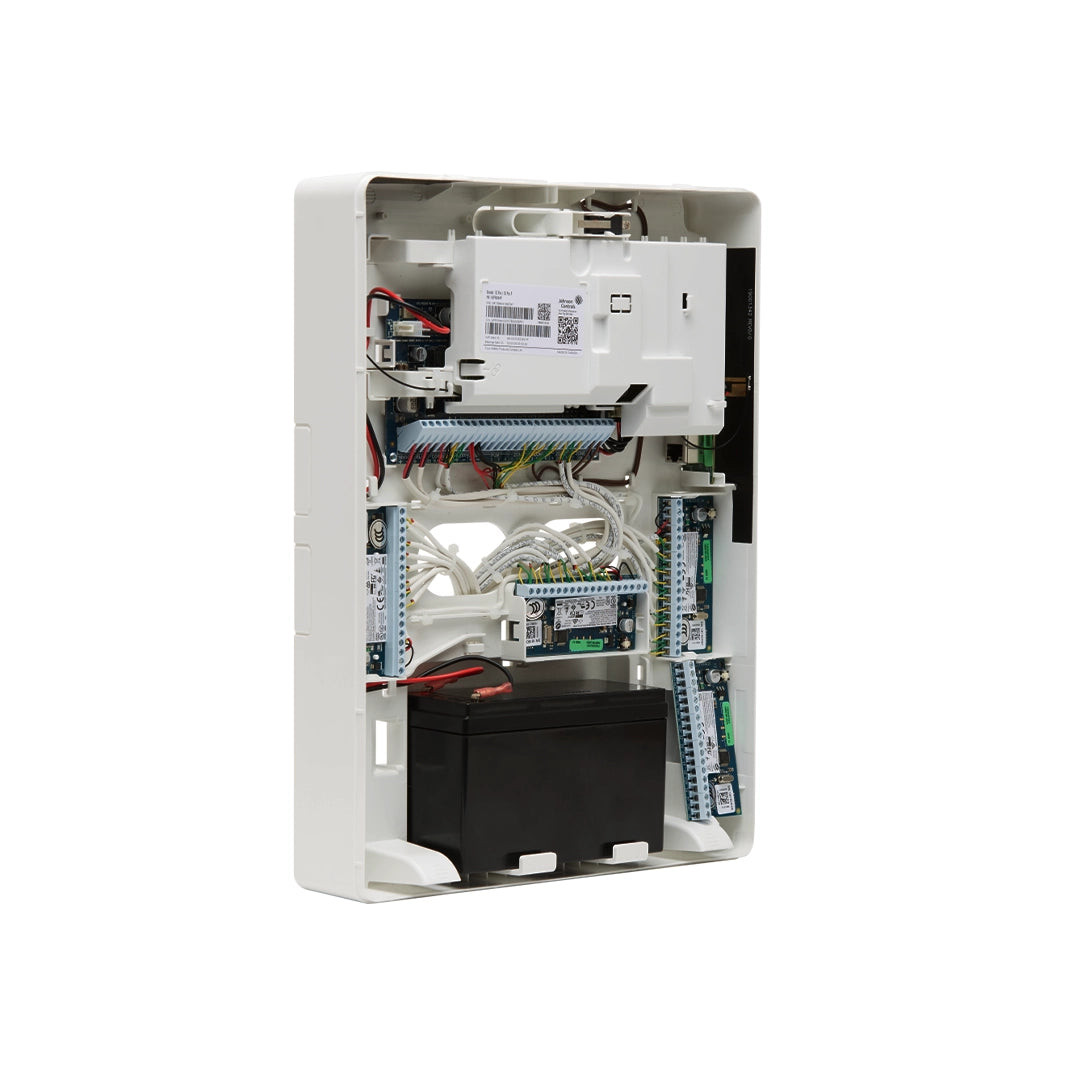

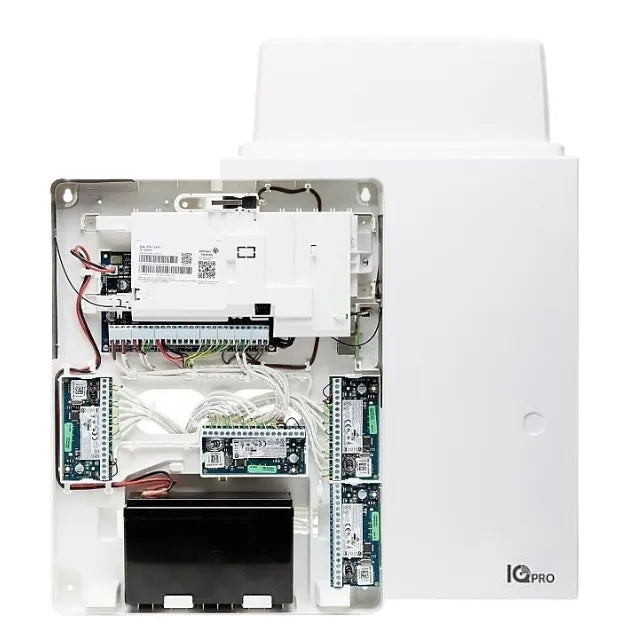

IQPR019P – IQ Pro Panel, Plastic Enclosure (AT&T)

Product Overview

The IQPR019P IQ Pro Panel combines advanced features from both the IQ Panel 4 and PowerSeries NEO platforms into one integrated system. Designed for professional installations, this hybrid control panel supports both wired and wireless configurations with secure communication options through AT&T LTE, Wi-Fi, Ethernet, and Bluetooth LE.

Key Features

• Hybrid System Integration: Merges IQ Panel 4 and PowerSeries NEO capabilities into one unified solution.
• Flexible Zone Expansion: 8 wired zones on board, expandable up to 128 zones (wired, wireless, or MX addressable).
• PowerG Wireless Technology: Operates on 915 MHz encrypted two-way communication, ensuring long-range, reliable performance.
• Multi-Path Communication: Includes LTE (AT&T), Wi-Fi, Ethernet, and Z-Wave connectivity for redundancy and system stability.
• Advanced User Management: Supports up to 1,000 users and 8 partitions, allowing for detailed access control and monitoring.
• Installer-Friendly Setup: Compatible with the IQ Installer App, available via the App Store and Google Play.
• System Expandability: Works with HSM2108 (zone expansion), HSM2208/2204 (PGM expansion), HSM2300 (power supply), and HSM3105 (MX addressable interface) modules.
• High-Performance Processing: Equipped with a Qualcomm SnapDragon 8-core processor and 16 GB NAND Flash for efficient system operation.
• Certified Reliability: Complies with UL, ULC, FCC, and IC safety and performance standards.

Connectivity and Communication

• Zone Configuration: Up to 128 fully supervised zones (wired, wireless, or addressable).
• Addressable Loops: Supports up to 124 MX addressable devices using the HSM3105 module.
• Wireless Frequency: PowerG radio modem operates in the 912–919 MHz band.
• Wireless Keys: Supports up to 32 remote keys and 120 panic pendants.
• Programmable Outputs: 4 onboard PGMs; expandable up to 128 low-current and 16 high-current PGMs.
• Communication Support: Dual path via Wi-Fi/Ethernet and AT&T LTE.

Power and Performance

• Primary Power Supply: 120 VAC, 60 Hz, 1.2 A (HS40WPSA & HS40WPSNA models).
• Additional Power Supplies: Up to four additional units (HSM2300 or HSM2204).
• Battery: Sealed, rechargeable lead-acid type.
• Panel Current Draw: 120 mA nominal.

System Management and Supervision

• Supported Keypads: Up to 16 hardwired and 5 wireless keypads (IQ Remote PowerG supported).
• System Monitoring: Supervision of AC power, zone status, communication, RF jamming, and battery levels.
• Remote Services: Compatible with Alarm.com for interactive cloud monitoring and control.
• Programming: Local configuration available via smartphone when connected over Wi-Fi.
• Event History: Logs and stores up to 200 system events.

Physical and Environmental Specifications

• Enclosure Type: Plastic
• Dimensions: 397.5 mm × 304 mm × 92 mm (15.7" × 11.9" × 3.6")
• Weight: 3.74 lb (without battery)
• Operating Temperature: –10°C to +55°C (14°F to 131°F)
• Humidity: 5% to 93% RH, non-condensing

Certifications

UL-985, UL-1023, UL-2610, UL-1637, ULC-S545, ULC-S304, FCC, IC

Suitable Applications

The IQPR019P is ideal for residential, commercial, and institutional installations requiring flexible, scalable, and secure intrusion and automation control. Its hybrid architecture and multi-path communication capabilities ensure reliable performance in professional-grade security systems.
