LOCOM5

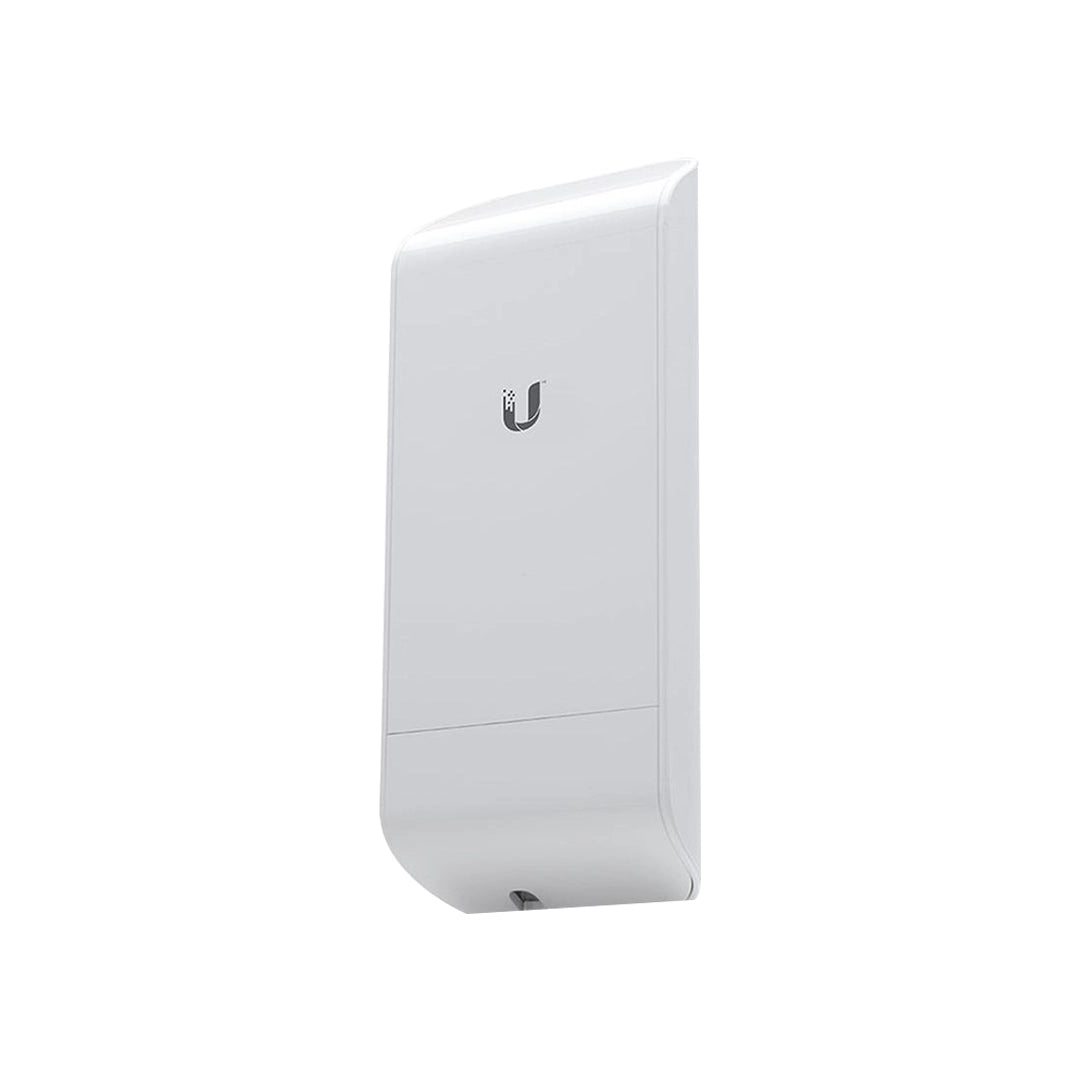

locoM5 – airMAX 5 GHz Outdoor Wireless Access Point with Integrated Antenna

High-performance outdoor wireless CPE designed for point-to-point and point-to-multipoint links in the 5 GHz band, offering stable throughput and reliable long-distance performance.

The UISP airMAX NanoStation locoM5 is a compact outdoor wireless access point and CPE operating in the 5 GHz spectrum, delivering wireless speeds of up to 150 Mbps. Equipped with a 13 dBi integrated directional antenna and 2×2 MIMO dual-polarity technology, it provides excellent noise immunity, reduced latency, and consistent link performance. Powered by a high-efficiency MIPS processor and airMAX TDMA technology, the locoM5 is ideal for professional wireless links supporting CCTV backhaul, access control, and remote network connectivity.

Product Features

• 5 GHz airMAX wireless technology with proprietary TDMA
• Wireless throughput of up to 150 Mbps
• 13 dBi integrated directional antenna for extended range
• 2×2 MIMO dual-polarity (vertical and horizontal)
• Adjustable channel widths from 5 to 40 MHz
• Advanced wireless security: WEP, WPA, WPA2, MAC ACL
• Passive 24 V PoE for simple and flexible installation
• Compact, lightweight outdoor enclosure
• Pole-mounting kit included

Product Advantages

• High interference resistance in congested RF environments
• Stable performance for professional PtP and PtMP deployments
• Low power consumption for continuous outdoor operation
• Simplified installation with passive PoE
• Proven airMAX platform trusted by professional integrators

Professional Applications

• Point-to-Point wireless backhaul links
• Point-to-Multipoint WISP client connections
• Wireless bridges for IP cameras and CCTV systems
• Remote access control and alarm system connectivity
• Outdoor network extensions for industrial and campus sites

Summary

The locoM5 delivers reliable 5 GHz wireless connectivity with high directional gain and professional-grade stability, making it an excellent choice for outdoor networking and security applications.
