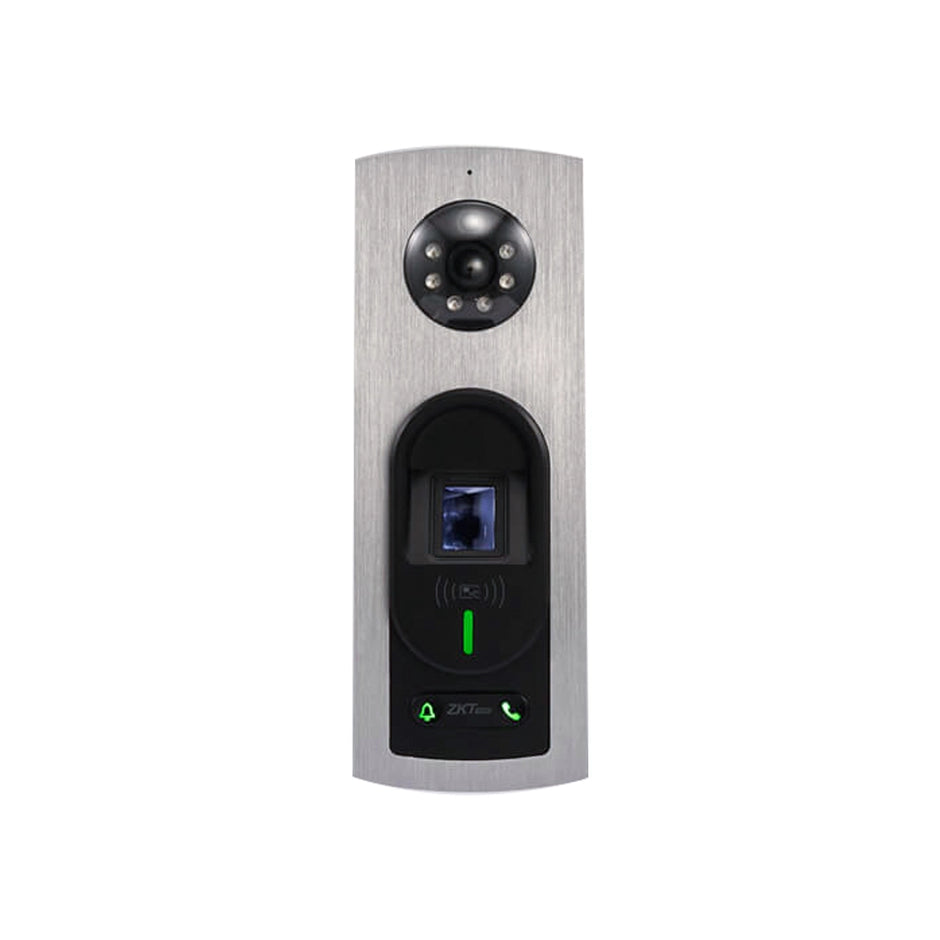

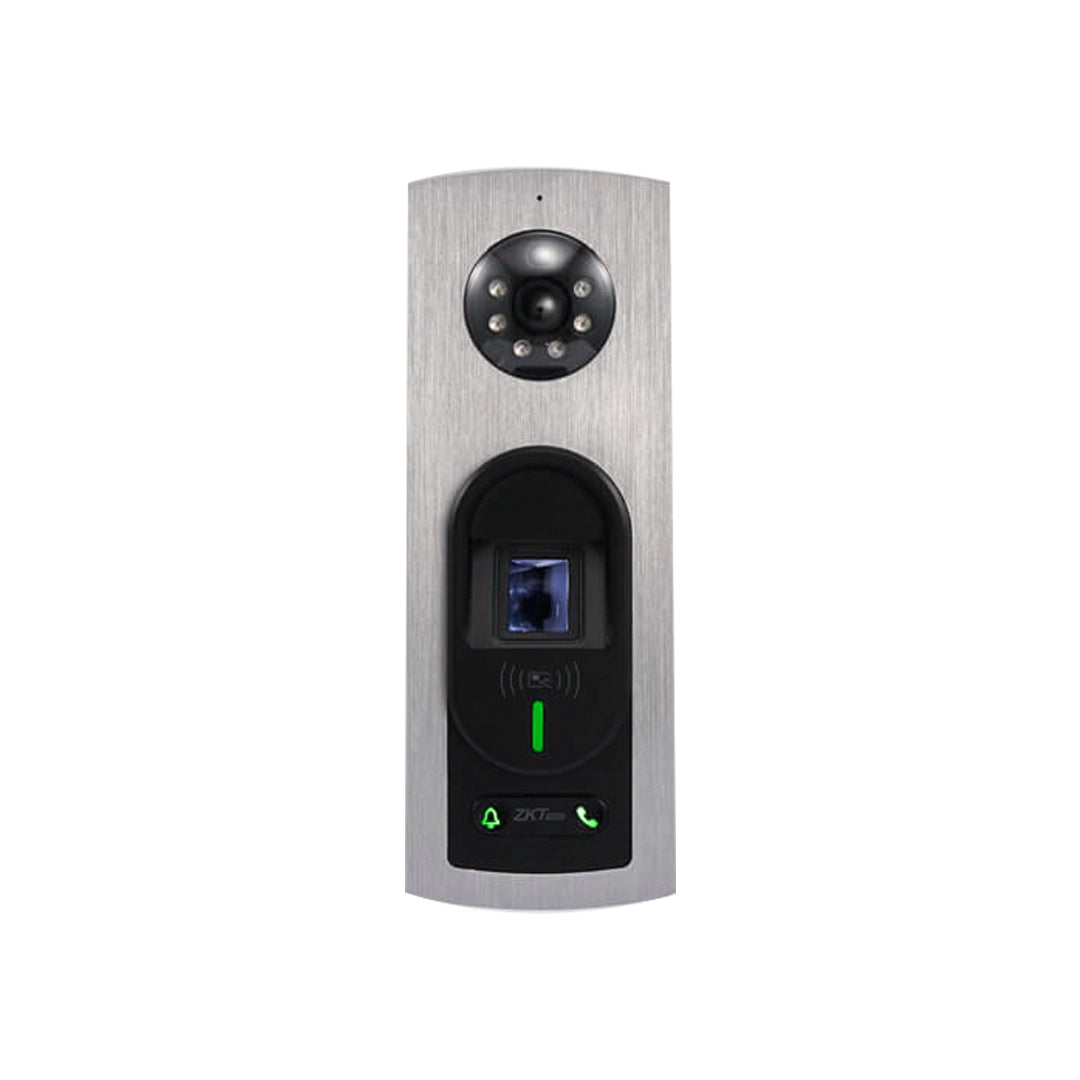

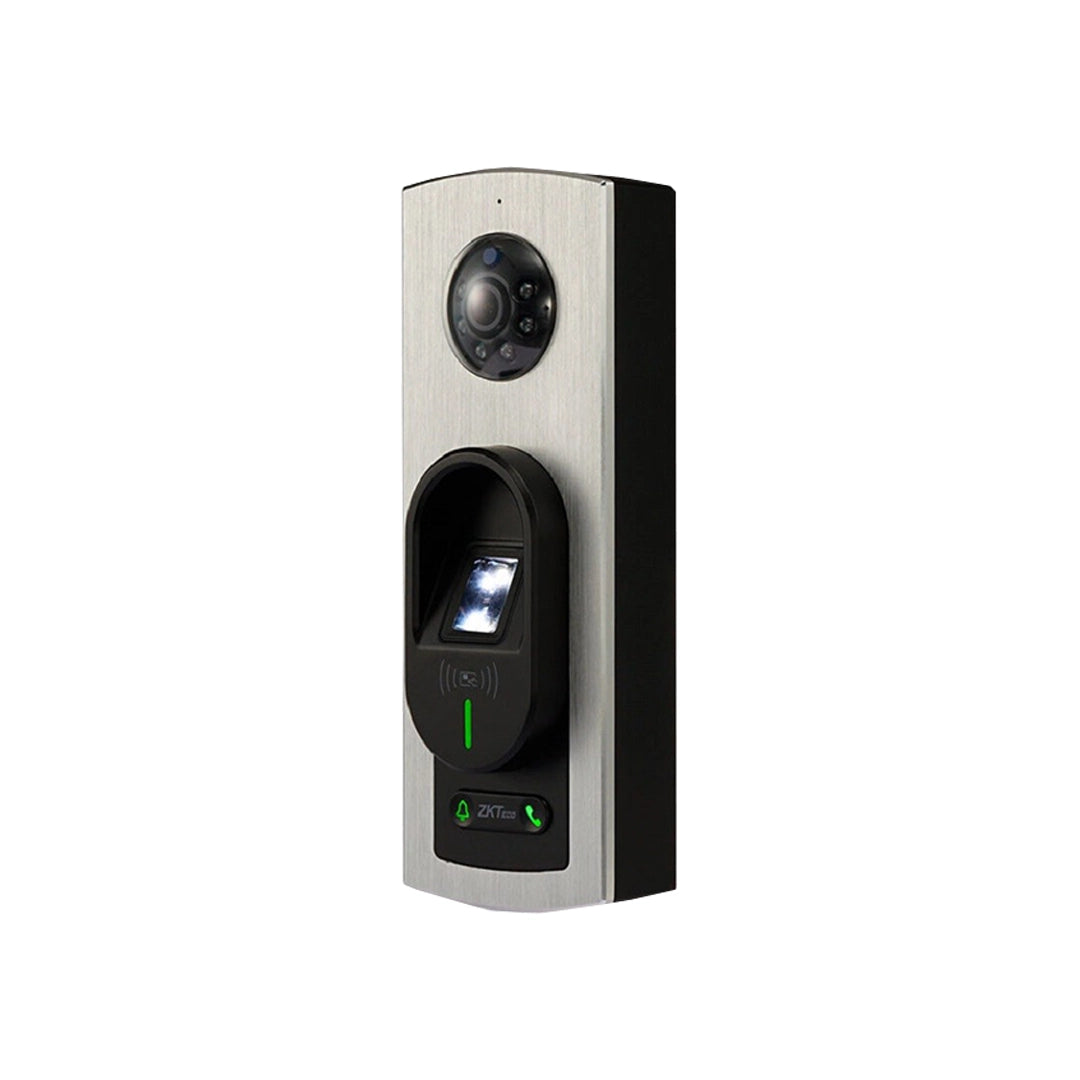

Notus – Dual-Frequency RFID & Fingerprint Access Control Terminal

Overview

The ZKTeco Notus is an advanced fingerprint and RFID access control terminal that combines high performance, smart communication, and rugged outdoor design. With its integrated 2MP HD camera, microphone, and speaker, Notus supports two-way audio and one-way video communication via the ZKView mobile app, enabling remote unlocking and real-time visual monitoring from anywhere.

Built with an IP65-rated enclosure, the Notus ensures reliable operation in both indoor and outdoor environments, even under harsh weather conditions. It features dual-frequency card compatibility (ID / IC / IC EV1) and the ZKFinger V10.0 algorithm for fast, accurate fingerprint recognition. The built-in web server allows easy configuration and management without additional software, while TCP/IP and optional Wi-Fi connectivity make it ideal for modern networked access control systems.

Key Features

• 2MP Full HD Camera: Enables video intercom, visual monitoring, and image capture.
• Two-Way Audio & Remote Unlocking: Communicate and unlock doors remotely through the ZKView mobile app.
• Built-in Web Server: Simplifies setup and configuration directly from a web browser.
• Dual-Frequency RFID Support: Compatible with ID, IC, and IC EV1 cards for versatile access control.
• Accurate Fingerprint Recognition: Powered by the ZKFinger V10.0 algorithm for rapid and precise verification.
• Push Communication (A&C): Real-time data synchronization with ZKBioAccess and ZKView software.
• Flexible Connectivity: Supports TCP/IP and optional Wi-Fi for easy system integration.
• Comprehensive Access Control Functions: Includes anti-passback, tamper alarm, access levels, groups, holidays, and record query.
• Durable Outdoor Design: IP65-rated protection ensures resistance to dust, rain, and moisture.
• Wide Temperature Range: Operates reliably from -40°C to 70°C (-40°F to 158°F).

Specifications

• Camera: 2MP (1080p) HD with IR illumination
• Fingerprint Capacity: 10,000
• Card Capacity (optional): 50,000
• Log Capacity: 200,000 events
• Communication: TCP/IP, Wi-Fi (optional)
• Access Control Interface: Electric lock, door sensor, exit button, alarm, doorbell, Wiegand In/Out
• Standard Functions: ADMS, DST, camera, 9-digit user ID, access levels, groups, holidays, tamper alarm, record query, anti-passback, web server, external RS-485 reader support
• Card Frequency: ID / IC / IC EV1 (optional)
• Fingerprint Algorithm: ZKFinger V10.0
• False Acceptance Rate (FAR): ≤0.0001%
• False Rejection Rate (FRR): ≤0.01%
• Protection Level: IP65
• Power Supply: 12V DC, 3A
• Operating Temperature: -40°C to 70°C (-40°F to 158°F)

Applications
The Notus is ideal for commercial buildings, industrial facilities, offices, and residential communities that require secure, contactless access control with remote monitoring and management capabilities.
