NSM2

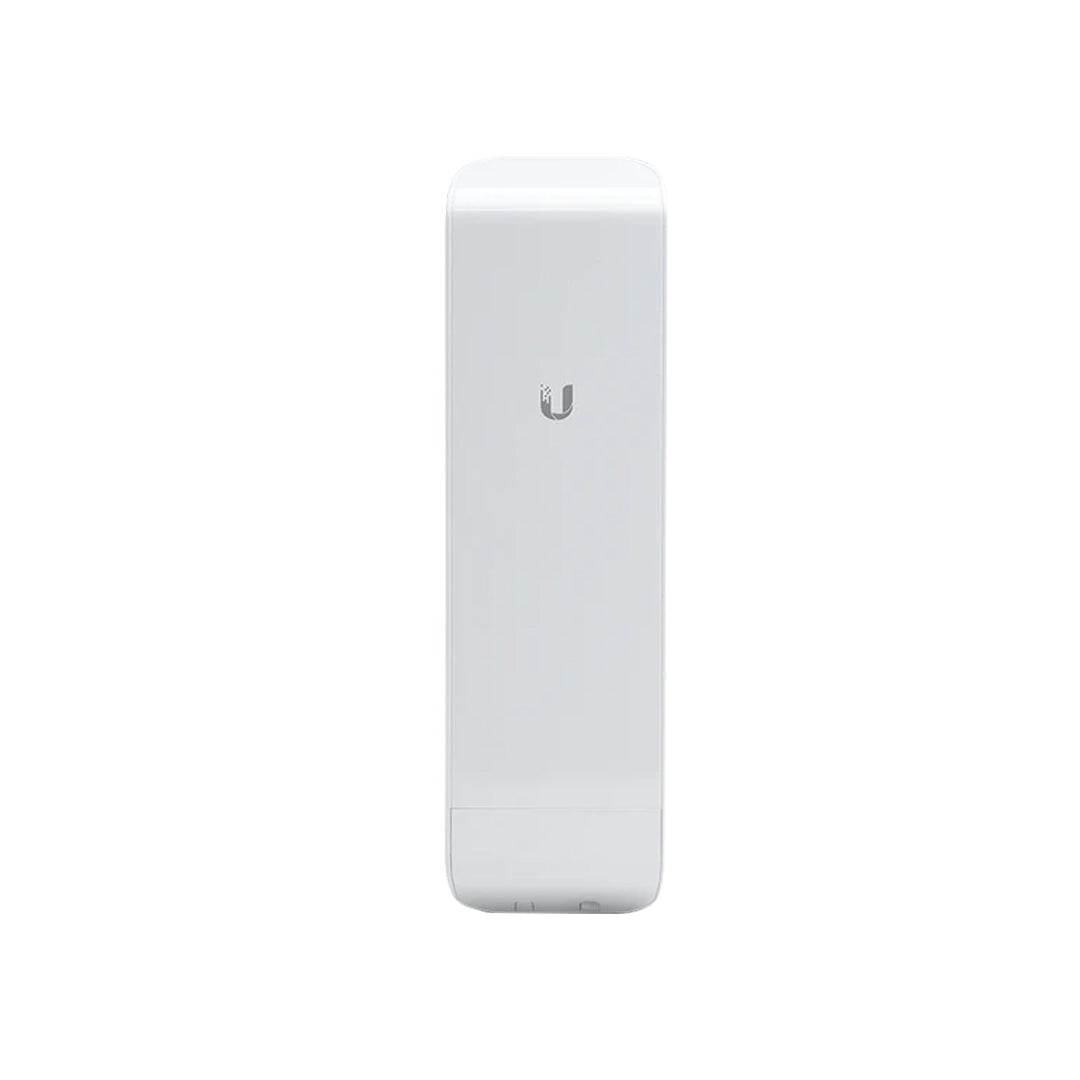

NSM2 – NanoStation airMAX M2 2.4GHz Outdoor Wireless Access Point with Integrated Antenna

The NSM2 NanoStation airMAX M2 is a compact and high-power 2.4GHz outdoor wireless CPE and access point, designed for point-to-point (PtP) and point-to-multipoint (PtMP) deployments. It integrates a high-gain directional antenna with airMAX TDMA technology, delivering stable performance, low latency, and improved capacity in congested RF environments.

With support for dual-polarity 2x2 MIMO, adjustable channel widths, and passive PoE power, the NSM2 offers a cost-effective and easy-to-deploy solution for outdoor links, surveillance backhaul, and wireless infrastructure extensions.

Product Features

• 2.4GHz wireless operation (2412–2462 MHz)
• Integrated high-gain directional antenna (10.4–11.2 dBi)
• airMAX proprietary TDMA technology for improved throughput and reduced latency
• 2x2 MIMO with simultaneous dual polarity (vertical and horizontal)
• Adjustable channel widths from 5 MHz to 40 MHz
• Maximum wireless throughput up to 150 Mbps
• High output power up to 28 dBm
• Two 10/100 Mbps Ethernet ports for flexible network integration
• Passive PoE power input for simplified outdoor installations
• Compact, lightweight, and easy-to-install design

Product Advantages

• Excellent performance in high-interference 2.4GHz environments
• TDMA-based airMAX protocol improves scalability for PtMP deployments
• Integrated antenna design reduces installation time and cost
• Wide operating temperature range for harsh outdoor conditions
• Low power consumption ideal for remote installations
• Proven platform for CCTV backhaul and wireless infrastructure

Professional Applications

• Wireless backhaul for IP CCTV and surveillance systems
• Point-to-Point (PtP) wireless links between buildings
• Point-to-Multipoint (PtMP) access point for multiple remote stations
• ISP and WISP outdoor access networks
• Industrial, commercial, and campus wireless deployments
• Access control and alarm system connectivity

Summary

The NSM2 NanoStation airMAX M2 is a reliable and efficient 2.4GHz outdoor wireless solution for professionals requiring stable links, long-range coverage, and simplified deployment. Its airMAX TDMA technology, integrated antenna, and rugged outdoor design make it a trusted choice for surveillance, networking, and wireless infrastructure projects.
