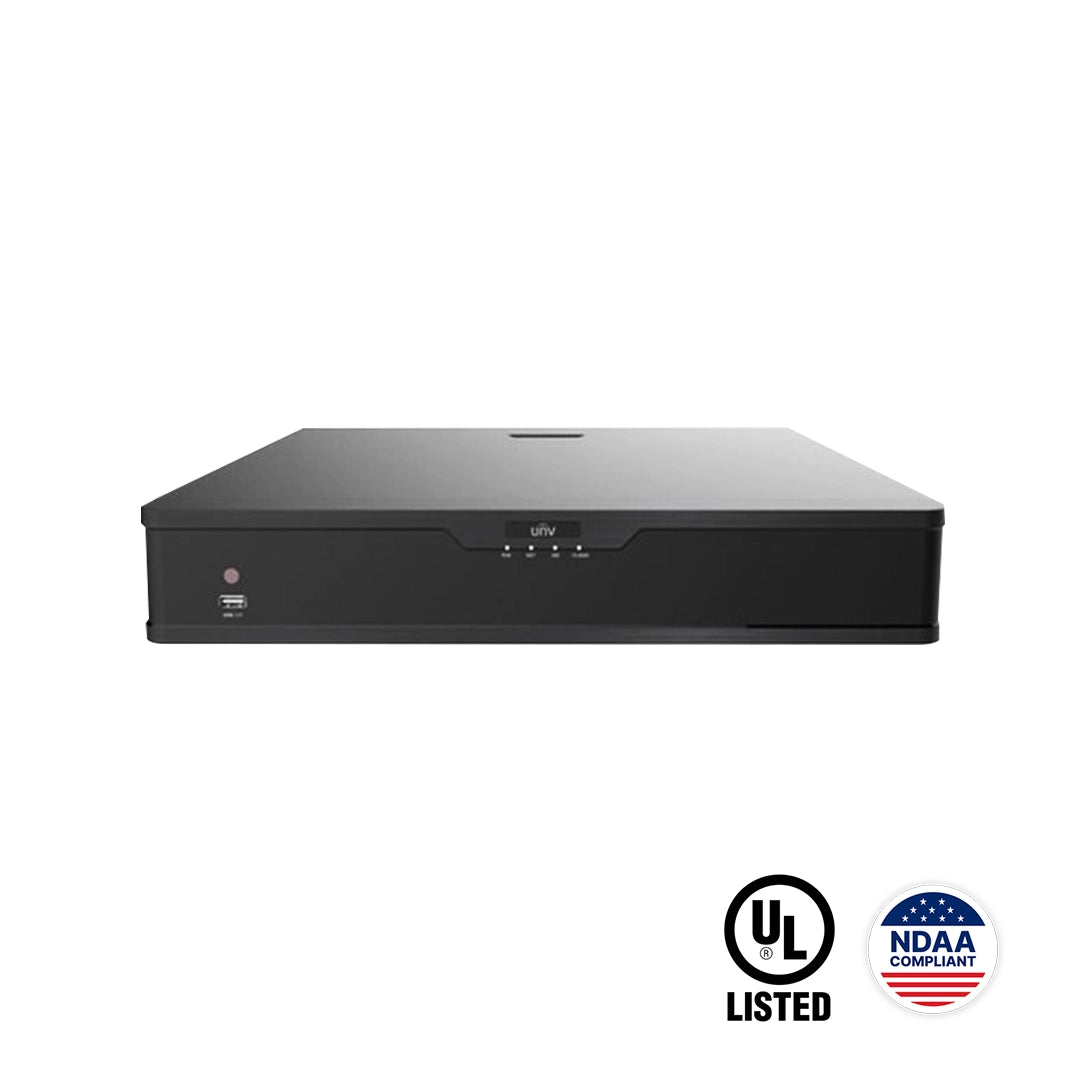

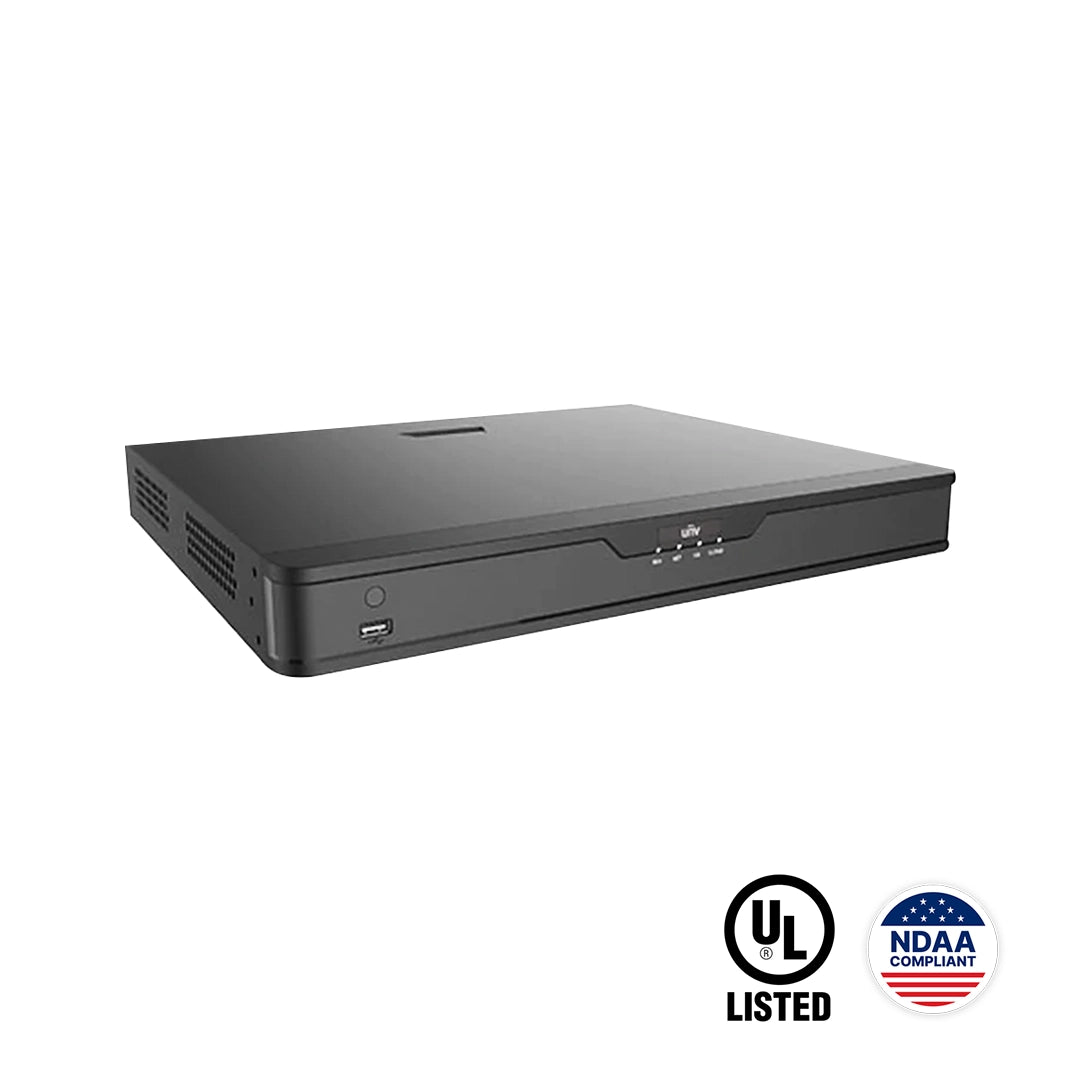

NVR302-08S-P8 – Professional 8-Channel 4K PoE Network Video Recorder with Dual SATA and Ultra265 Support

Overview

The NVR302-08S-P8 is a professional-grade surveillance recorder engineered for high-performance IP CCTV environments. Featuring 8 PoE ports, dual SATA bays (up to 20TB), advanced Ultra265/H.265 compression, and 4K HDMI output, it is ideal for modern multi-camera installations requiring reliability, storage redundancy, and enterprise-level streaming capacity.

Product Features

• 8-channel IP input supporting Ultra265/H.265/H.264

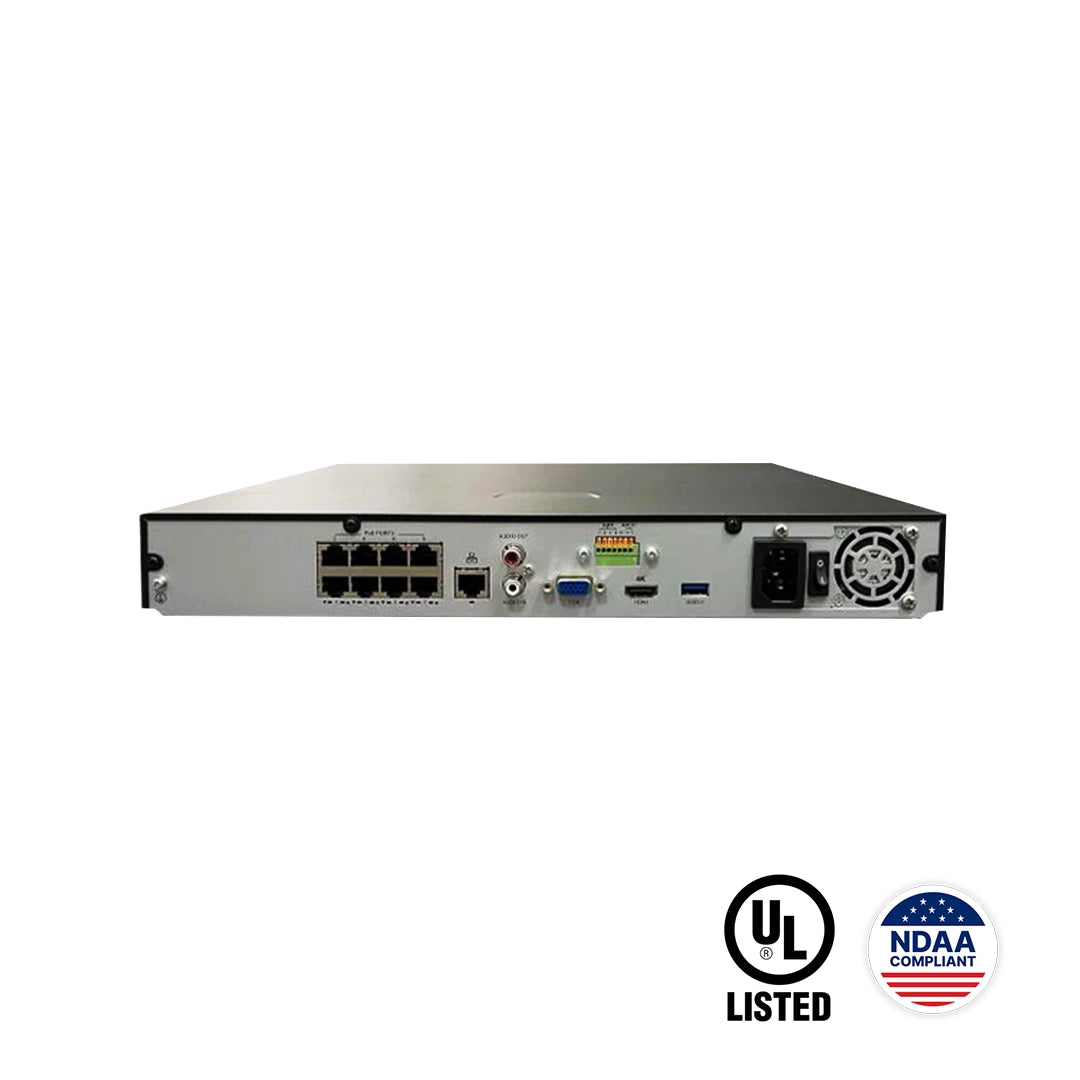

• Integrated 8-port PoE (IEEE 802.3af/at) for direct camera connection
• Compatible with third-party IP cameras via ONVIF Profile S/G/T
• Dual SATA interfaces, supporting up to 10TB per HDD (20TB total)
• HDMI and VGA simultaneous display output
• 4K resolution output via HDMI (up to 3840×2160@60Hz)
• Up to 8MP recording resolution for advanced deployments
• ANR technology for uninterrupted recording during network failures
• Cloud upgrade capability for efficient remote maintenance
• High-capacity bandwidth: 160 Mbps incoming / 96 Mbps outgoing
