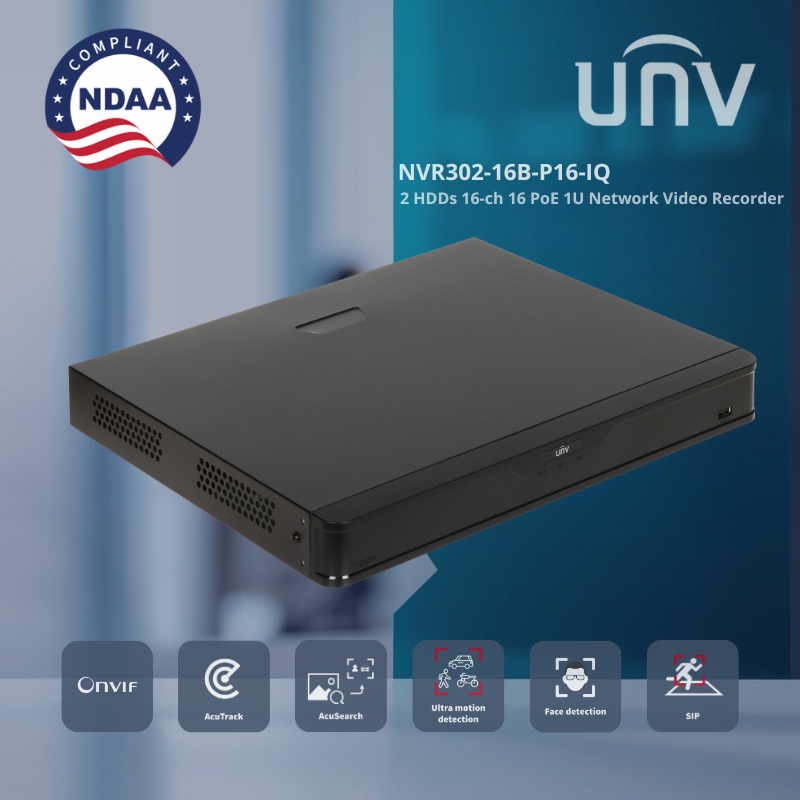

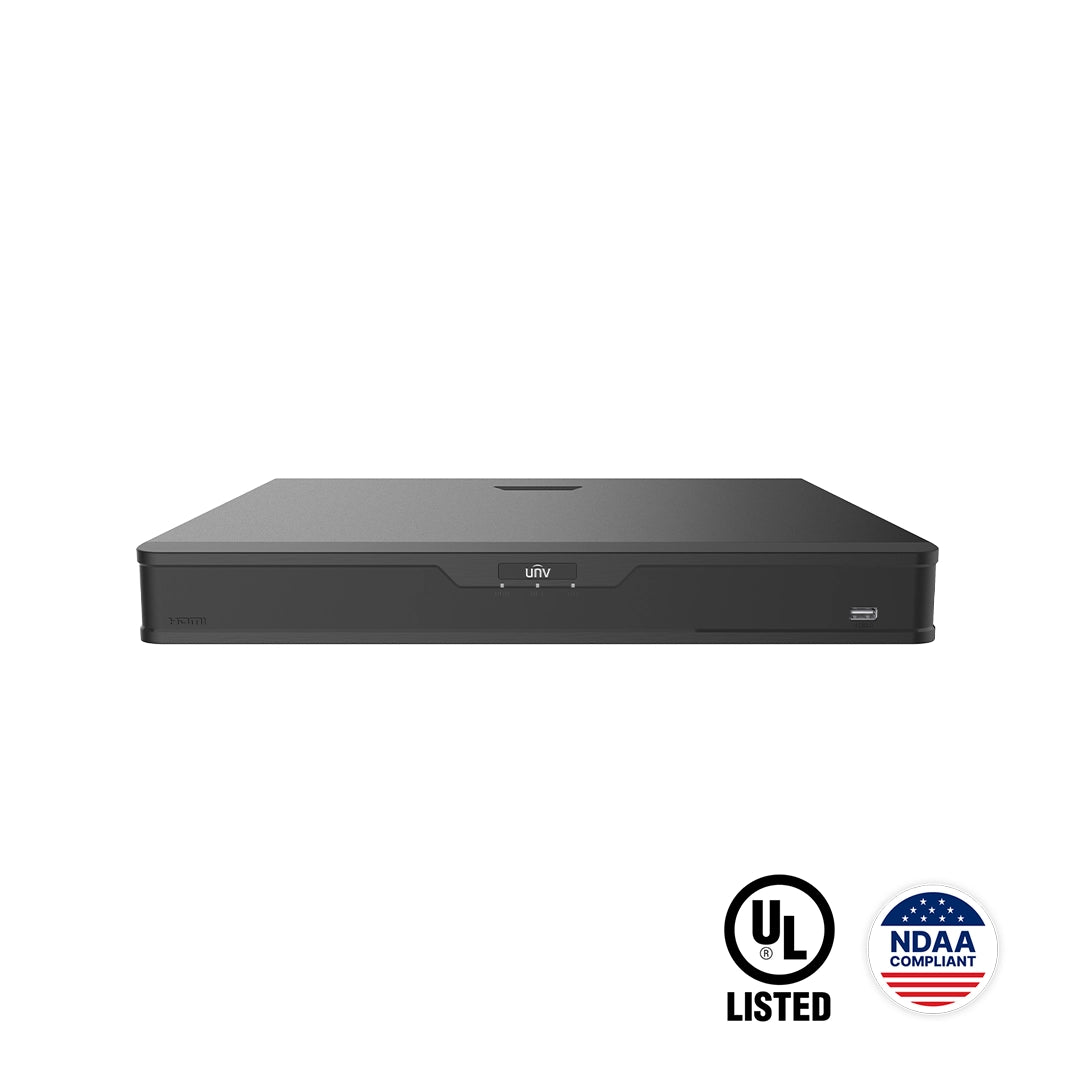

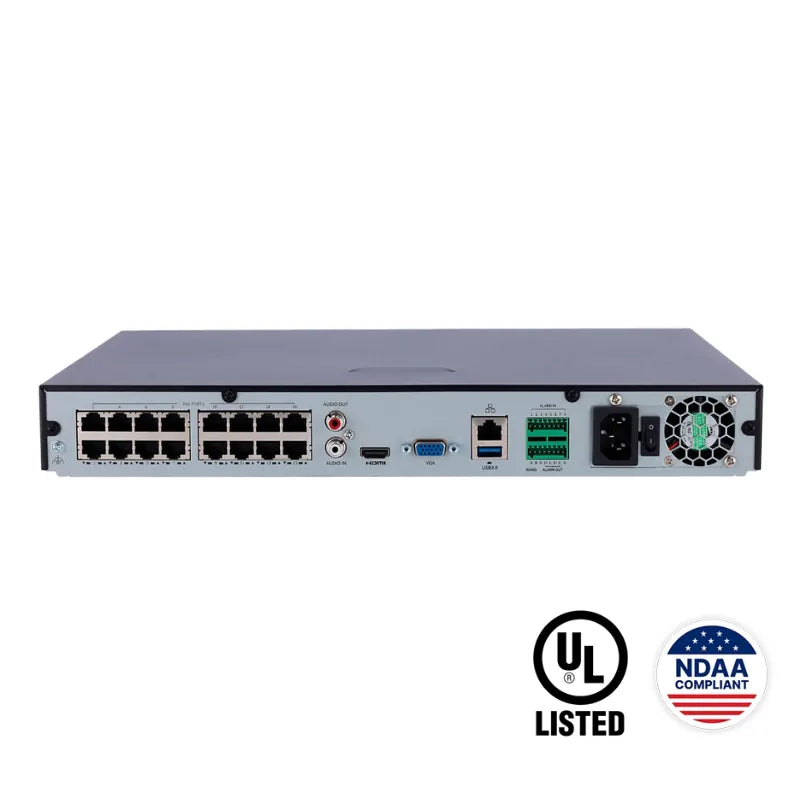

NVR302-16B-P16-IQ : 16-Channel 16 PoE 1U 4K Network Video Recorder

NVR302-16B-P16-IQ : 16-Channel 16 PoE 1U 4K Network Video Recorder

The NVR302-16B-P16-IQ is a professional 16-channel Network Video Recorder with 16 integrated PoE ports, designed for commercial and enterprise surveillance systems. It supports up to 12MP recording resolution, Ultra 265/H.265/H.264 compression, and 160Mbps incoming bandwidth for stable multi-camera operation. Featuring 4K HDMI output, dual SATA bays supporting up to 24TB per HDD, and advanced AI functions including Face Detection, SIP, UMD, AcuSearch, and AcuTrack, this 1U rackmount NVR delivers reliable recording and intelligent video search while complying with FCC, UL, CE, and RoHS standards for the U.S. market.

Product Features

• 16 IP Channel Input
• 16 Independent PoE Ports (IEEE 802.3af/at)
• Up to 12MP Recording Resolution
• Ultra 265 / H.265 / H.264 Compression
• 160 Mbps Incoming Bandwidth
• Dual SATA Bays – Up to 24TB per HDD
• 4K HDMI Output (3840×2160 @30Hz)
• HDMI & VGA Simultaneous Output
• ANR Technology for Network Failure Protection
• Cloud Upgrade Support
• Face Detection, SIP & UMD Smart Analytics
• AcuSearch & AcuTrack Intelligent Search
• Two-Way Audio (RCA)
• 8 Alarm Inputs / 2 Alarm Outputs
• 1× Gigabit Ethernet Interface

The NVR302-16B-P16-IQ combines 16-channel recording, integrated PoE switching, AI-powered analytics, and dual HDD scalability in a compact 1U professional rackmount solution.
