NVR504-32B-P16-IQ : 32-Channel 16 PoE 1.5U Enterprise Network Video Recorder

NVR504-32B-P16-IQ : 32-Channel 16 PoE 1.5U Enterprise Network Video Recorder

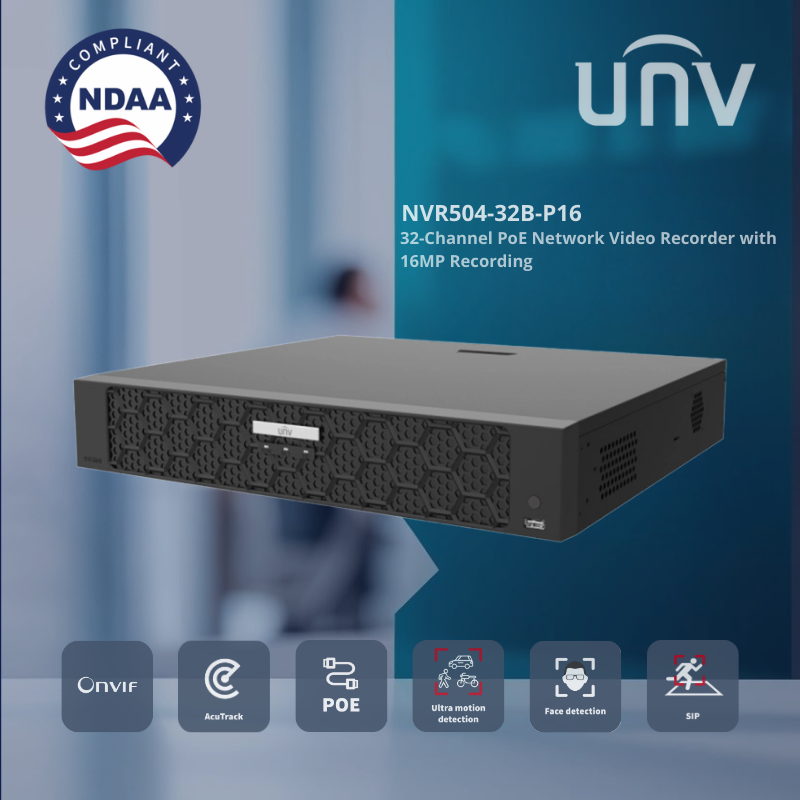

The NVR504-32B-P16-IQ is a high-capacity 32-channel enterprise-grade NVR featuring 16 integrated PoE ports, support for up to 16MP recording resolution, and a robust 4-HDD architecture with RAID support. Designed for large-scale commercial and industrial deployments, it delivers 320 Mbps incoming bandwidth, advanced AI analytics including Face Detection, SIP, UMD, AcuSearch, and AcuTrack, plus 4K HDMI output. Built in a 1.5U rackmount chassis and compliant with FCC, UL, CE, and RoHS standards, it meets U.S. regulatory requirements for professional surveillance installations.

Product Features

• 32 IP Channel Input
• 16 Integrated PoE Ports (IEEE 802.3af/at)
• Up to 16MP Recording Resolution
• Ultra 265 / H.265 / H.264 compression
• 320 Mbps Incoming Bandwidth (Smart Off)
• 4 SATA Bays – Up to 24TB per HDD
• RAID 1 & RAID 5 Support
• 4K HDMI Output (3840×2160 @30Hz)
• HDMI & VGA Independent Output
• ANR Technology for Network Failure Protection
• Cloud Upgrade Support
• Face Detection, SIP & UMD Analytics
• AcuSearch & AcuTrack Intelligent Search
• Two-Way Audio (RCA)
• 16 Alarm Inputs / 4 Alarm Outputs
• 1× Gigabit Ethernet Interface

The NVR504-32B-P16-IQ delivers 32-channel enterprise recording, integrated PoE switching, RAID storage protection, and advanced AI analytics in a powerful 1.5U professional rackmount solution.
