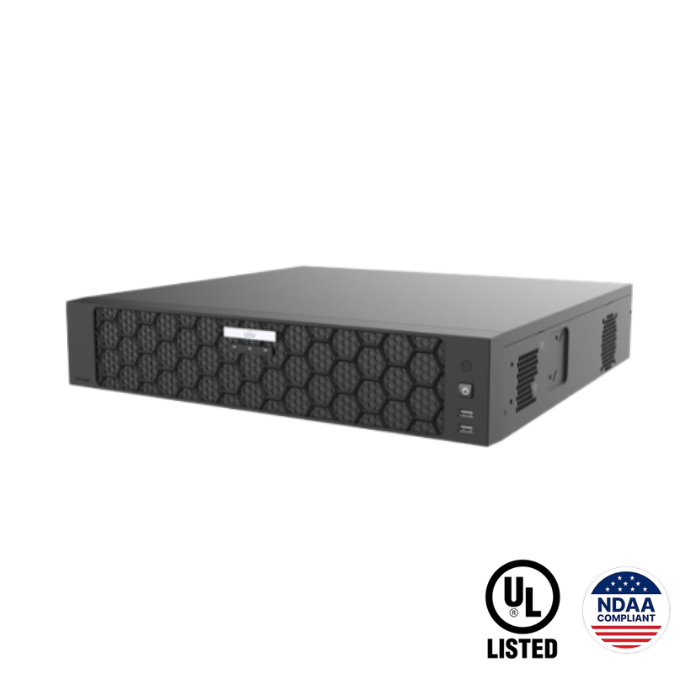

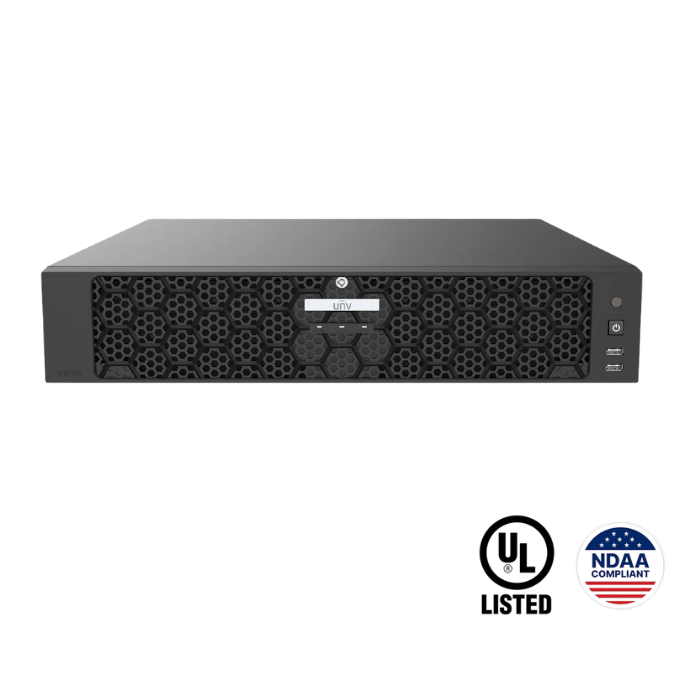

NVR504-64E-P24-IQ : 64-Channel Prime Series NVR with 24 PoE Ports, Advanced VCA, RAID, and Dual 4K HDMI

64-Channel Prime Series NVR with 24 PoE Ports, Advanced VCA, RAID, and Dual 4K HDMI

A high-performance 64-channel Uniview Prime Series NVR engineered for demanding professional deployments requiring advanced analytics, strong PoE capacity, RAID storage protection, and full ONVIF interoperability. This recorder includes 24 PoE ports, supports up to 4 × 16TB HDD, and delivers powerful server-level decoding for large surveillance ecosystems.

Product Features

• Supports Ultra 265/H.265/H.264 video formats with optimized bandwidth utilization.
• 64-channel IP input and 24 built-in PoE ports for direct camera powering.
• Dual independent display outputs: HDMI1/VGA1 and HDMI2/VGA2, with dual 4K HDMI capability.
• Full ONVIF compliance (Profile S/G/T) and RTSP support.
• Supports ANR (Automatic Network Replenishment) to protect video storage during network interruptions.
• Cloud upgrade support for simplified remote maintenance.
• Smart VCA search modes: motor vehicle, non-motor vehicle, human body, people counting report, heatmap, and general metadata search.
• Built-in AcuSearch for time-range, multi-camera object trajectory reconstruction.
• NVR-side intelligent analytics: Face Detection, Face Recognition, SIP (Smart Intrusion Prevention), UMD (Ultra Motion Detection), with dedicated channel allocations.
• Supports RAID 0/1/5 for mission-critical storage protection.
