OCB-4416-16P-FR

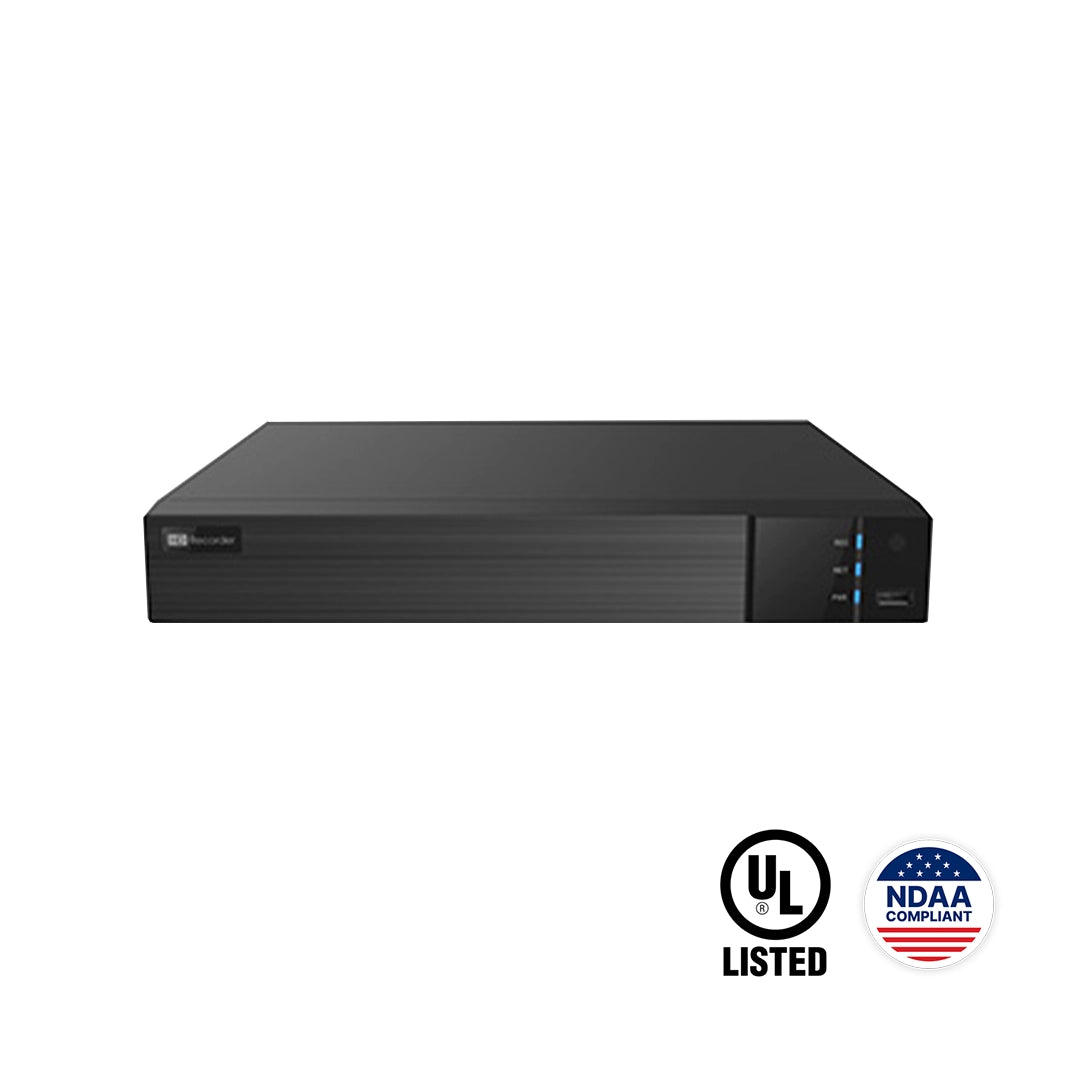

OCB-4416-16P-FR – 16MP 16CH AI PoE NVR with Face Recognition & Fisheye Dewarping

The OCB-4416-16P-FR is a professional 16-channel 16MP AI Network Video Recorder with 16 integrated PoE ports and dual HDD support. Designed for intelligent surveillance systems, it supports face recognition, license plate recognition (AI by IPC), perimeter protection, and local fisheye dewarping. With H.265 compression, 4K output, and up to 192Mbps bandwidth, this embedded Linux NVR delivers high-performance recording and advanced analytics for enterprise and commercial deployments.

Product Features

• Supports 16CH IPC input up to 16MP resolution
• H.265S / H.265+ / H.265 / H.264 compression
• 192Mbps incoming / outgoing bandwidth
• 16× PoE ports (IEEE 802.3af/at)
• 4K HDMI output (3840×2160)
• VGA independent output
• 16CH simultaneous playback
• Supports Face Detection & Face Comparison
• Supports License Plate Recognition (AI by IPC)
• Local fisheye camera access & dewarping
• Human/Vehicle classification
• POS overlay support
• Pentaplex operation (preview / record / playback / backup / remote access)
• NAT function & QR mobile access
• Multi-user access (up to 64 users)
• PTZ preset & auto cruise support

Product Advantages

• AI-powered face database: 32 libraries / 10,000 face images
• Face comparison performance: 18 pictures per second
• 16CH perimeter protection (AI by IPC)
• Dual HDD support for extended storage capacity
• Integrated PoE simplifies installation and reduces infrastructure cost
• Compatible with third-party cameras (ONVIF supported)
• Reliable embedded Linux architecture for 24/7 operation

Professional Applications

Ideal for:
• Commercial buildings
• Retail chains
• Access-controlled facilities
• Schools & campuses
• Industrial facilities
• Smart city surveillance projects

The OCB-4416-16P-FR combines 16-channel 16MP recording, integrated 16-port PoE switching, advanced face recognition, LPR support, and dual HDD scalability in a powerful AI-driven NVR platform designed for professional surveillance systems.
