OCB-8545-LPR

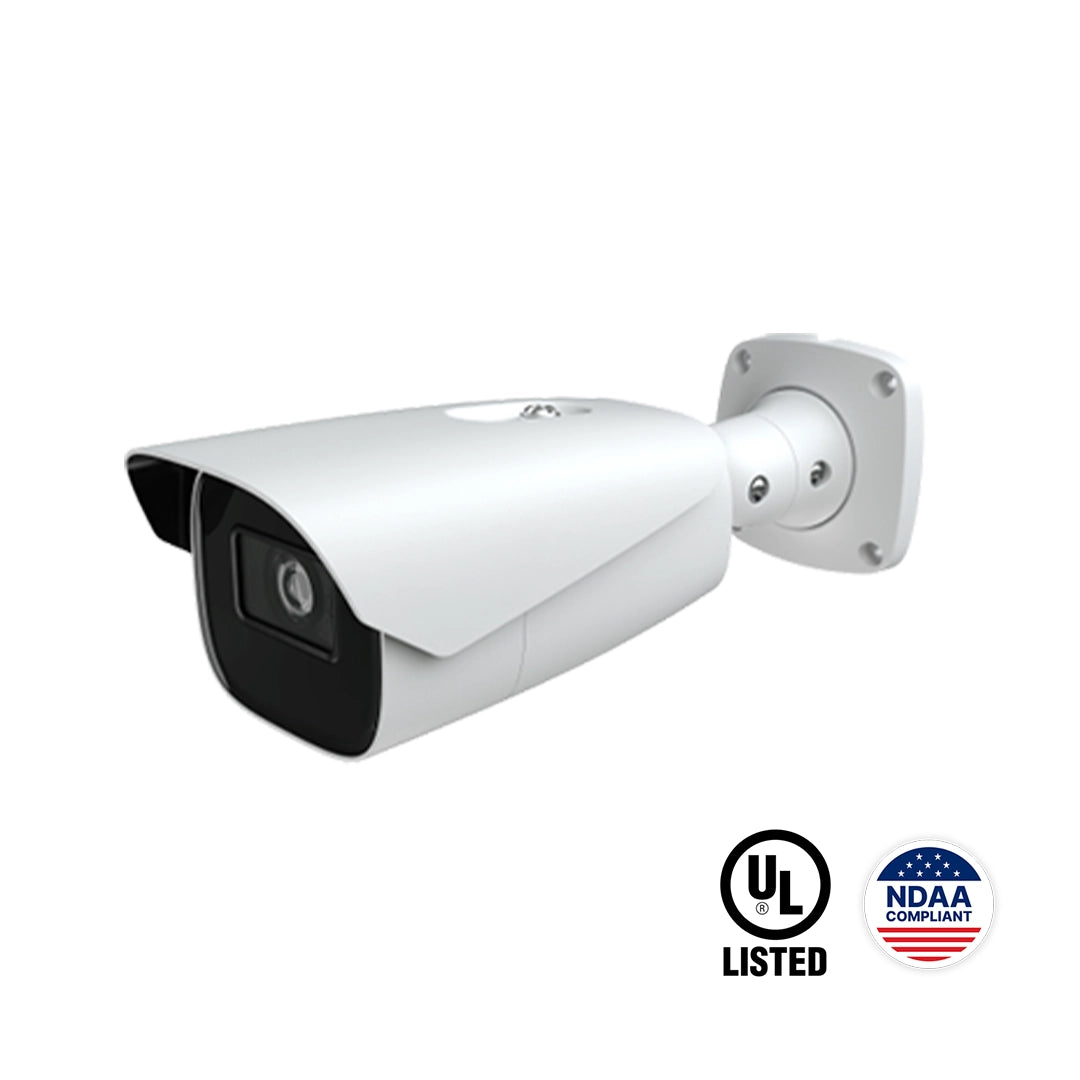

OCB-8545-LPR – 4MP License Plate Recognition (LPR) Network Camera

The OCB-8545-LPR is a professional 4MP (2688×1520) ANPR/LPR camera designed for accurate vehicle and license plate recognition in entrances, exits, and roadway environments. Featuring a motorized 8–32mm lens, 120dB WDR, and up to 100m IR range (depending on lens version), it ensures reliable capture in variable lighting conditions. With built-in MicroSD storage, barrier gate control support, and ≥99% capture accuracy under recommended conditions, this IP67-rated camera is ideal for intelligent traffic and access control systems.

Product Features

• 4MP (2688 × 1520) @30fps resolution
• Motorized lens options: 2.8–12mm or 8–32mm
• H.265+ / H.264+ / H.265 / H.264 / MJPEG compression
• License Plate Detection & Recognition (LPR/ANPR)
• 120dB True WDR
• ICR auto switch (True Day/Night)
• 3D DNR, HLC, BLC, Defog, ROI
• Built-in MicroSD slot (up to 256GB)
• DC12V / AC24V / PoE (IEEE 802.3af)
• Triple stream support
• Barrier gate relay output (1CH)
• RS485 & Wiegand (26-bit) interface
• Dual-system backup
• IP67 protection rating
• Mobile surveillance (iOS & Android)
• P2P remote access support

Product Advantages

• High LPR accuracy rate (≥99% at entrance/exit under recommended conditions)
• Supports vehicle feature extraction (color, type, brand/model)
• Barrier gate integration for automated access control
• Dual power input for flexible installation
• Long-range IR performance (up to 100m depending on model)
• Built-in vehicle plate database (up to 10,000 records)
• Designed for 24/7 outdoor operation

Professional Applications

Ideal for:
• Parking entrances & exits
• Toll stations
• Industrial facilities
• Residential gated communities
• Logistics centers
• Roadway traffic monitoring

The OCB-8545-LPR combines 4MP imaging, motorized zoom flexibility, and high-accuracy license plate recognition in a rugged IP67 housing, making it a reliable solution for intelligent vehicle access and traffic control systems.
