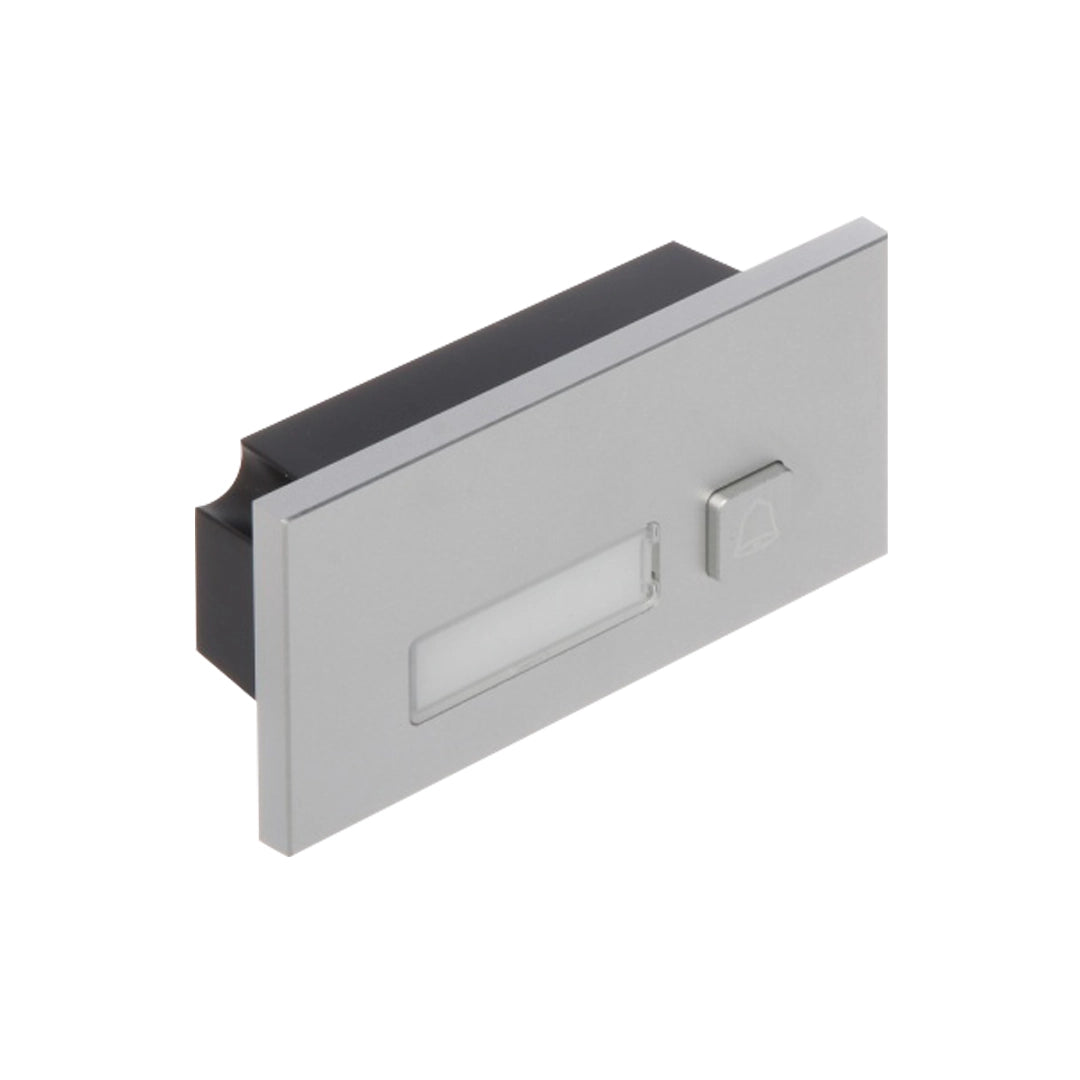

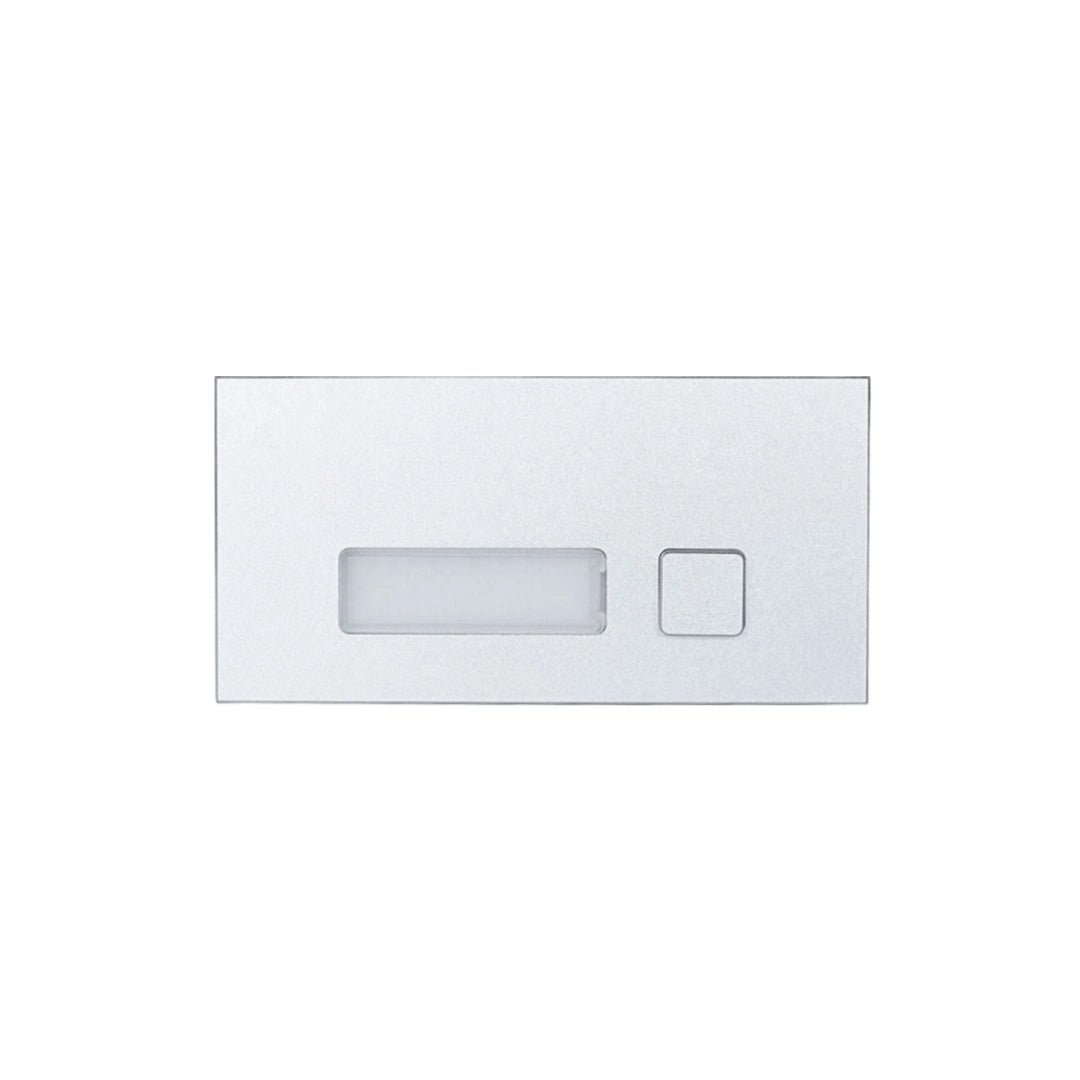

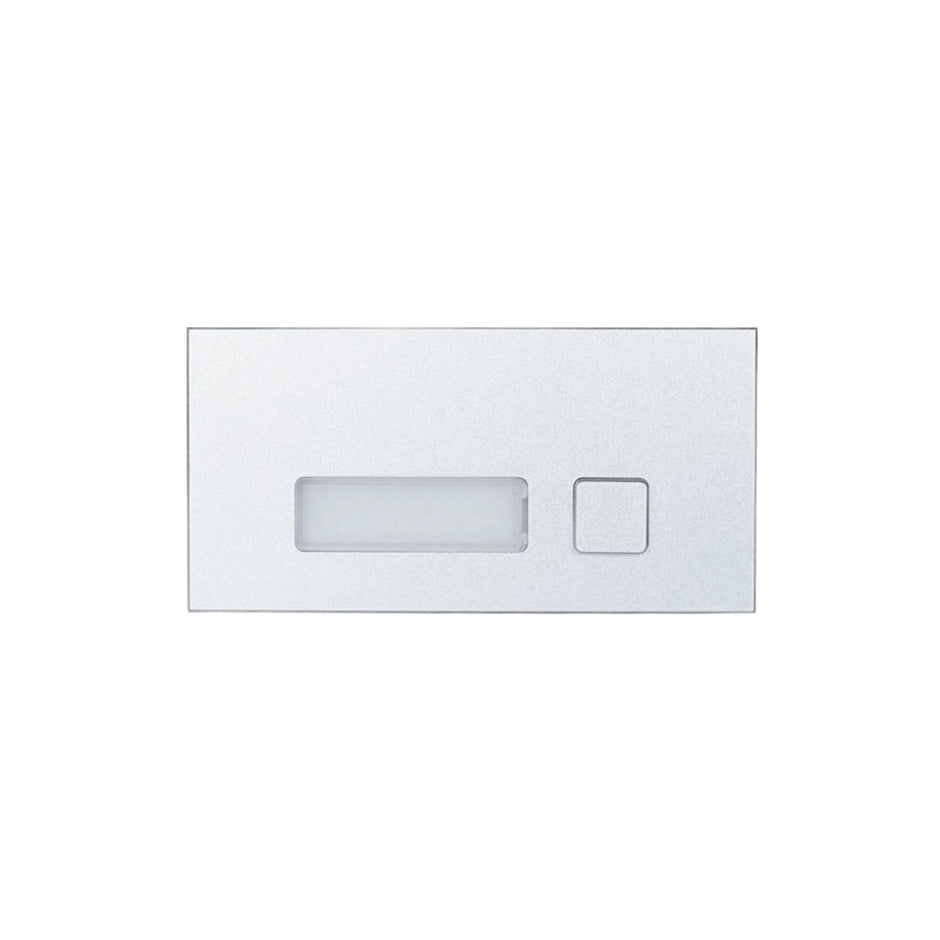

SCO-DVI-OS52-B1 – Single Button Module for Modular Door Station

Overview

Durable single-button module for modular outdoor door stations. Built with an aluminum alloy body, IP65 weatherproofing, IK07 impact protection, and efficient 5V power output for system expansion.

Detailed Product Description

Model: SCO-DVI-OS52-B1
Type: Single-Button Modular Outdoor Station

Key Features

• Mechanical Button Design: Equipped with one reliable mechanical button for precise and durable operation in intercom or access control systems.
• Premium Build Quality: Constructed from aluminum alloy with a sleek silver finish, combining strength, corrosion resistance, and modern aesthetics.
• Weather and Impact Protection: Rated IP65 for dust and water resistance and IK07 for impact protection (requires silicone sealant for full sealing).
• Efficient Power Integration: Provides 5 VDC output to power additional modules within the OCB-DVI system and operates with minimal power consumption ≤0.5 W.
• Flexible Installation: Supports flush mount and surface mount options to accommodate various architectural designs.
• Environmental Durability: Designed to operate from –30 °C to +60 °C (–22 °F to +140 °F) with humidity tolerance up to 90% RH, ensuring reliable performance in any climate.
• Compact and Lightweight: Measures 100 × 50 × 30.5 mm (3.94" × 1.97" × 1.20") and weighs only 0.18 kg (0.40 lb), ideal for modular configurations.
