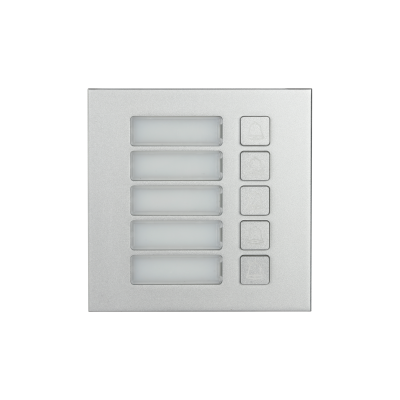

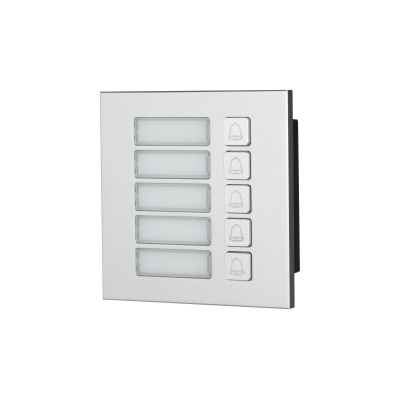

SCO-DVI-OS52-B5 — Modular Door Station Button Module

Overview

Mechanical button module for OCB-DVI modular door station systems. Features an aluminum alloy body, IP65/IK07 protection, 5V DC power output, and flexible flush or surface mounting options.

Detailed Product Description

Model: SCO-DVI-OS52-B5
Category: Modular Door Station Accessory

The SCO-DVI-OS52-B5 is a mechanical button module designed for seamless integration into the OCB-DVI modular door station series. Built with a robust aluminum alloy casing and engineered for durability, this module provides a reliable and elegant interface for user access control in both residential and commercial entry systems.

Key Features

High-Performance Embedded System

• System Type: Embedded processor for stable and responsive operation.
• Button Type: Mechanical — delivers a tactile and reliable user experience for long-term use.

Durable Construction & Elegant Design

• Casing Material: Aluminum alloy housing with a sleek silver finish.
• Protection Ratings: IK07 impact resistance and IP65 weatherproofing (requires silicone sealant during installation).
• Designed to withstand harsh environments while maintaining a refined, professional look.

Efficient Power Management

• Port Power Output: 5 VDC, ideal for powering connected modules.
• Power Supply: Receives 5 VDC from other modules for streamlined system integration.
• Power Consumption: Ultra-efficient at ≤0.5 W for energy-saving operation.

Flexible Installation Options

• Mounting Methods: Supports flush mount and surface mount installations, ensuring compatibility with different wall types and architectural designs.

Compact and Lightweight

• Dimensions: 100 × 100 × 30.5 mm (3.94" × 3.94" × 1.2")
• Gross Weight: 0.31 kg (0.68 lb)

Reliable Operation

• Operating Temperature: –30 °C to +60 °C (–22 °F to +140 °F)
• Operating Humidity: 10%–90% RH
