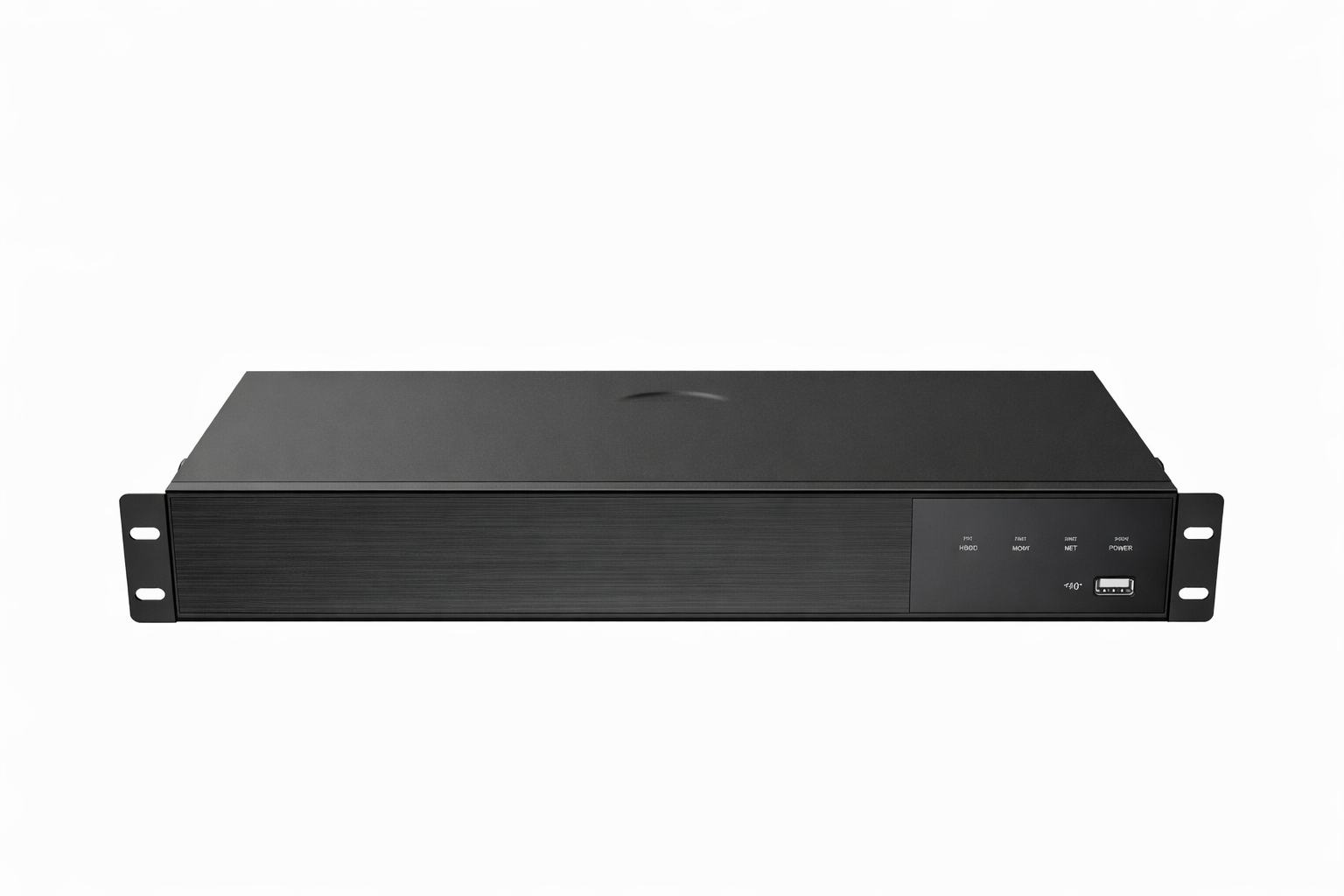

The OCB-L NVR4332K4P24 is a high-capacity, professional-grade Network Video Recorder designed for large-scale security systems.
Increments of 1
Minimum of 1
Maximum of
0Low stock
0In stock, ready to ship
Sale price
$570.00
-100%
Regular price
Regular price
$570.00
Unit price
per
The OCB-L NVR4332K4P24 is a high-capacity, professional-grade Network Video Recorder designed for large-scale security systems.
Sale price
$570.00
Regular price
Regular price
$570.00
Unit price
per
Couldn't load pickup availability
The OCB-L NVR4332K4P24 is a high-capacity, professional-grade Network Video Recorder designed for large-scale security systems. With support for up to 32 IP channels and an integrated 24-port PoE switch, it offers a complete, centralized solution for high-density camera deployments. This model is specifically engineered for environments requiring long-term storage and advanced AI analytics, featuring four SATA interfaces to accommodate massive amounts of data.
Product Features
32CH 24CH POE 4K NVR
- Input: Max. 32CH;
- support (two-way) Audio;
- HD Output:4K(3840x2160)
- Video Compression : H265/H264/H265+/H264+
- 24x Independent 100Mbps POE Network Interfaces
System & Video Performance
Main Processor: Quad Core Cortex A53 / Embedded LINUX
IP Video Input: 32 Channels (16MP / 12MP / 8MP / 5MP / 4MP / 3MP / 1080p / 720p / D1)
Video Output: 1x HDMI (4K: 3840*2160), 1x VGA (1920x1080)
Bandwidth: Incoming: 256Mbps / Outgoing: 160Mbps
Compression: H.265 / H.265+ / H.264 / H.264+
Audio, Alarm & Event
Audio I/O: 1x RCA Input / 1x RCA Output (Two-way Intercom supported)
Alarm I/O: 16-Channel Sensor Input / 4-Channel Alarm Output
Smart Events: Face Detection/Recognition, Intrusion, Line Crossing, Enter/Leave Area, Loitering, People Gathering, LPR/LPD, Heat Map
Motion Detection: 32 Channels (396 Zones) with Trigger Events (Email, FTP, Snapshot, Buzzer, Alarm Output)
Recording & Playback
Local Playback: 1CH 16MP@25fps / 2CH 12MP@30fps / 4CH 8MP@30fps / 16CH 1080P@30fps
Decode Capability: 1080P @ 480fps
Search Mode: Video, Picture, Event, Pedestrian, Vehicle, Face, License Plate
Network & PoE Interface
PoE Interface: 24x Independent 100Mbps POE Ports (Plug & Play)
PoE Budget: Total Power Output ≤ 200W (Support for Extended Mode up to 200m)
Network Interface: 1x RJ45 (10M/100M/1000M Adaptive Ethernet)
Onvif: Profile S, Profile T, Profile G
Storage & Physical
Storage Type: 4x SATA Hard Disk Interfaces (3.5")
Max Capacity: Up to 10TB for each HDD (40TB Total)
USB Interface: 2x USB 2.0 (Front), 1x USB 3.0 (Rear)
Dimensions: 440 x 372 x 69 (mm)
Weight: 4.73 kg (without HDD)
Power Source: 100-240V AC, 50/60Hz ≤ 20W (Without HDD/PoE)
