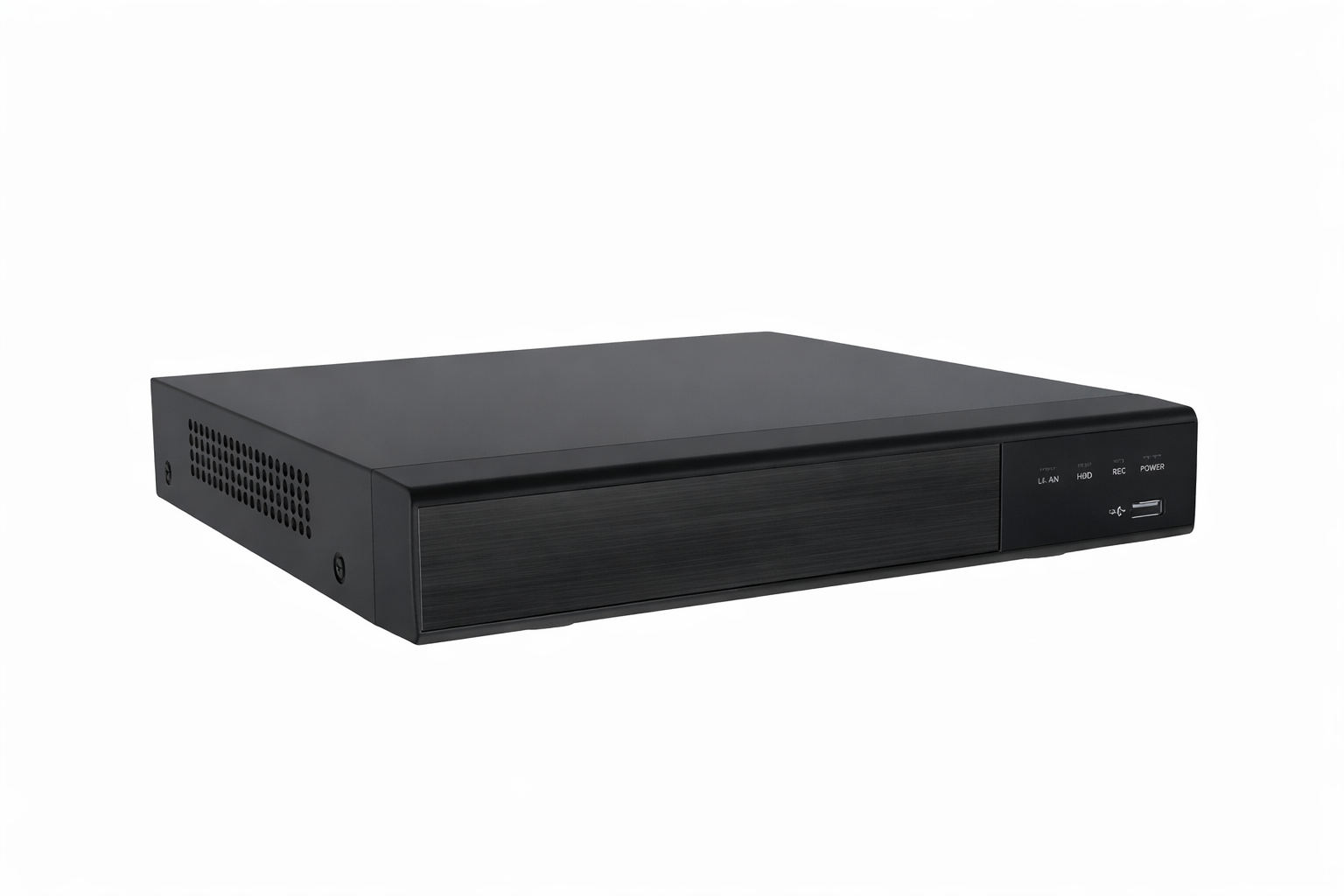

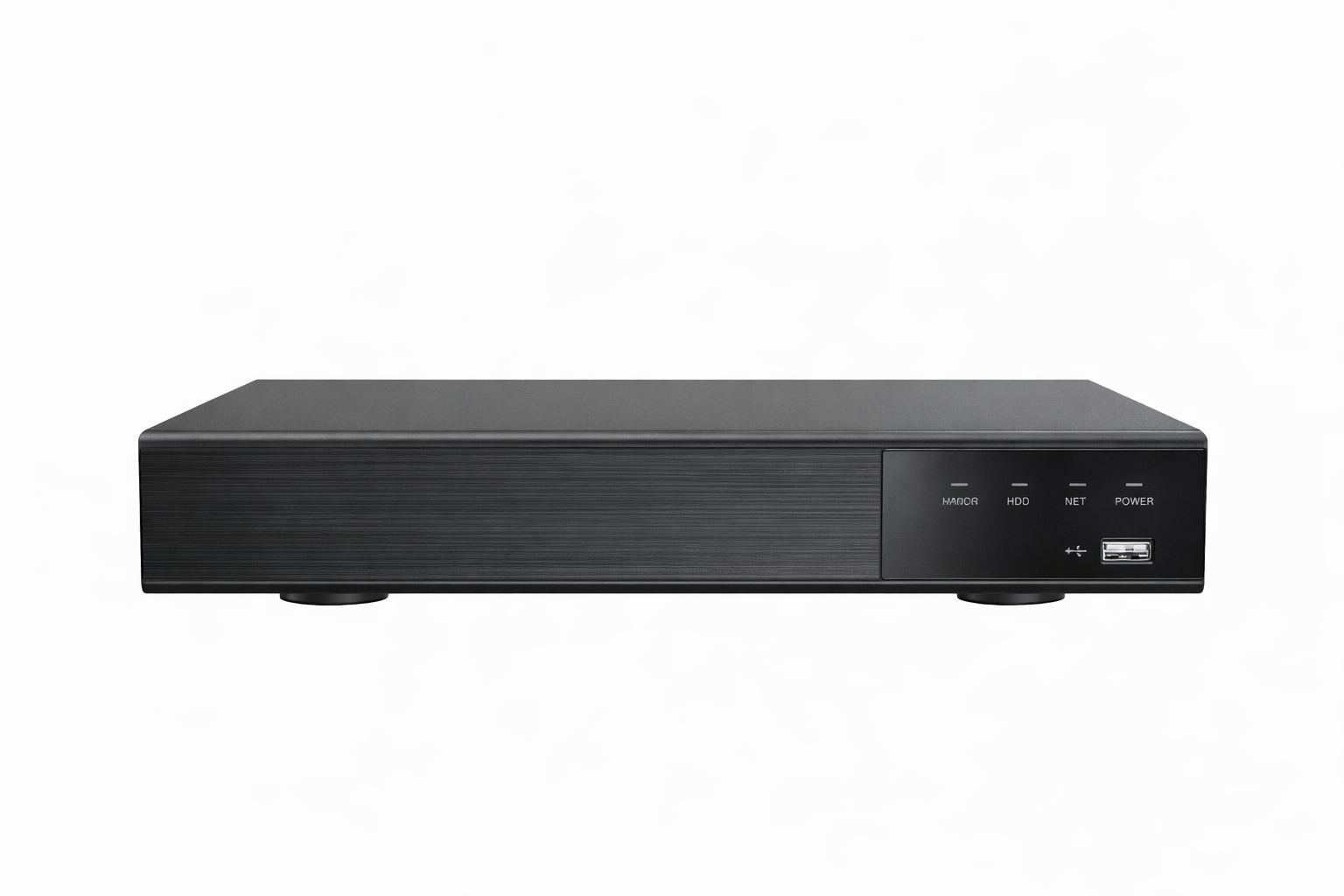

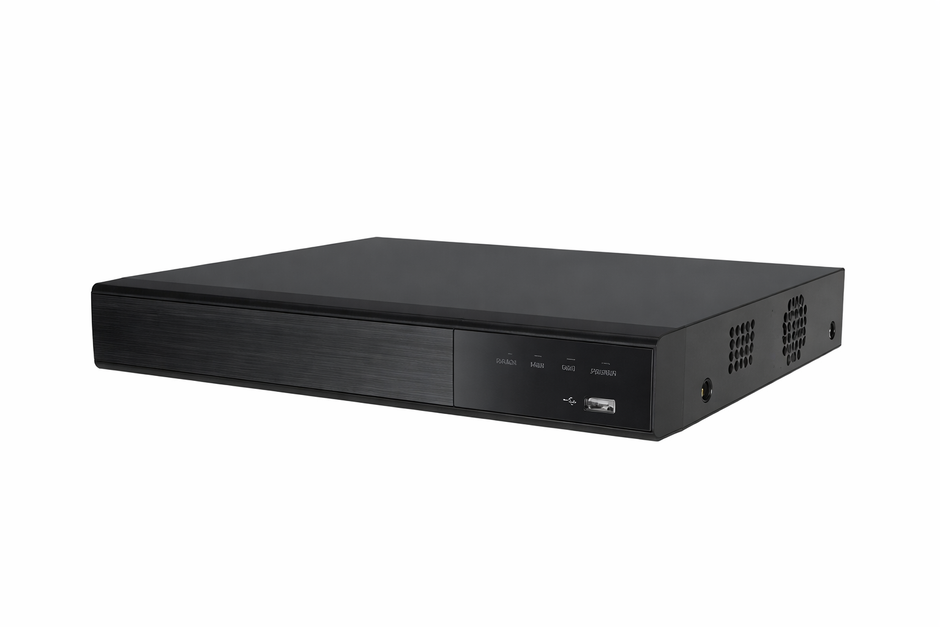

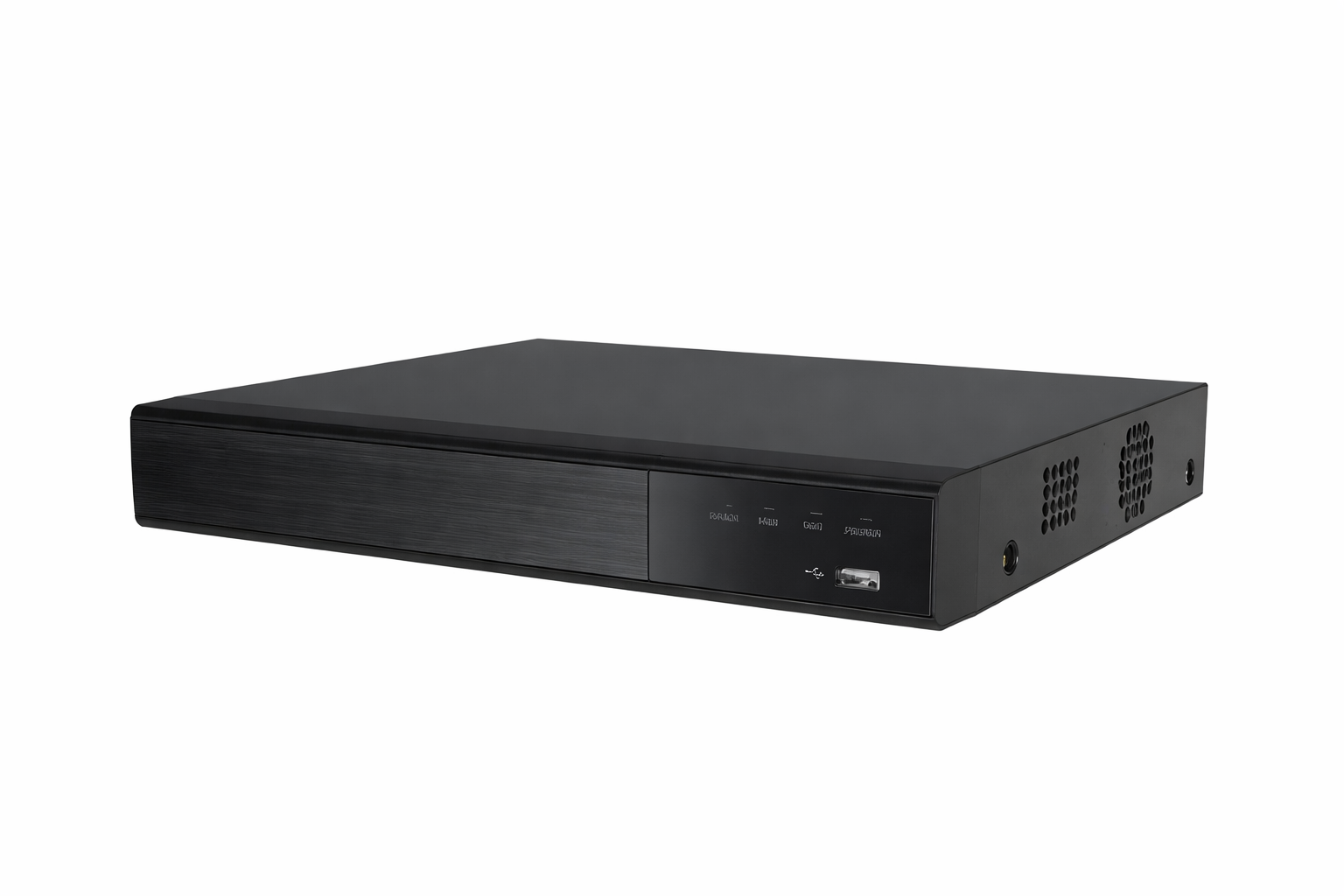

The OCB-LNVR4116K1P8 is a high-performance network video recorder designed to provide robust security and seamless video management.
Increments of 1
Minimum of 1
Maximum of
0Low stock
0In stock, ready to ship
Sale price
$192.86
-100%
Regular price
Regular price
$192.86
Unit price
per
The OCB-LNVR4116K1P8 is a high-performance network video recorder designed to provide robust security and seamless video management.
Sale price
$192.86
Regular price
Regular price
$192.86
Unit price
per
Couldn't load pickup availability
The OCB-LNVR4116K1P8 is a high-performance network video recorder designed to provide robust security and seamless video management. This unit stands out for its ultra-high-definition recording capabilities and integrated 8-port PoE switch, which significantly simplifies installation by powering cameras directly through the Ethernet cable.
Product Features
16CH 8CH POE 4K NVR
- Input: Max. 16CH;
- support (two-way) Audio;
- HD Output:4K(3840x2160)
- Video Compression : H265/H264/H265+/H264+
- 8 x Independent 100Mbps POE Network Interfaces
System & Video Performance
Main Processor: Dual Core Cortex A53 / Embedded LINUX
IP Video Input: 16 Channels (12MP/8MP/5MP/4MP/3MP/1080p/720p/D1)
Video Output: 1x HDMI (4K: 3840*2160), 1x VGA (1920x1080)
Bandwidth: Incoming: 128Mbps / Outgoing: 80Mbps
Compression: H.265 / H.265+ / H.264 / H.264+
Audio, Alarm & Event
Audio I/O: 1x RCA Input / 1x RCA Output (Two-way Intercom supported)
Smart Events: Intrusion, Line Crossing, Enter/Leave Area, Loitering, People Gathering, Face Detection, LPD, Heat Map
Motion Detection: 16 Channels (396 Zones) with Trigger Events (Email, FTP, Pop-up, Buzzer)
Recording & Playback
Local Playback: 1CH 12MP@30fps / 4CH 4MP@30fps / 7CH 1080P@30fps / 16CH 720P@30fps
Decode Capability: 1080P @ 210fps
Search Mode: Video, Picture, Event, Pedestrian, Vehicle, Face, License Plate
Network & PoE Interface
PoE Interface: 8x Independent 100Mbps POE Ports (Plug & Play)
PoE Budget: Total Power Output ≤ 72W (Support for Extended Mode up to 200m)
Network Interface: 1x RJ45 (10M/100M/1000M Adaptive Ethernet)
Onvif: Profile S, Profile T, Profile G
Storage & Physical
Storage Type: 1x SATA Hard Disk Interface (3.5")
Max Capacity: Up to 10TB capacity
USB Interface: 1x USB 2.0 (Front), 1x USB 2.0 (Rear)
Dimensions: 260 x 230 x 43 (mm)
Weight: 1.01 kg (without HDD)
Power Source: DC48V / 1.87A ≤ 10W (Without HDD/PoE)
