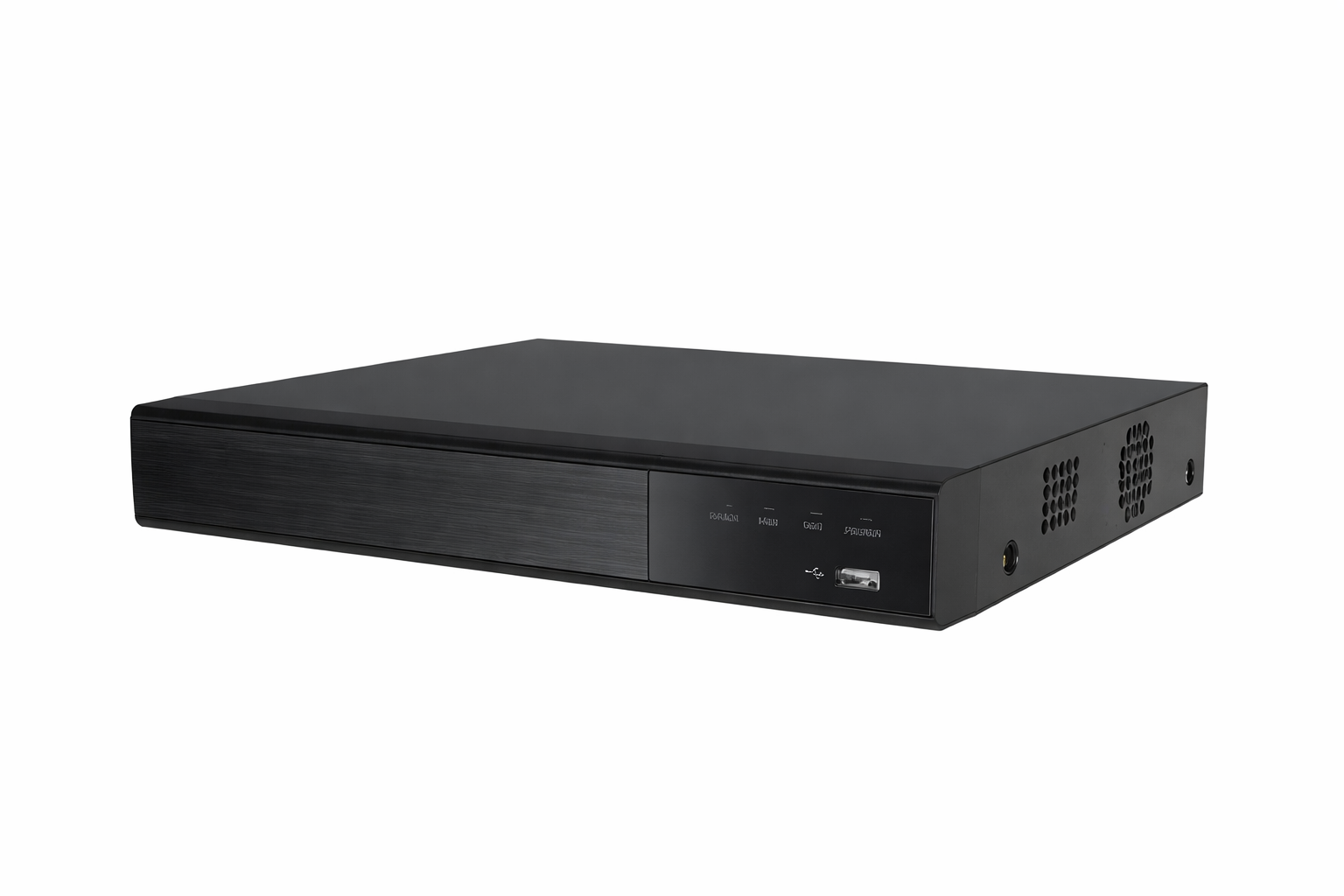

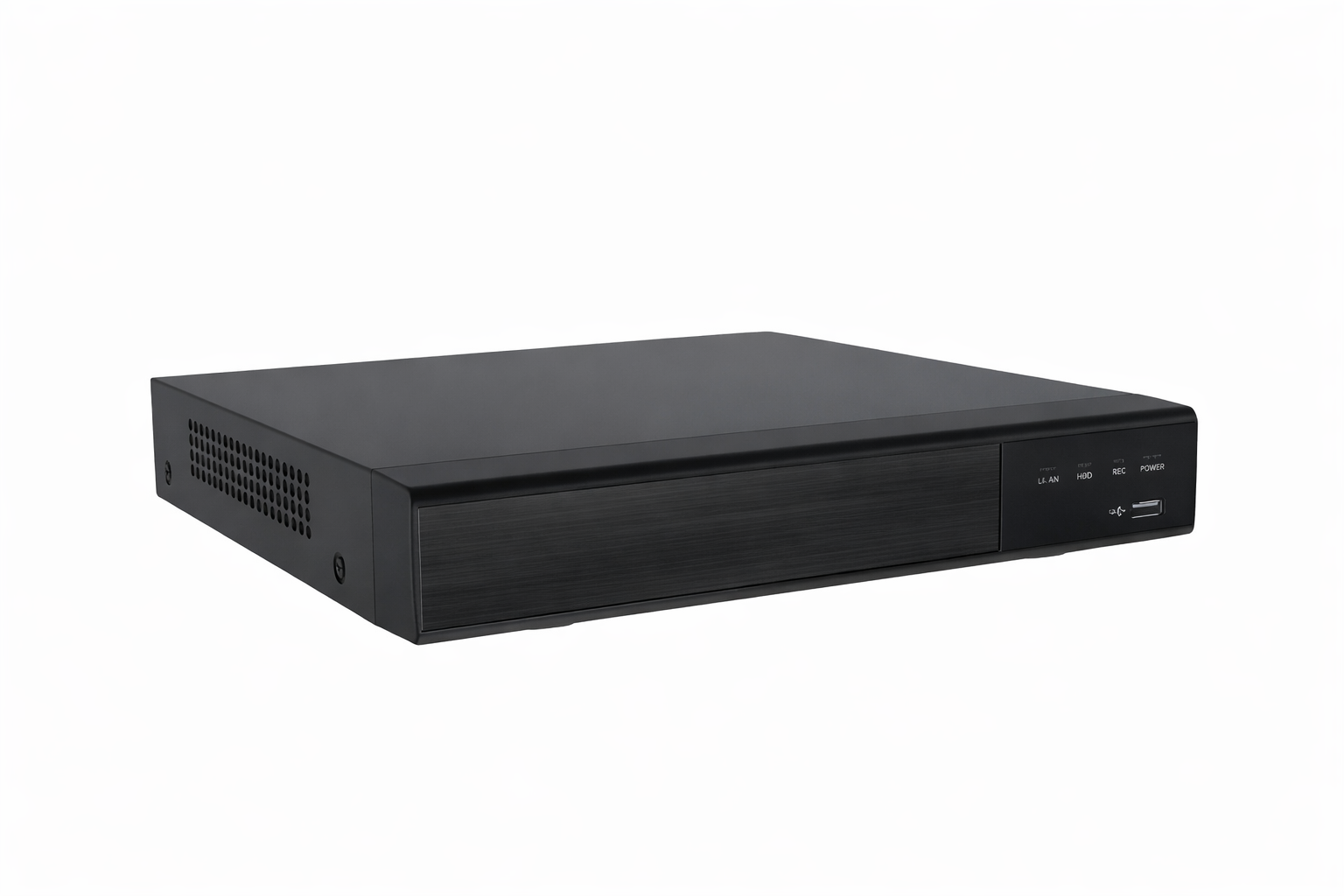

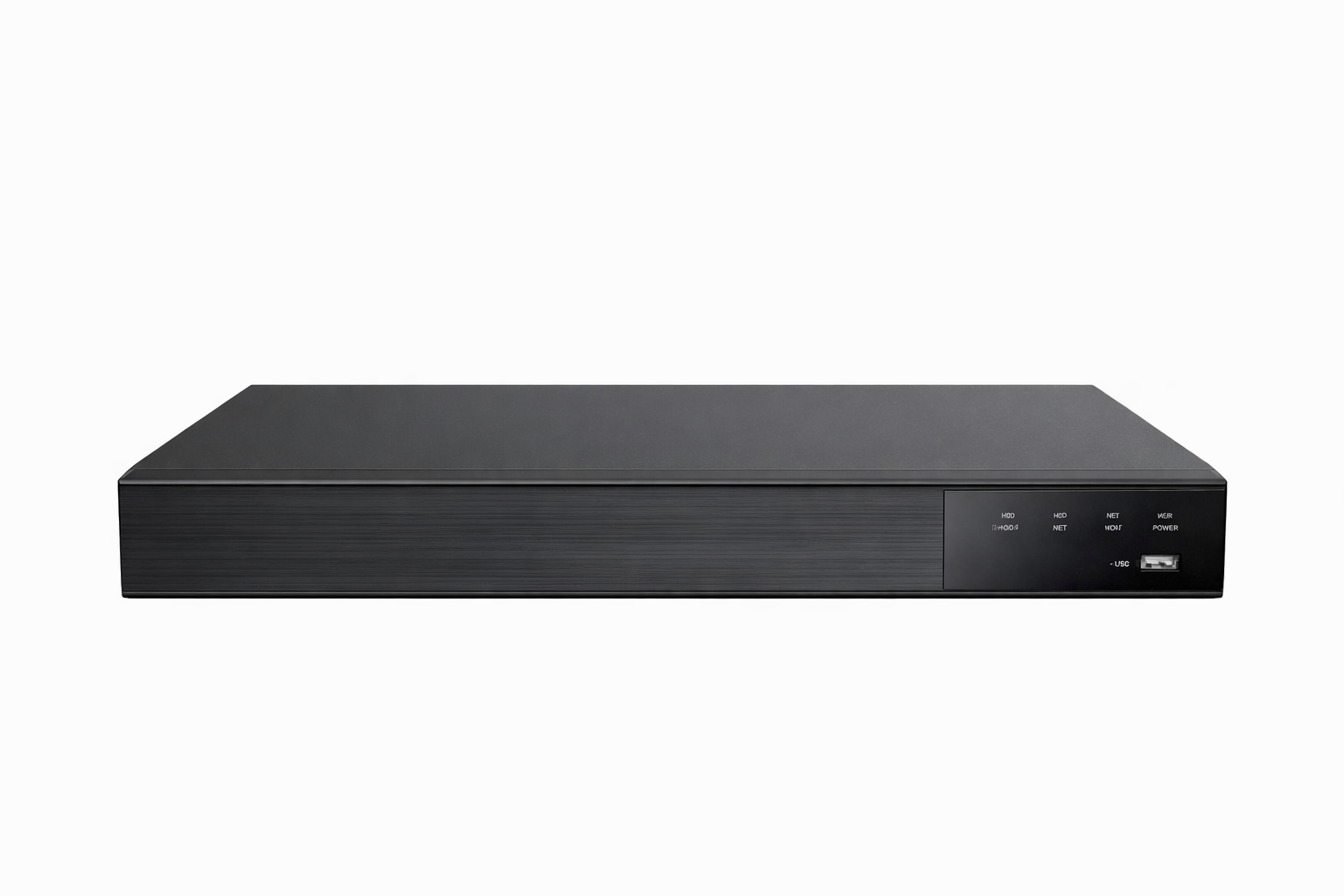

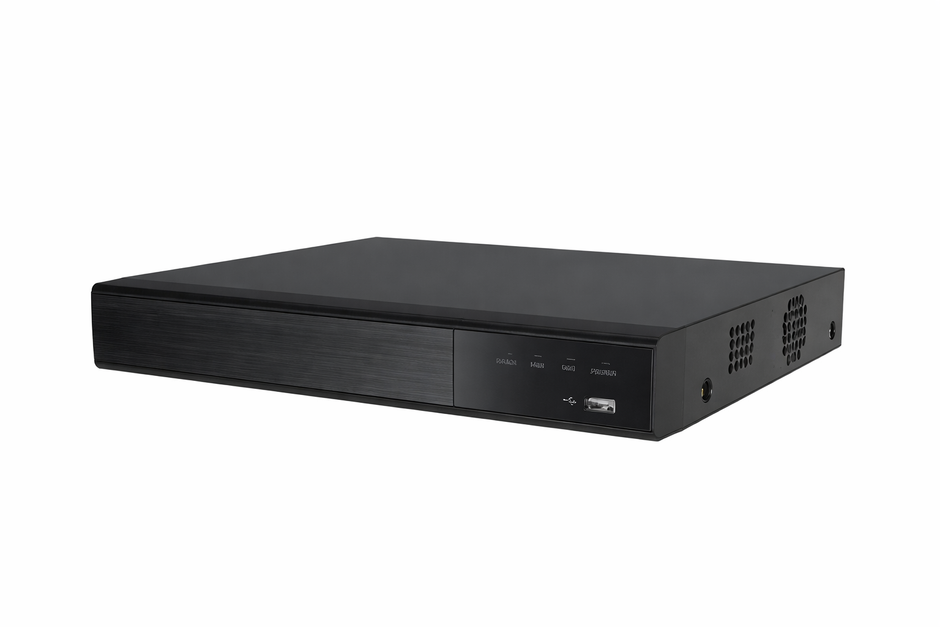

The OCB-LNVR4216K2P16 from OCB is a high-performance, professional-grade 16-Channel 4K Network Video Recorder equipped with 16 integrated PoE ports.

Main Processor: Quad Core Cortex A53 / Embedded LINUX

IP Video Input: 16 Channels (Up to 12MP / 8MP / 5MP / 4MP / 1080p)

Video Output: 1x HDMI (4K: 3840*2160), 1x VGA (1080p)

Bandwidth: Incoming: 160Mbps / Outgoing: 160Mbps

Compression: H.265 / H.265+ / H.264 / H.264+

Audio I/O: 1x RCA Input / 1x RCA Output (Two-way Intercom supported)

Alarm I/O: 4-Channel Sensor Input / 1-Channel Alarm Output

Smart Events: Face Detection, Intrusion, Line Crossing, LPD, Heat Map, People Gathering

Motion Detection: 16 Channels (396 Zones) with Trigger Events (Email, FTP, Pop-up)

Local Playback: 1CH 12MP@30fps / 4CH 4MP@30fps / 8CH 1080P@30fps

Decode Capability: 1080P @ 240fps

Search Mode: Video, Picture, Event, Pedestrian, Vehicle, Face, License Plate

PoE Interface: 16x Independent 100Mbps POE Ports (Plug & Play)

PoE Budget: Total Power Output ≤ 200W (Support for Extended Mode up to 200m)

Network Interface: 1x RJ45 (10M/100M/1000M Adaptive Ethernet)

Onvif: Profile S, Profile T, Profile G

Storage Type: 2x SATA Hard Disk Interfaces (3.5")

Max Capacity: Up to 10TB for each HDD (20TB Total)

USB Interface: 1x USB 2.0 (Front), 1x USB 2.0 (Rear)

Dimensions: 380 x 316 x 51 (mm)

Weight: 2.58 kg (without HDD)

Power Source: 100-240V AC, 50/60Hz ≤ 15W (Without HDD/PoE)
