OCB-T3208-H5MP-H

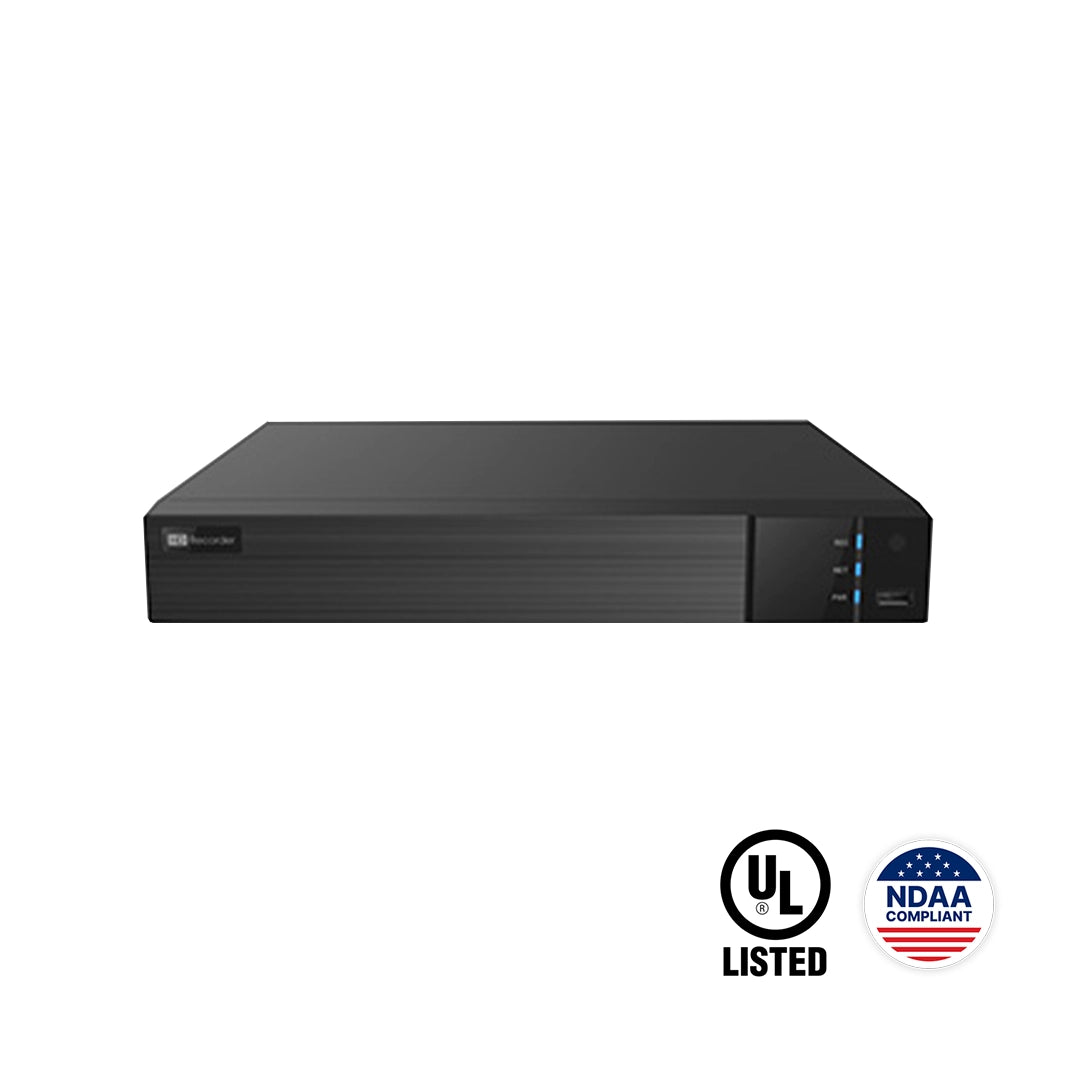

OCB-T3208-H5MP-H – 8CH 5MP Lite Hybrid DVR with AI & Coax Audio

The OCB-T3208-H5MP-H is an advanced 8-channel hybrid DVR supporting TVI/AHD/CVI cameras up to 4K / 5MP, with IP expansion capability and integrated AI smart motion detection and perimeter protection. Featuring H.265/H.265+ compression, coax audio support, and intelligent recording modes, this embedded Linux DVR is designed for professional surveillance systems requiring efficient storage, hybrid flexibility, and AI-enhanced event accuracy.

Product Features

• 4/8CH TVI / AHD / CVI analog input up to 4K / 5MP
• Supports 2–4CH IP input (expandable up to 6–12CH total)
• Analog channels switchable to full IP mode
• H.265 / H.265+ high-profile compression
• Multi-mode recording: manual / timed / sensor / motion / AI
• 4CH / 8CH simultaneous playback
• AI smart motion detection & perimeter protection
• 1080P HDMI & VGA output
• Coax audio support
• Pentaplex operation (preview / record / playback / backup / remote)
• PTZ preset & auto cruise (255 presets, 8 cruises)
• NAT & QR code mobile access
• Remote access via Web Client / CMS
• Mobile surveillance (iOS & Android)
• Single HDD support (up to 10TB)

Product Advantages

• AI human/vehicle classification reduces false alarms
• Hybrid analog/IP architecture supports system upgrades
• H.265+ compression significantly lowers bandwidth and storage use
• Flexible channel switching between analog and IP
• Coax audio simplifies installation infrastructure
• Reliable embedded Linux system for 24/7 operation
• Ideal for mid-size commercial surveillance deployments

Professional Applications

Ideal for:
• Retail stores
• Commercial offices
• Residential buildings
• Small warehouses
• Perimeter monitoring systems
• Analog-to-IP migration projects

The OCB-T3208-H5MP-H delivers 8-channel 5MP Lite hybrid recording with AI smart detection, coax audio support, and efficient H.265+ compression—providing an intelligent and scalable DVR solution for modern surveillance environments.
