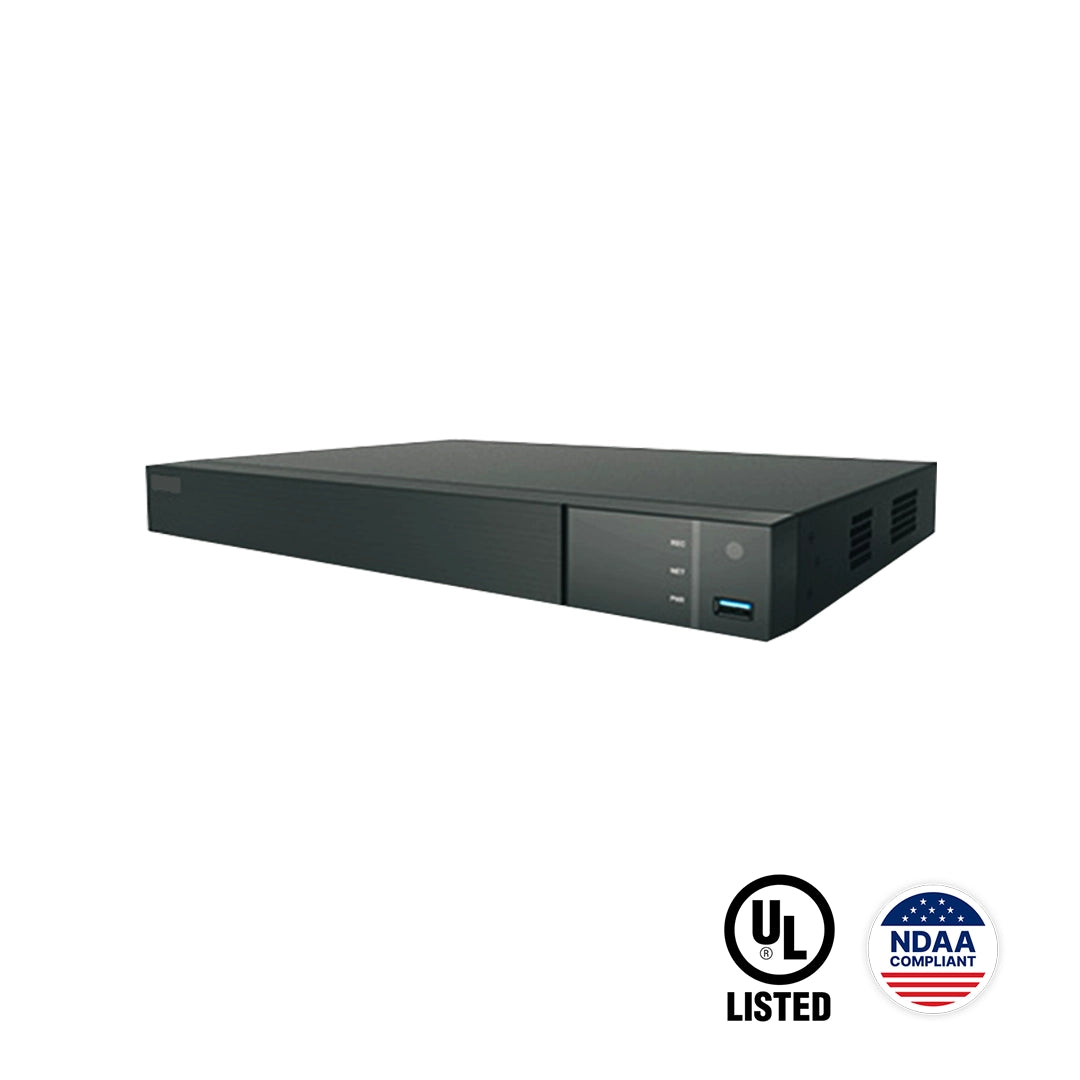

OCB-T3804-H8MP

OCB-T3804-H8MP – 4CH Hybrid 8MP DVR with 4K HDMI Output

The OCB-T3804-H8MP is a professional 4-channel hybrid DVR supporting analog TVI/AHD/CVI cameras up to 8MP, plus 2 additional IP channels, delivering a total of 6CH recording capability. Featuring H.265 high-profile compression, 4K HDMI output, simultaneous 4CH playback, and Pentaplex operation, this embedded Linux DVR provides reliable multi-format recording for small-to-medium surveillance systems. With PTZ control, smart search, and mobile remote access, it is ideal for modern hybrid security deployments.

Product Features

• 4CH analog video input (TVI/AHD/CVI up to 8MP)
• Supports 2CH IP cameras (up to 8MP) – total 6CH input
• H.265 / H.264 compression
• 4CH audio input + 1CH audio output
• Simultaneous 4CH playback
• 4K HDMI output (3840×2160)
• Multi-mode recording: manual / timed / motion / smart event
• Smart search with color-highlighted timeline
• Pentaplex: preview / record / playback / backup / remote access
• PTZ preset & auto cruise (up to 255 presets, 8 cruises)
• NAT function & QR code mobile access
• USB & network backup support
• Embedded Linux OS

Product Advantages

• Hybrid compatibility supports legacy analog and modern IP cameras
• 4K HDMI output ensures true high-resolution display
• Efficient H.265 compression reduces storage usage
• Flexible recording resolutions up to 8MP
• Supports up to 10TB SATA HDD
• Remote access via Web Client, CMS, and mobile apps (iOS/Android)
• Reliable performance for 24/7 operation

Professional Applications

Ideal for:
• Small retail stores
• Offices
• Residential buildings
• Warehouses
• Schools
• Small commercial security systems

The OCB-T3804-H8MP delivers 4-channel 8MP hybrid recording with 4K output, H.265 compression, and flexible analog/IP compatibility in a compact embedded Linux DVR platform.
