OCB-T4832-H5MP

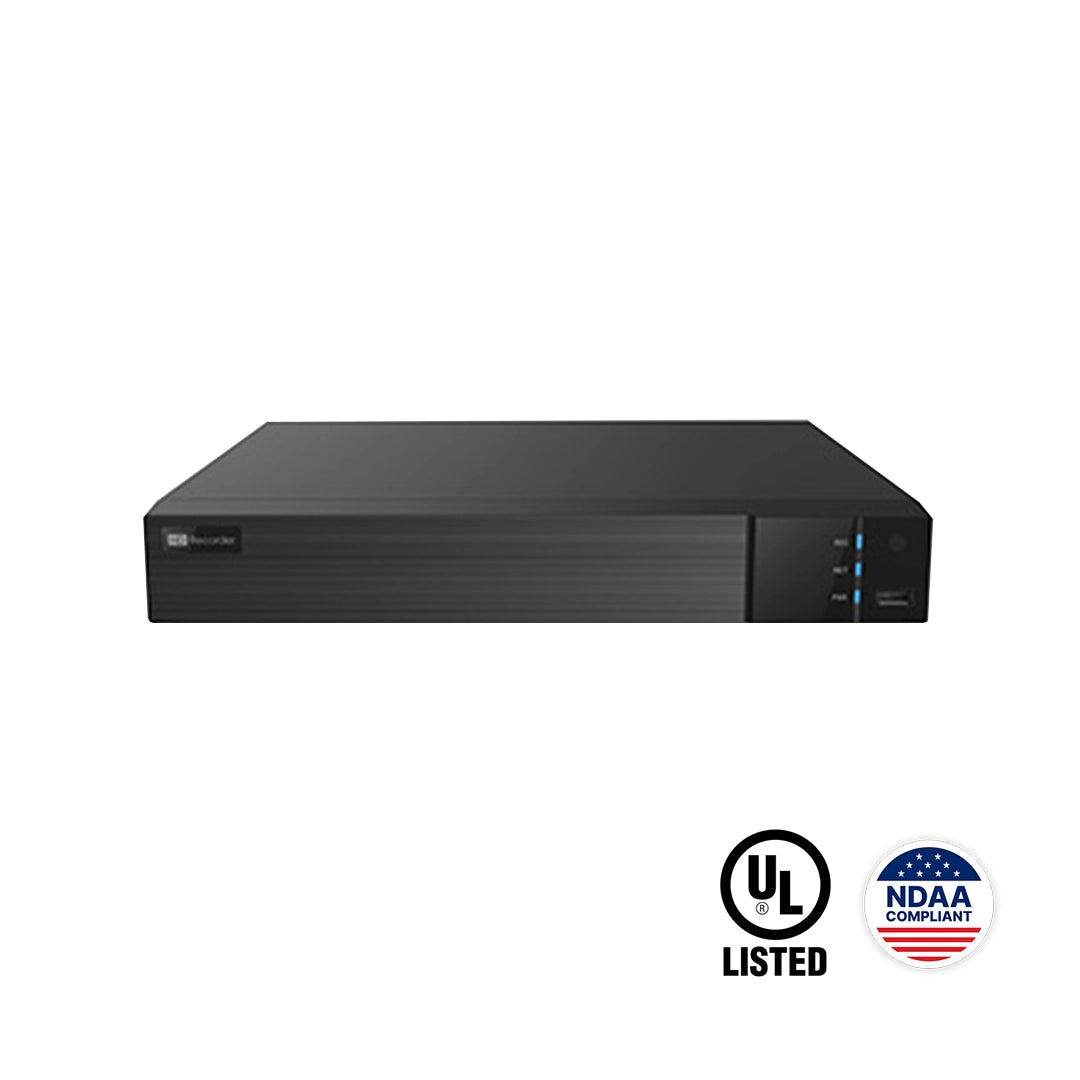

OCB-T4832-H5MP – 32CH 5MP Hybrid DVR with 4 HDD (H.265 Standard DVR, NU-F01)

The OCB-T4832-H5MP is a high-performance 32-channel hybrid DVR supporting TVI/AHD/CVI cameras up to 4K / 5MP, with IP expansion capability and H.265 / H.265+ compression. Designed for enterprise-level surveillance deployments, it features 4 SATA HDD bays, AI smart detection functions, alarm integration, and powerful remote management capabilities. Built on an Embedded Linux platform, it ensures stable 24/7 recording for large-scale installations.

Product Features

• 32CH TVI / AHD / CVI analog input up to 4K / 5MP
• Supports 8CH IP input (expandable up to 24CH IP)
• Total system capacity up to 40 channels
• 16CH analog channels switchable to IP mode
• H.265 / H.265+ / H.264 compression
• 16CH simultaneous playback
• Multi-mode recording: manual / timed / sensor / motion / AI
• Smart search & event-based search
• 1080P HDMI / VGA output
• 16CH audio input
• 4× SATA HDD support (up to 10TB each)
• Alarm I/O integration
• RS485 full-duplex for PTZ
• Gigabit Ethernet interface
• Multi-user remote access
• NAT & QR code mobile access

Product Advantages

• High-density 32-channel centralized monitoring
• Flexible hybrid architecture (analog + IP)
• Enterprise storage scalability with 4 HDD bays
• H.265+ compression reduces bandwidth and storage usage
• AI Smart Motion Detection across 32 channels
• Integrated alarm system for automation projects
• Designed for control rooms and multi-building systems

Professional Applications

Ideal for:
• Industrial complexes
• Shopping centers
• Logistics hubs
• Campus security systems
• Multi-building corporate environments
• Central monitoring stations

The OCB-T4832-H5MP delivers 32-channel hybrid recording, 40-channel total capacity, AI detection features, and scalable 4-HDD storage—providing enterprise-grade DVR performance for large surveillance deployments.
