OCB-UNNVR404-32F2-P16

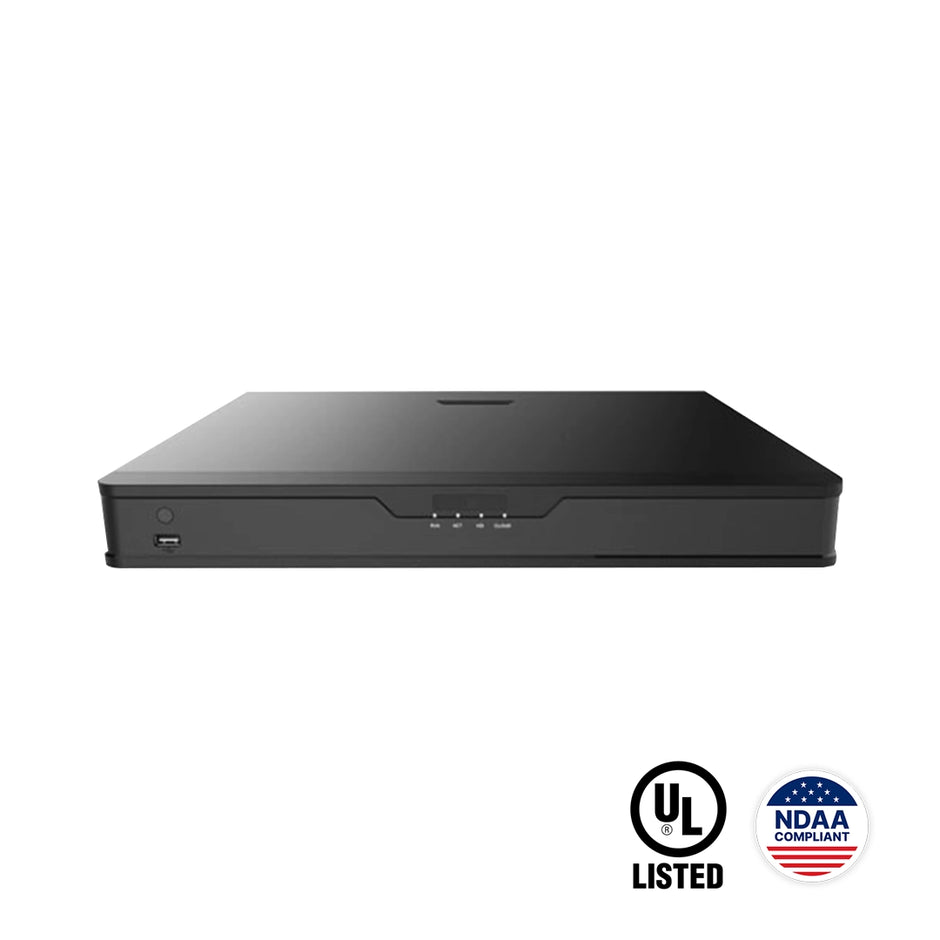

OCB-UNNVR404-32F2-P16 – 32 Channel 4K NVR with 4 HDD Bays

The OCB-UNNVR404-32F2-P16 is a high-performance 32-channel 4K Network Video Recorder designed for large-scale professional surveillance environments. With support for Ultra 265/H.265/H.264, powerful decoding capacity, and extensive storage capabilities, it ensures superior performance, seamless integration, and long-term reliability.

Product Features

• Supports Ultra 265/H.265/H.264 video compression
• 32-channel IP video input for large surveillance deployments
• 16 independent PoE ports for true Plug & Play installation
• Supports ONVIF Profiles S/G/T and RTSP for broad third-party compatibility
• HDMI output up to 4K (3840×2160) for high-definition monitoring
• Supports fisheye dewarping for live view and playback
• Recording resolution up to 12MP for ultra-clear video
• HDMI and VGA simultaneous output
• Advanced VCA including face detection, intrusion detection, object left/removed, and more
• Synchronous playback on 16 channels
• Remote access for up to 128 users

Product Advantages

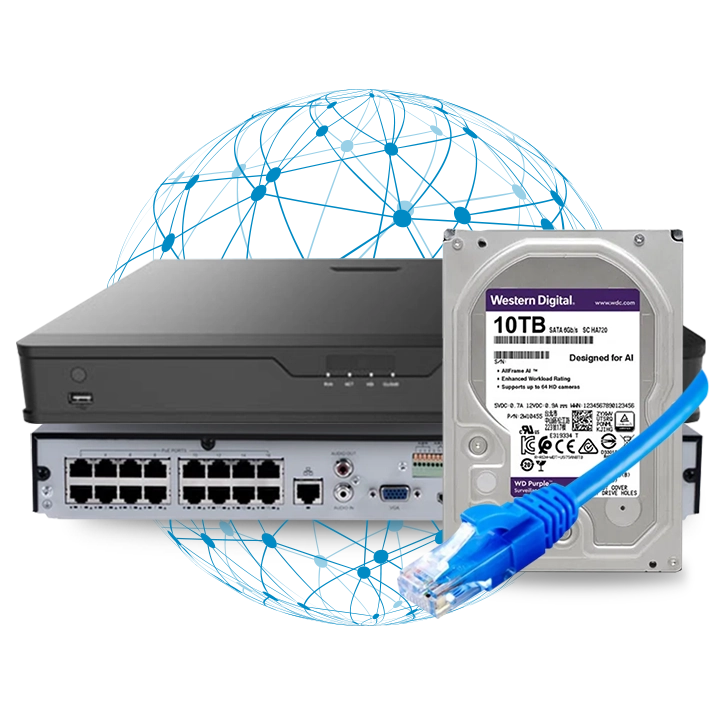

• High-capacity storage with 4 SATA bays, supporting up to 10TB each (40TB total)
• RAID 1 & RAID 5 for data redundancy and performance optimization
• Powerful decoding: up to 4 × 4K @30 fps or 16 × 1080p @30 fps
• Enhanced network bandwidth with 320 Mbps incoming and 256 Mbps outgoing
• Long-term reliability with smart event search, behavior analytics, and people counting
• PoE total budget of 200W, supporting 802.3af/at cameras
• Designed for continuous 24/7 operation in demanding environments

Professional Applications

• Large commercial buildings and office complexes
• Industrial facilities and logistics centers
• Retail chains requiring multi-site surveillance
• Schools, universities, and public institutions
• City surveillance and public security projects
• High-resolution monitoring for critical infrastructure
• Any environment requiring 4K recording, VCA analytics, and extended storage

The OCB-UNNVR404-32F2-P16 delivers professional-grade recording, extensive PoE capability, advanced analytics, and high-capacity storage, making it an ideal solution for large, demanding surveillance installations.
