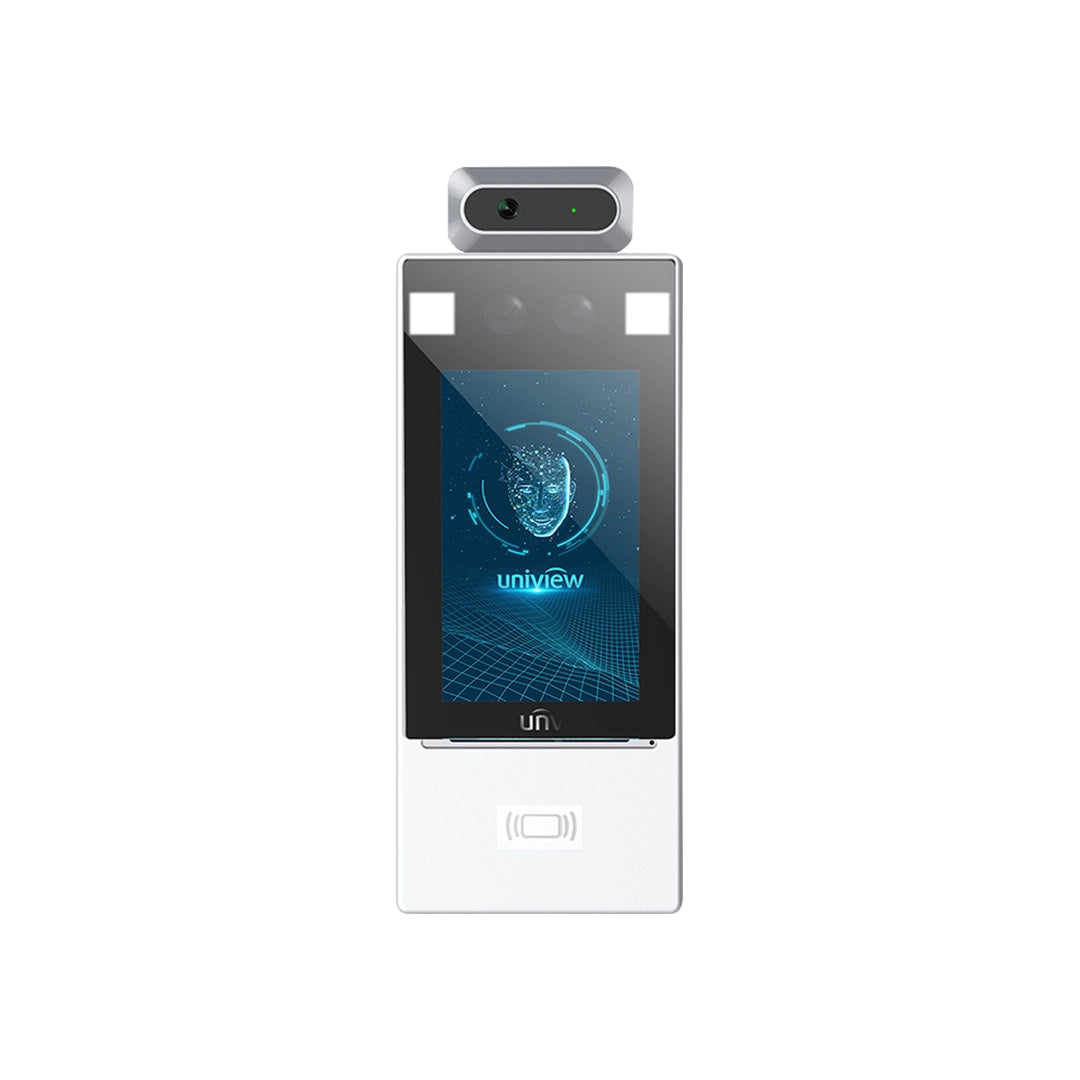

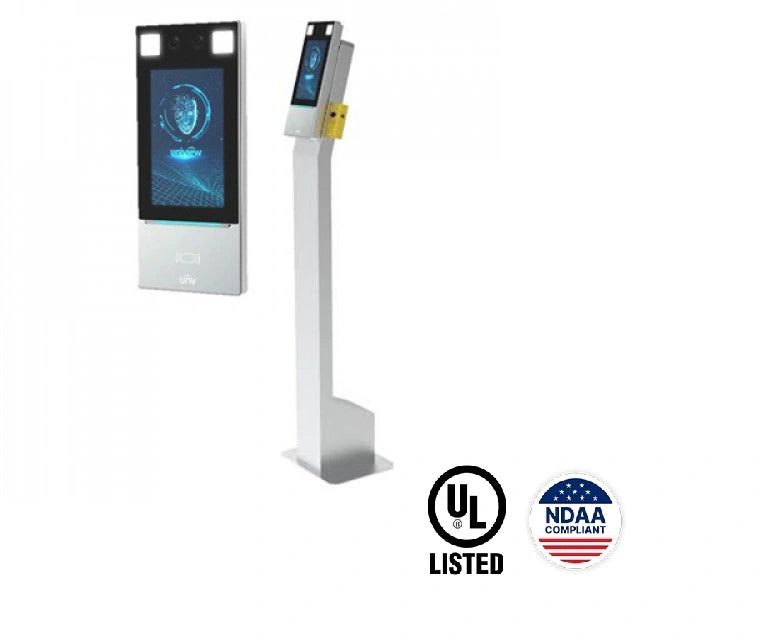

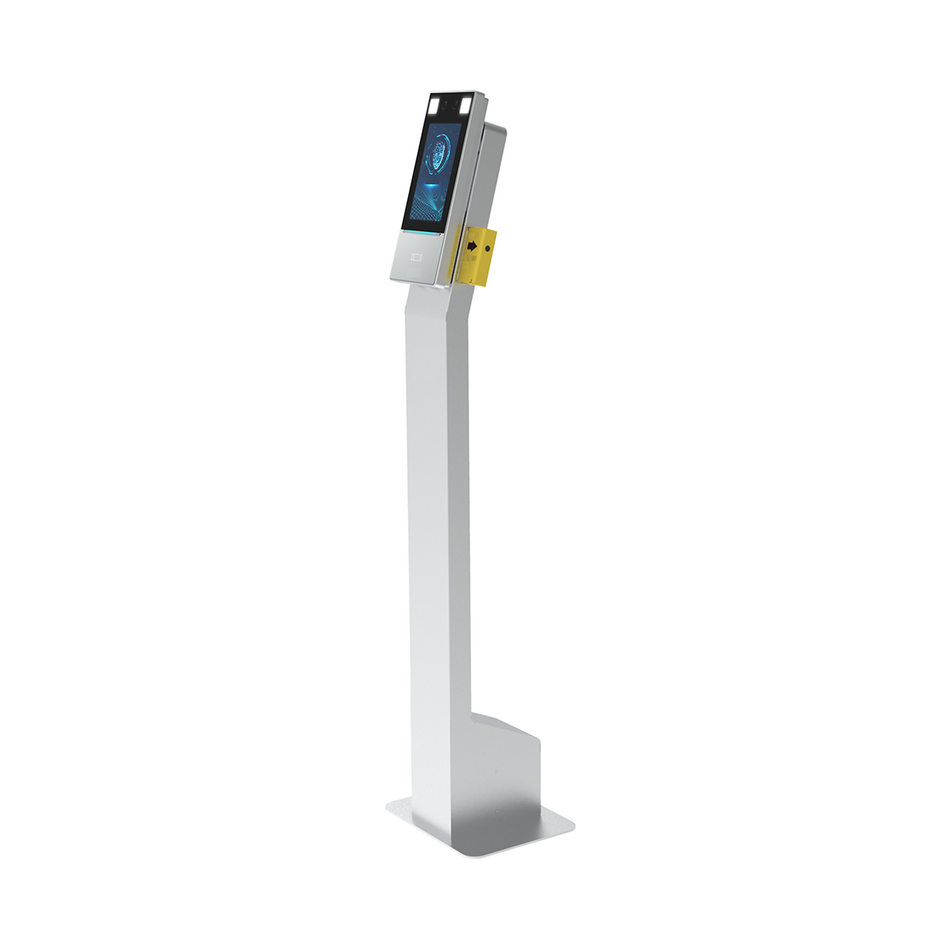

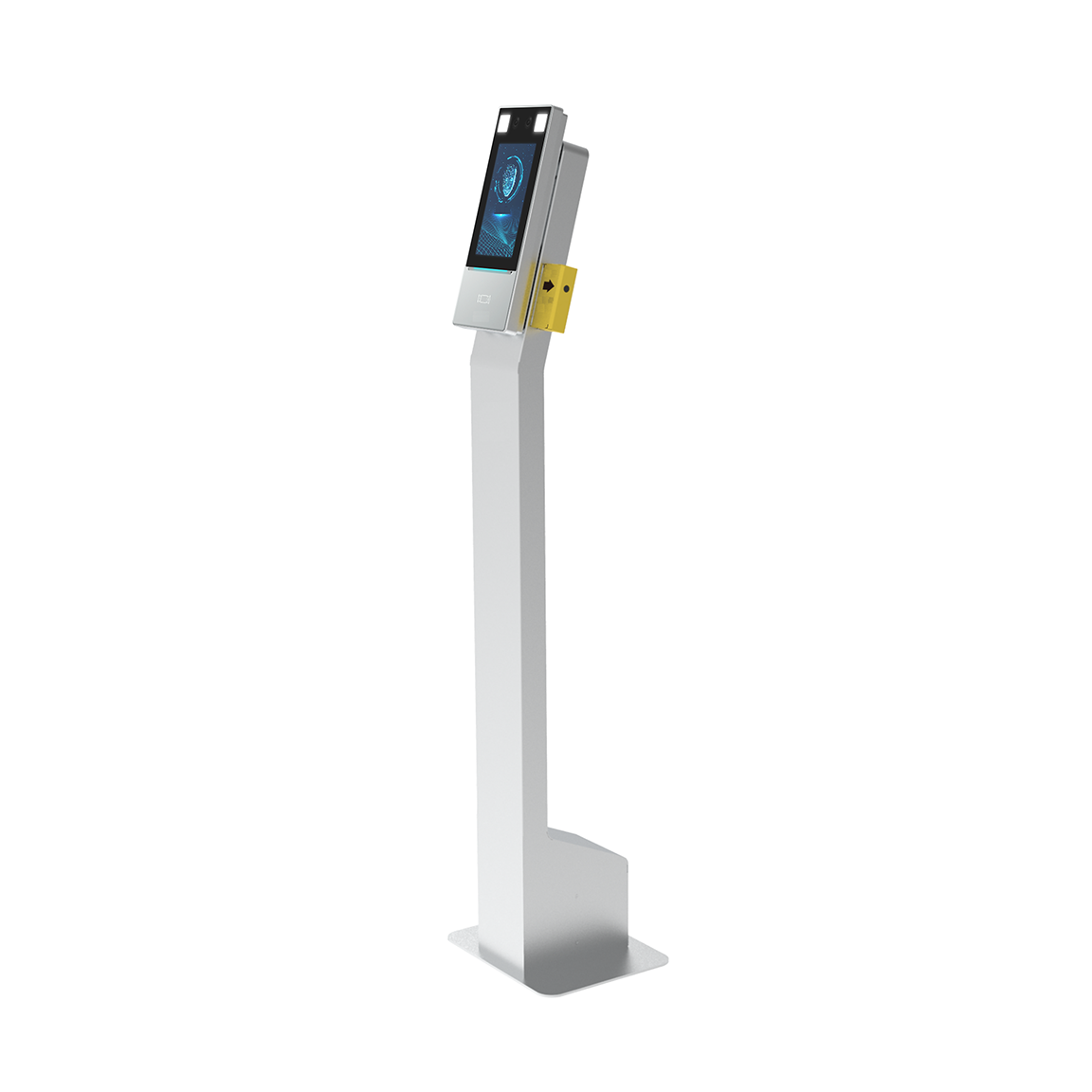

OET-213H-BTS1 – Face Recognition Access Control Terminal with Digital Temperature Detection

Overview

A high-accuracy face recognition access control terminal integrating a non-contact digital wrist temperature detection module, designed for secure, hygienic, and fast identity verification in professional environments. Leveraging deep learning and dual-camera imaging, the OET-213H-BTS1 provides rapid authentication and precise temperature screening for high-traffic access points.

Product Features

• Non-contact wrist temperature detection (30°C–45°C) with ±0.3°C deviation and 0.1°C accuracy
• Temperature measurement distance: 1–4 cm
• Supports temperature threshold configuration and automated access control based on temperature rules
• Wrist distance detection improves overall measurement stability and accuracy
• Temperature data can be bound to personnel information for easy tracking
• Deep learning model with >99% face recognition accuracy and <1% false rate
• 0.2-second recognition speed with dedicated offline deep-learning chip
• Supports 10,000 faces and 100,000 cards
• WDR-enabled 2MP wide-angle camera with F1.6 aperture for high-quality images in complex light conditions
• Supports mask detection
• Multiple authentication modes: face, card, QR, password, face + temperature
• Professional interface set: LAN, Wiegand I/O, RS485, alarms, USB, lock output, door contact, exit button
