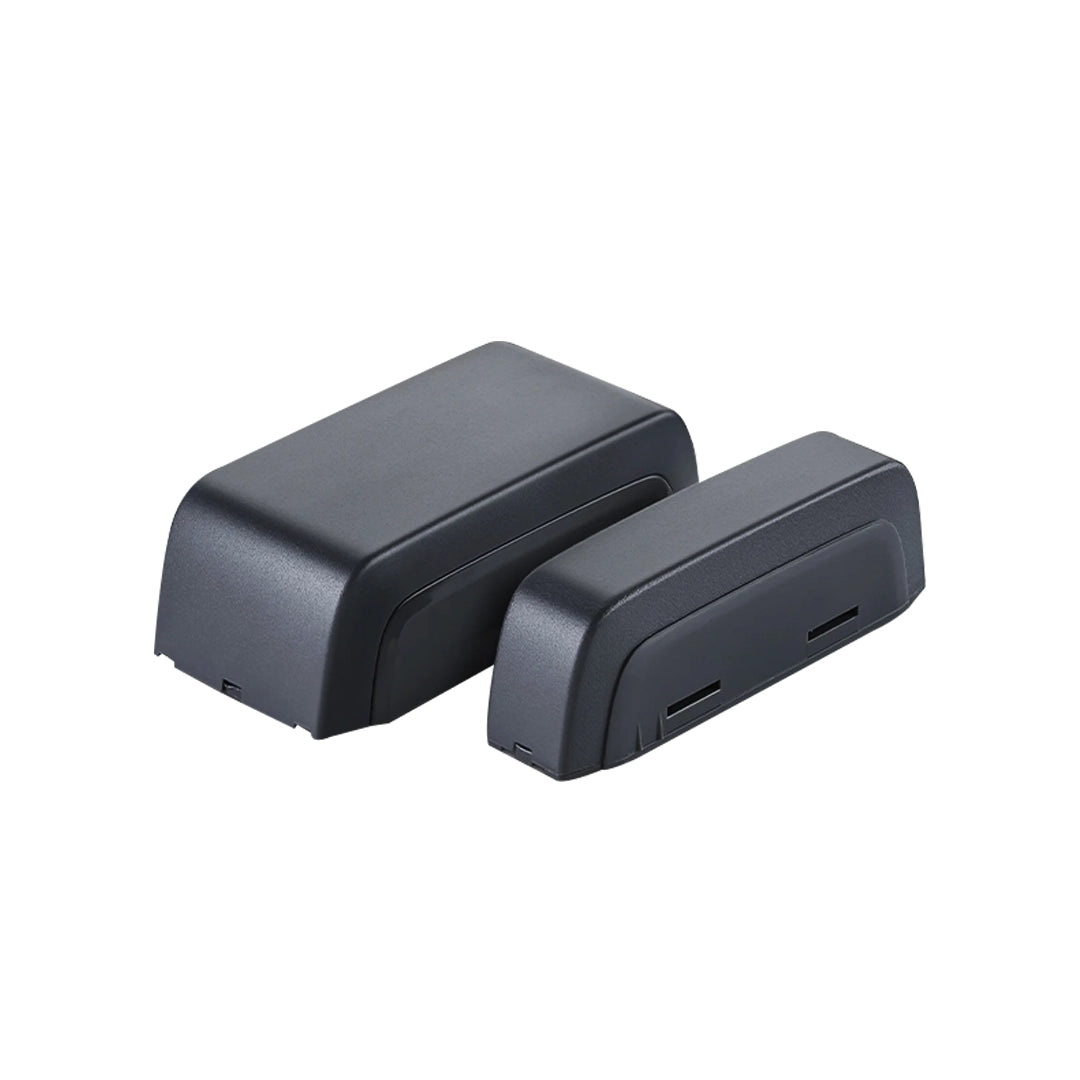

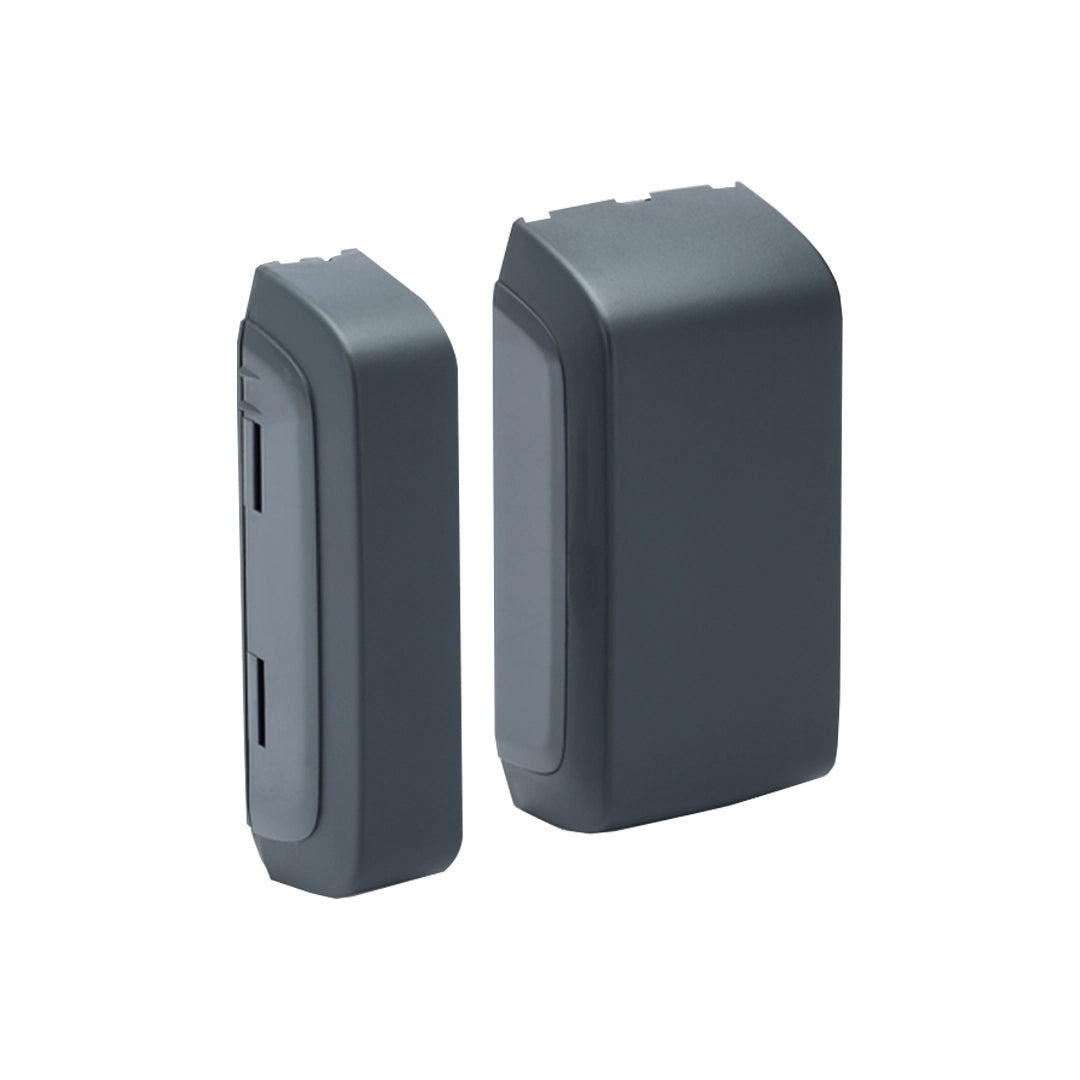

PG9312 – PowerG Wireless Outdoor Magnetic Contact with Auxiliary Input

Overview

The PG9312 PowerG Wireless Outdoor Magnetic Contact is engineered for high-traffic and harsh outdoor environments, providing reliable protection for windows, gates, and doors. With robust weatherproof construction, long-lasting battery life, and anti-masking technology, it delivers dependable performance even under extreme conditions. This advanced device combines a magnetic contact and temperature sensor to ensure superior perimeter security for commercial and residential properties alike.

Detailed Product Description

Model: PG9312
Type: Wireless Outdoor Magnetic Contact with Auxiliary Input

Powered by PowerG leading-edge wireless technology, the PG9312 offers the same reliability as wired systems while eliminating cable limitations. Its IP66-rated design ensures protection against dust, water, and extreme temperatures. The auxiliary input enables connection to standard hardwired contacts, while anti-masking prevents intruders from tampering or obstructing the sensor. Installation is quick and precise using link quality LED indicators and auto-enrollment via pull tab.

Key Features

• Long-lasting battery life: Up to 5 years under typical use conditions.
• Auxiliary input: Easily connects additional hardwired contacts for expanded coverage.
• IP66 dust-tight and waterproof rating for reliable outdoor operation.
• Tamper-resistant housing ensures enhanced protection.
• Advanced PowerG wireless technology delivers stable two-way communication and long-range performance.
• Fast installation: Features link quality LED indicators and auto-enrollment pull tab.
• Wide magnetic gap tolerance minimizes false alarms caused by wind or animals.
• Frequency: USA – 912–919 MHz; Europe & Rest of World – 433–434 MHz / 868–869 MHz.
• Battery type: Two 1.5 V lithium batteries.
• Battery life: Up to 5 years (typical use).
• Dimensions: 105 × 52 × 35 mm (4.12 × 2 × 1.37 in).
• Weight: 154 g (5.4 oz) including batteries.
• Operating temperature: –40 °C to 66 °C (–40 °F to 151 °F).
• Approvals: FCC/IC, UL/ULC, CE, EN.

Professional Applications

The PG9312 is ideal for industrial, commercial, and outdoor perimeter protection where durability and reliability are essential. Its anti-masking and temperature sensing features (supported on PowerSeries Pro and PowerMaster v20.2+) make it a top choice for security gates, outdoor enclosures, and external doors.

System Compatibility:
• PGx312 – Compatible with PowerSeries Neo, PowerSeries Pro, WP, iotega, and Qolsys IQ Panel 2 Plus systems.
• MC-312 – For PowerMaster systems.
• BW-312 – For Bentel BW systems.
