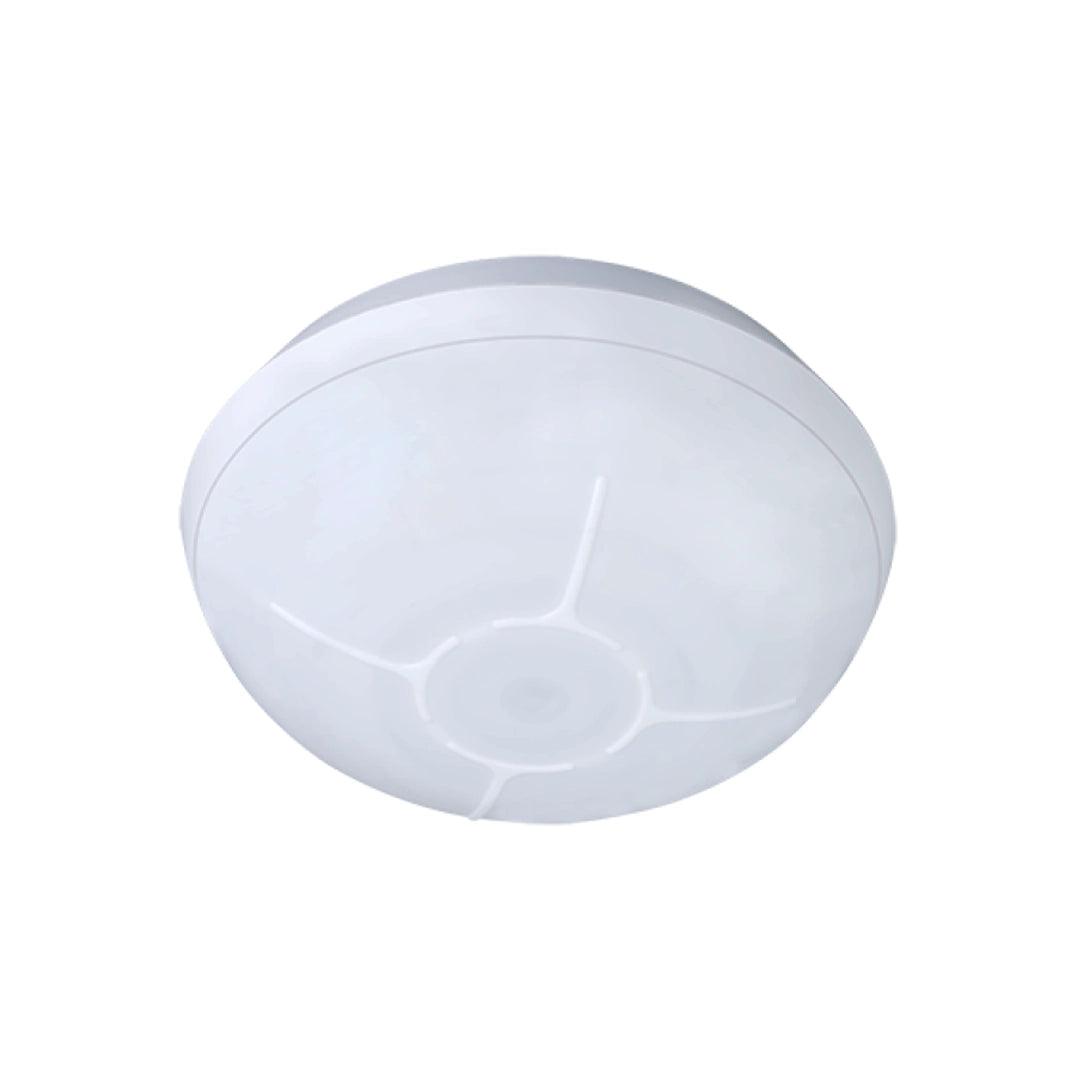

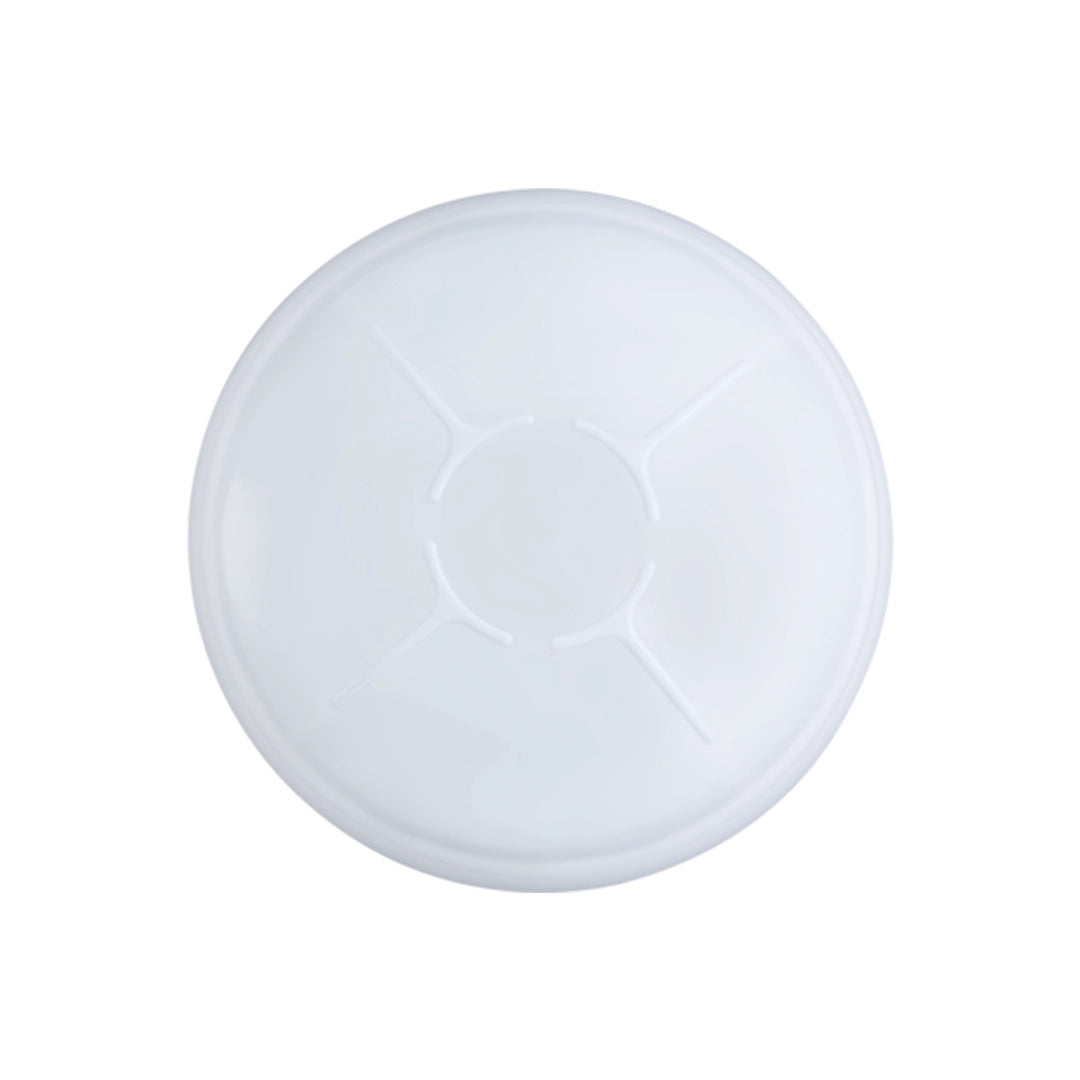

PG9862 – PowerG Wireless 360° Ceiling-mount PIR Detector

Superior motion detection, from every angle.

The PG9862 Wireless 360° Ceiling-mount PIR Detector is a compact and reliable motion detector designed for homes and small businesses. With a 10 m (32.8 ft) coverage radius, it provides complete 360-degree motion detection from a single ceiling-mounted device. Visually discreet and tamper-resistant, it combines elegant design with advanced PowerG wireless technology for dependable performance and reduced false alarms.

Overview

The PG9862 delivers full-room 360° motion detection ideal for small to medium-sized spaces. Its ceiling-mount design eliminates blind spots while maintaining aesthetic appeal. The detector communicates securely via PowerG’s two-way wireless protocol, ensuring high transmission reliability and strong resistance to interference.

Key Features

• Provides 360° motion detection from a single ceiling-mounted unit
• Covers up to 10 m (32.8 ft) in diameter — ideal for small to mid-sized rooms
• Operates on PowerG leading-edge wireless intrusion technology with robust two-way communication
• Modern, unobtrusive design minimizes visual impact
• Up to 5-year battery life for long-term reliability and minimal maintenance
• Simple and quick installation process
• Multichannel, Frequency-Hopping Spread Spectrum (FHSS) – overcomes interference and frequency blocking
• Adaptive transmission power extends battery life
• TDMA synchronized communication prevents message collisions
• 128-bit AES encryption provides advanced protection against digital attacks

Technical Specifications

• Frequency: Europe & Rest of World – 433-434 MHz / 868-869 MHz | USA – 912-919 MHz
• Detection Coverage: 10 m (32.8 ft) diameter / 360° view
• Battery Type: 3 V CR-123A lithium battery
• Battery Life: Up to 5 years (typical use)
• Weight (including battery): 110 g (3.88 oz)
• Operating Temperature: –10 °C to 50 °C (14 °F to 122 °F)
• Operating Environment: Indoors
• Size (Diameter): 10.6 cm (4.2 in)
• Approvals: FCC/IC ; UL/ULC ; CE ; EN ; CNC ; RCM

Compatibility

• PGx862 – Compatible with PowerSeries Neo and iotega systems
• MP-862 PG2 – Compatible with PowerMaster systems
• BW-862 – Compatible with BW systems
