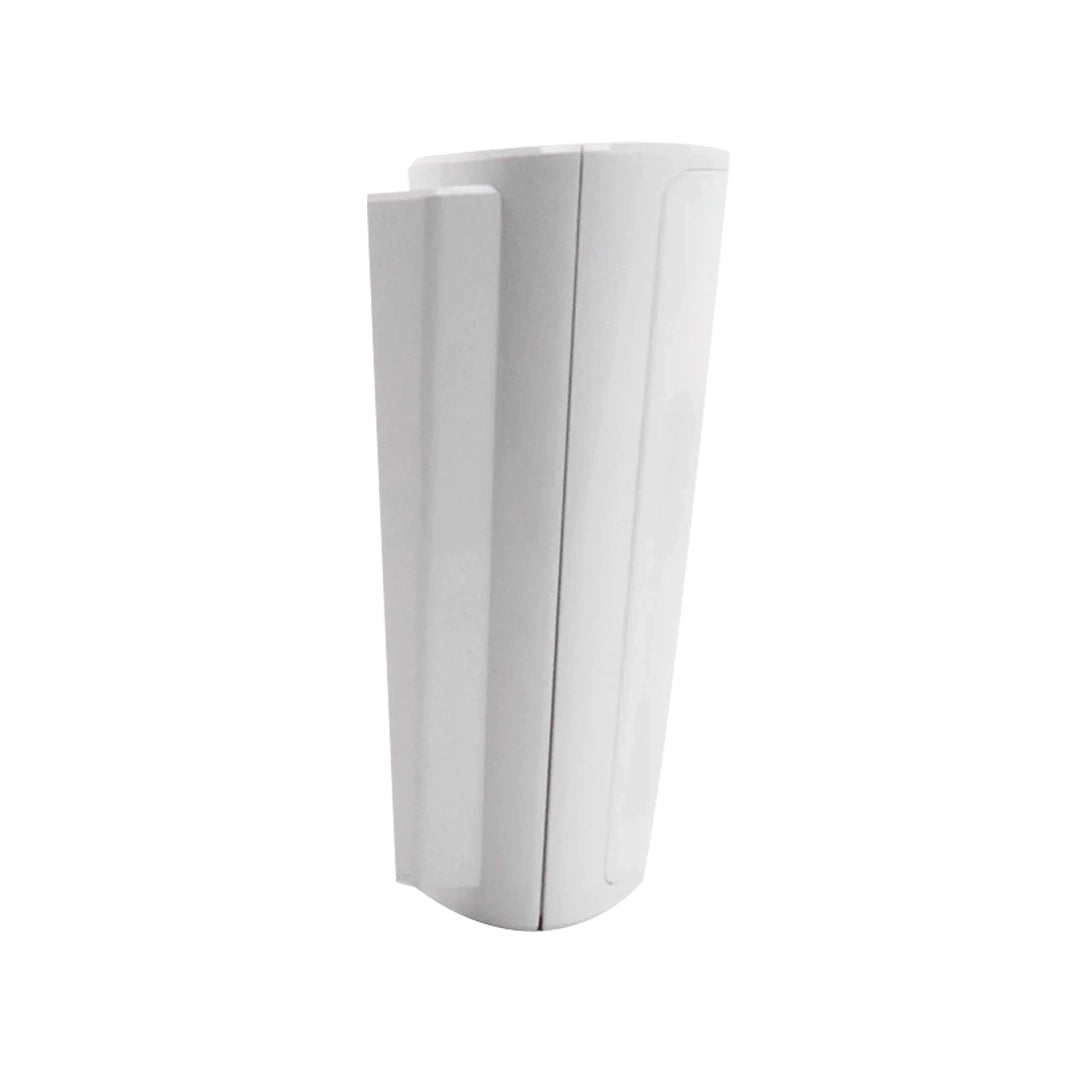

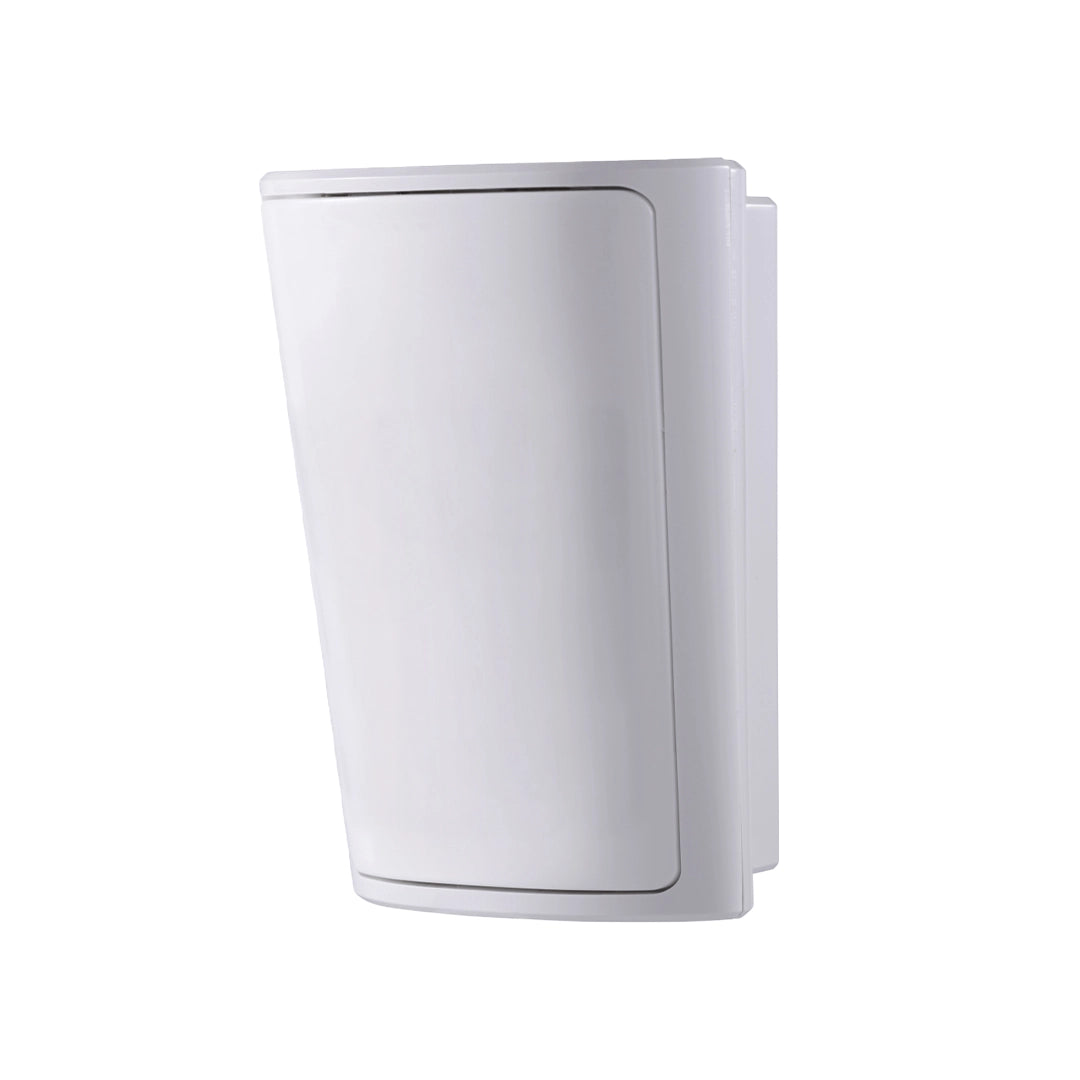

PG9914 – Wireless PowerG Digital Pet-Immune PIR Motion Detector Smart Dual-Function Indoor Detection and Temperature Monitoring

Overview

The PG9914 Wireless PowerG Digital Pet-Immune PIR Motion Detector is a compact, smart indoor sensor that combines motion detection and temperature monitoring in a single device. Designed for homes, offices, and small to medium-sized businesses, it provides reliable intrusion detection with reduced false alarms, using advanced PowerG wireless technology for secure, long-range communication.

Reliable and Intelligent Detection

The PG9914 delivers superior motion detection accuracy by distinguishing real intrusions from environmental disturbances and pet movement. Its Target Specific Imaging™ (TSI) technology ensures pet immunity for animals weighing up to 38 kg (85 lb), making it ideal for spaces with pets or high-traffic indoor areas.

Equipped with Fresnel and cylindrical lenses, the detector provides uniform 12 m (39 ft) coverage without requiring vertical adjustments, maintaining consistent sensitivity across its detection field.

Easy Installation and Maintenance

Engineered for installer efficiency, the PG9914 includes an accessible battery compartment, no-adjustment lens design, and long-life battery for up to 8 years of typical use. The PowerG link quality LED simplifies setup, and maintenance is minimized with low power consumption and quick battery replacement.

PowerG Technology – Secure, Long-Range, and Efficient

Built on PowerG’s advanced wireless platform, the detector offers up to 2 km (2187 yards) line-of-sight communication, multichannel frequency hopping, and TDMA synchronized transmission to prevent interference and message collisions. 128-bit AES encryption ensures high-level protection against digital attacks, while adaptive transmission power extends battery life.

Key Features

• Dual-function detection – motion and temperature monitoring in one device
• Pet-immune with Target Specific Imaging™ – distinguishes humans from pets up to 38 kg (85 lb)
• Uniform 12 m (39 ft) coverage – no vertical adjustments required
• PowerG wireless technology for reliable, encrypted communication
• Quick installation – LED signal strength indication for optimal placement
• Long-life 3 V CR-123A lithium battery – up to 6–8 years of operation
• Tamper protection on both front and back covers
• Modern, compact design – ideal for discreet corner installation
• Frequency Hopping Spread Spectrum (FHSS) and TDMA – prevent interference and collisions
• 128-bit AES encryption – ensures secure communication

** Professional Applications**
Ideal for residential, commercial, and office environments requiring reliable motion and temperature detection with pet immunity. The PG9914 offers professional-grade security and smart functionality, seamlessly integrating into PowerSeries Neo systems.

Technical Highlights

• Detection Range: 12 m (39 ft)
• Pet Immunity: Up to 38 kg (85 lb)
• Dimensions: 83 × 61 × 42 mm (3.27 × 2.4 × 1.66 in)
• Weight (including battery): 90 g (3.17 oz)
• Battery Type: 3 V CR-123A lithium battery
• Battery Life: 6–8 years (typical use)
• Operating Temperature: –10 °C to 50 °C (14 °F to 122 °F)
• Operating Environment: Indoors
• Tamper Protection: Front cover and back
• Approvals: FCC/IC, UL/ULC, CE, EN, SBSC, INCERT, RCM

Compatibility

• PowerSeries Neo Systems | Frequency: 915 MHz
