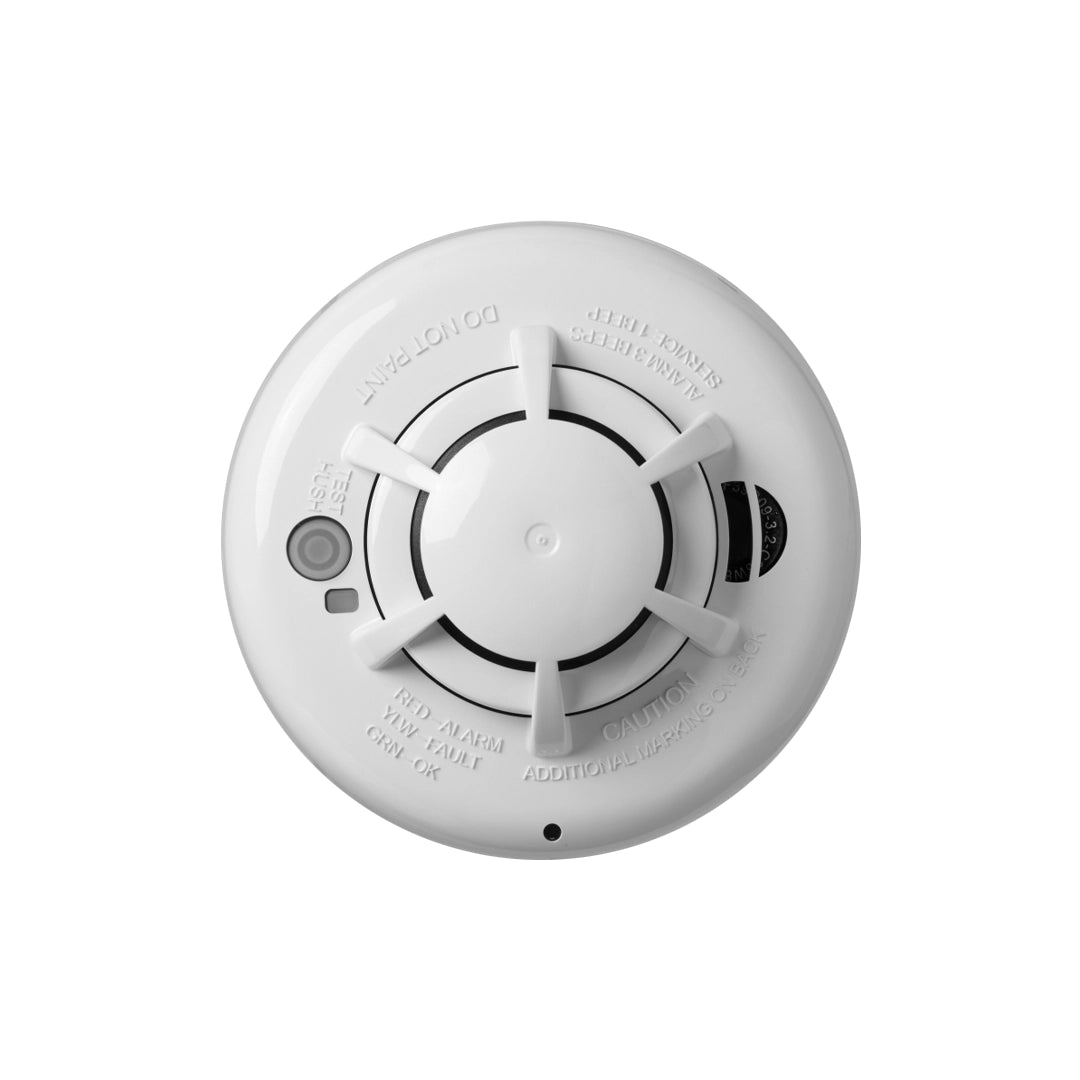

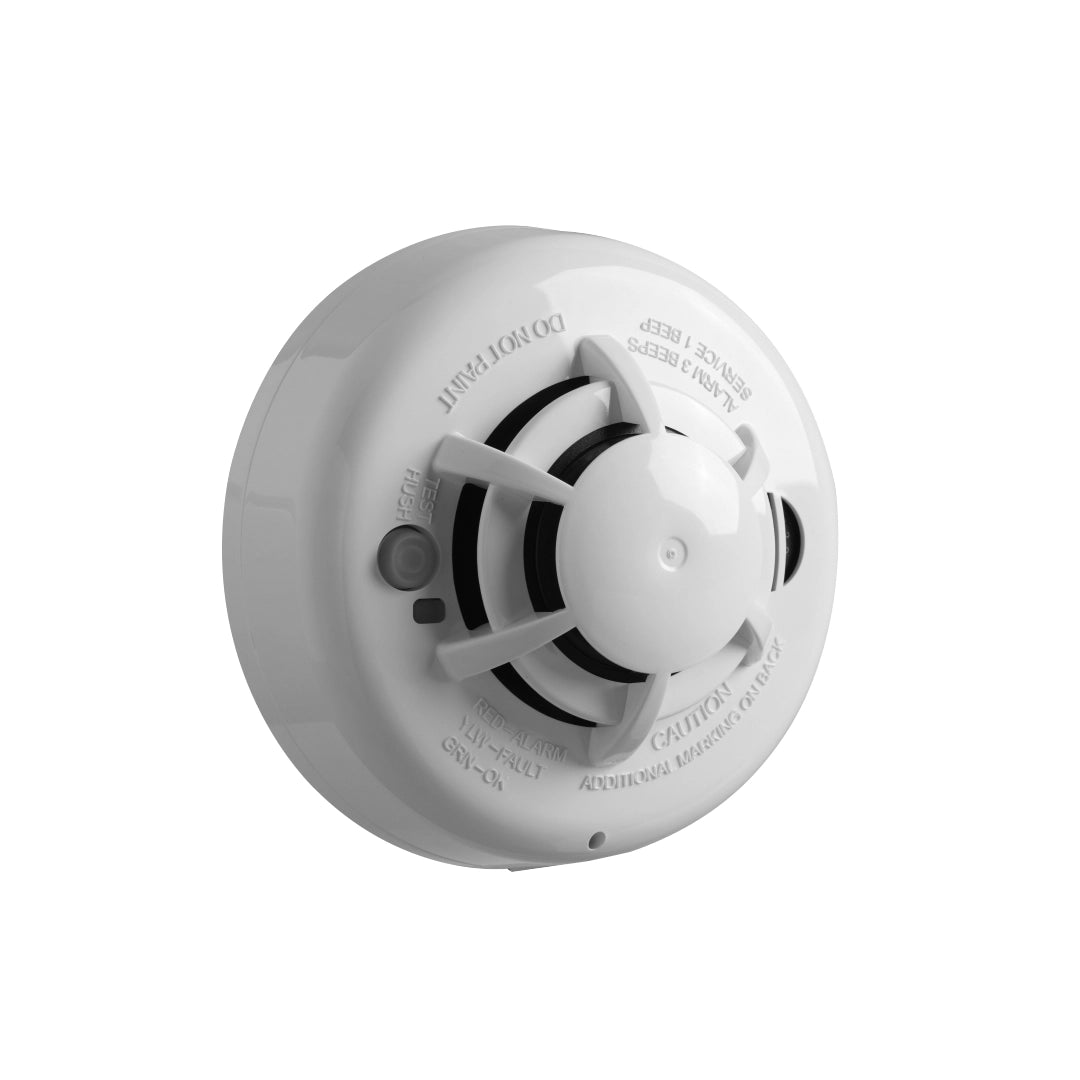

PG9936 – PowerG Wireless Smoke & Heat Detector

Overview

The PG9936 PowerG Wireless Smoke & Heat Detector provides reliable early fire detection for residential and commercial applications. When smoke or high temperatures above 135°F (57°C) are detected, the device activates an 85 dB audible alarm and a flashing LED indicator, while simultaneously sending a coded signal to the control panel to trigger the system siren for assistance.

Its wireless PowerG technology allows flexible placement and eliminates the need for wiring, making it ideal for both new installations and retrofit projects.

Main Features

• Dual Detection Technology — Detects both smoke and excessive heat for faster and more accurate alerts.
• Audible and Visual Alarms — Emits an 85 dB sound and LED flashes for clear fire warnings.
• Easy Installation — Mounts easily on walls or ceilings using the included bracket; ideal for hard-to-wire locations.
• Smart Maintenance Alerts — Built-in indicators notify users of low battery or device tampering.
• PowerG Wireless Reliability —Two-way encrypted communication for secure signal transmission

• Multichannel Frequency Hopping Spread Spectrum (FHSS) to overcome interference

• Adaptive Transmission Power for extended battery life

• TDMA synchronized communication to prevent message collisions

• 128-bit AES encryption for enhanced data security

• Wide Coverage Range — Long-range PowerG communication reduces the need for repeaters.
• Battery Life — Up to 3 years with typical use, powered by three AAA batteries (included).
• Tamper Protection — Equipped with a back tamper switch for additional security.
• Designed for Indoor Environments — Operates from 40°F to 100°F (4.4°C to 37.8°C) with stable performance.

Specifications

Dimensions: 5 × 2.5 in (125 × 63 mm)

Weight: 8.75 oz (243 g)

Power Source: 3 × AAA batteries (included)

Battery Life: Up to 3 years (typical use)

Operating Temperature: 40°F to 100°F (4.4°C to 37.8°C)

Installation: Wall or ceiling mount

Alarm Output: 85 dB

Compatibility:

• PGx936: PowerSeries Neo and iotega systems

• SMD-429 PG2: PowerMaster systems

Certifications: FCC / IC / UL / ULC / CNC CSFM (for PGx936) / CE

Professional Applications

• Residential and commercial fire detection
• Smoke and heat monitoring in secure environments
• Integration with PowerSeries Neo and iotega systems
