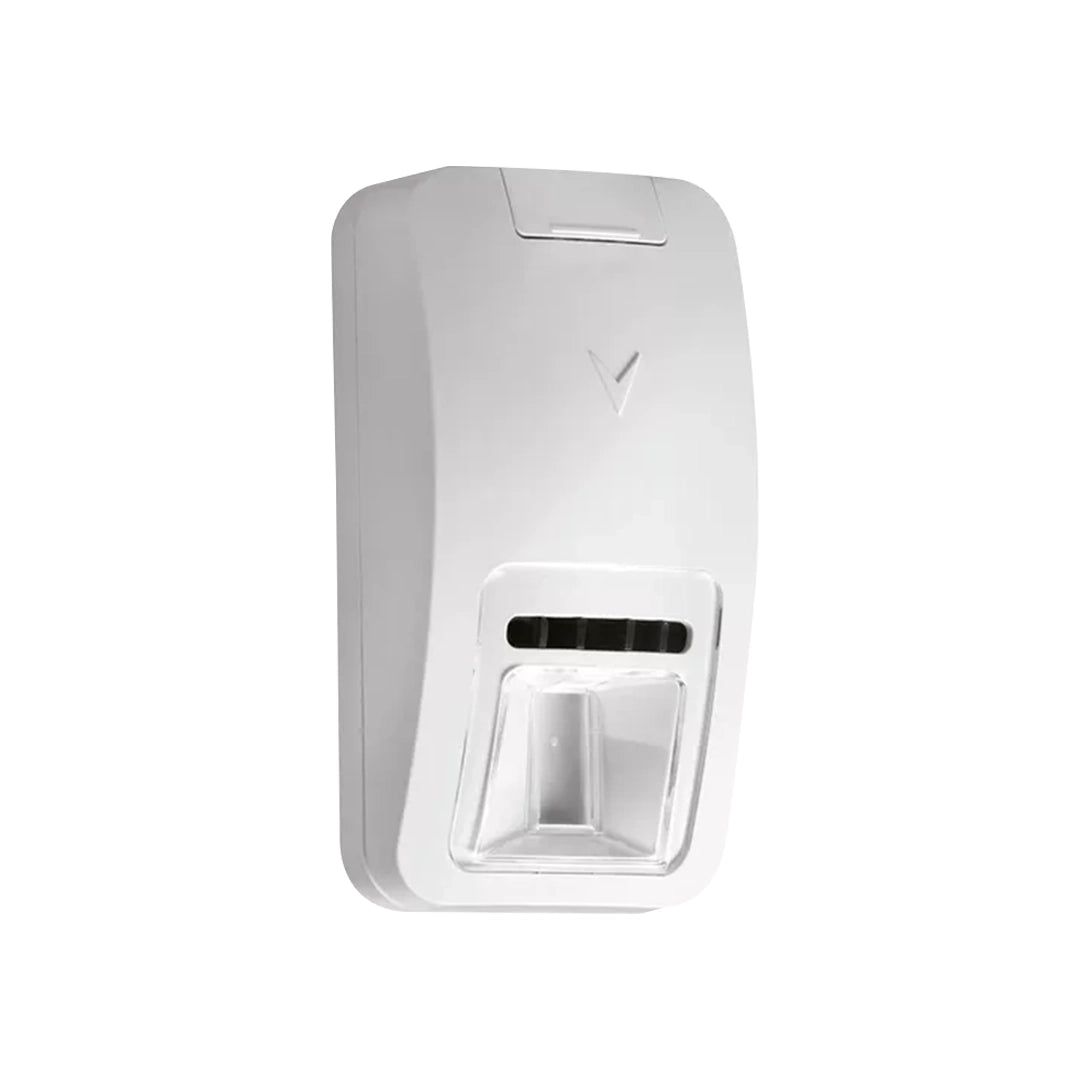

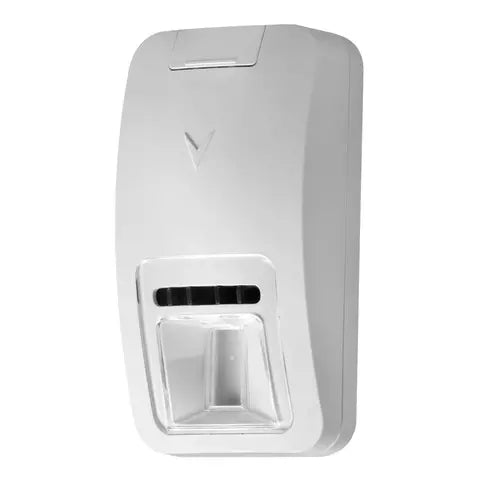

PG9984P – PowerG Wireless Dual Technology (PIR & MW) Motion Detector Advanced technology. Reduced false alarms.

Advanced technology. Reduced false alarms.

The PG9984P PowerG Wireless Dual Technology Motion Detector is a high-performance motion sensor designed for commercial and professional environments. Using dual PIR and K-band microwave technologies, it detects intruders with exceptional accuracy while minimizing false alarms. Its adaptive sensitivity allows precise detection even when ambient temperature approaches human body temperature.

Overview

The PG9984P combines Passive Infrared (PIR) and microwave detection to ensure alarms are triggered only when both technologies detect movement simultaneously, reducing false triggers caused by environmental changes, reflections, or pets. Ideal for business premises, offices, and commercial buildings, this detector provides robust security, reliability, and easy wireless installation.

Key Features

• Dual PIR and K-band microwave detection significantly reduces false alarms and operational costs
• Extended coverage area of 15 m (50 ft) with 90° detection angle
• Vandal-resistant housing featuring patented V-Slot technology
• Pet immunity up to 40 kg (88 lb)
• Fast installation with link quality LED indicator and pull-tab auto-enrollment
• Anti-masking function prevents intruders from blocking the detector’s field of view
• Built-in PowerG wireless technology ensures secure, long-range communication
• Adaptive transmission power extends battery life up to 5 years

Technical Specifications

• Frequency: NA – 915 MHz | LATAM – 915 MHz, 433 MHz | EMEA – 868 MHz, 433 MHz | APAC – 433 MHz
• Detection Range: 15 m (50 ft) / 90° coverage
• Battery Type: 3 V CR-123A Lithium battery
• Battery Life: Up to 5 years (typical use)
• Dimensions: 115 × 60 × 48 mm (4.5 × 2.3 × 1.1 in)
• Weight (including battery): 90 g (3 oz)
• Operating Temperature: -10 °C to 55 °C (14 °F to 131 °F)
• Mounting Height: 1.8 m – 3 m (6 ft – 10 ft)
• Operating Environment: Indoors
• Approvals: FCC/IC ; UL ; EN Grade 2 ; System 5

Compatibility

PGX984P – Compatible with PowerSeries Pro, PowerSeries Neo, iotega systems, and Qolsys IQ Panel.
