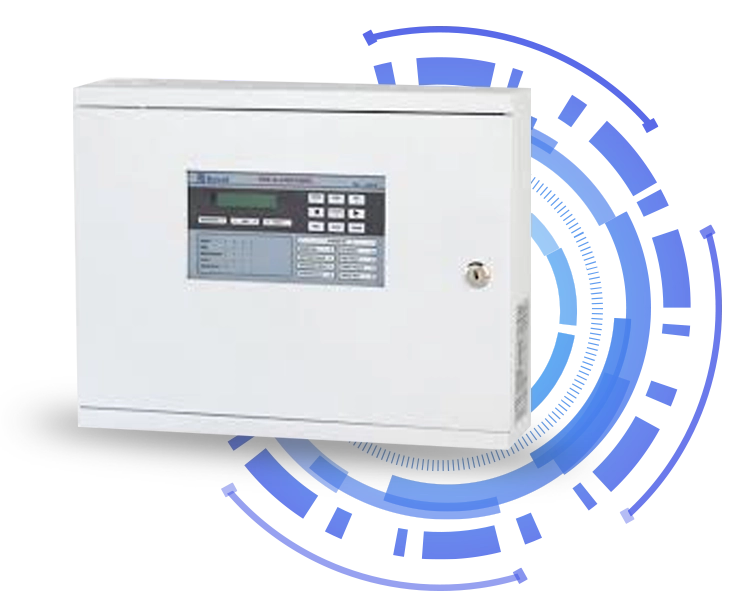

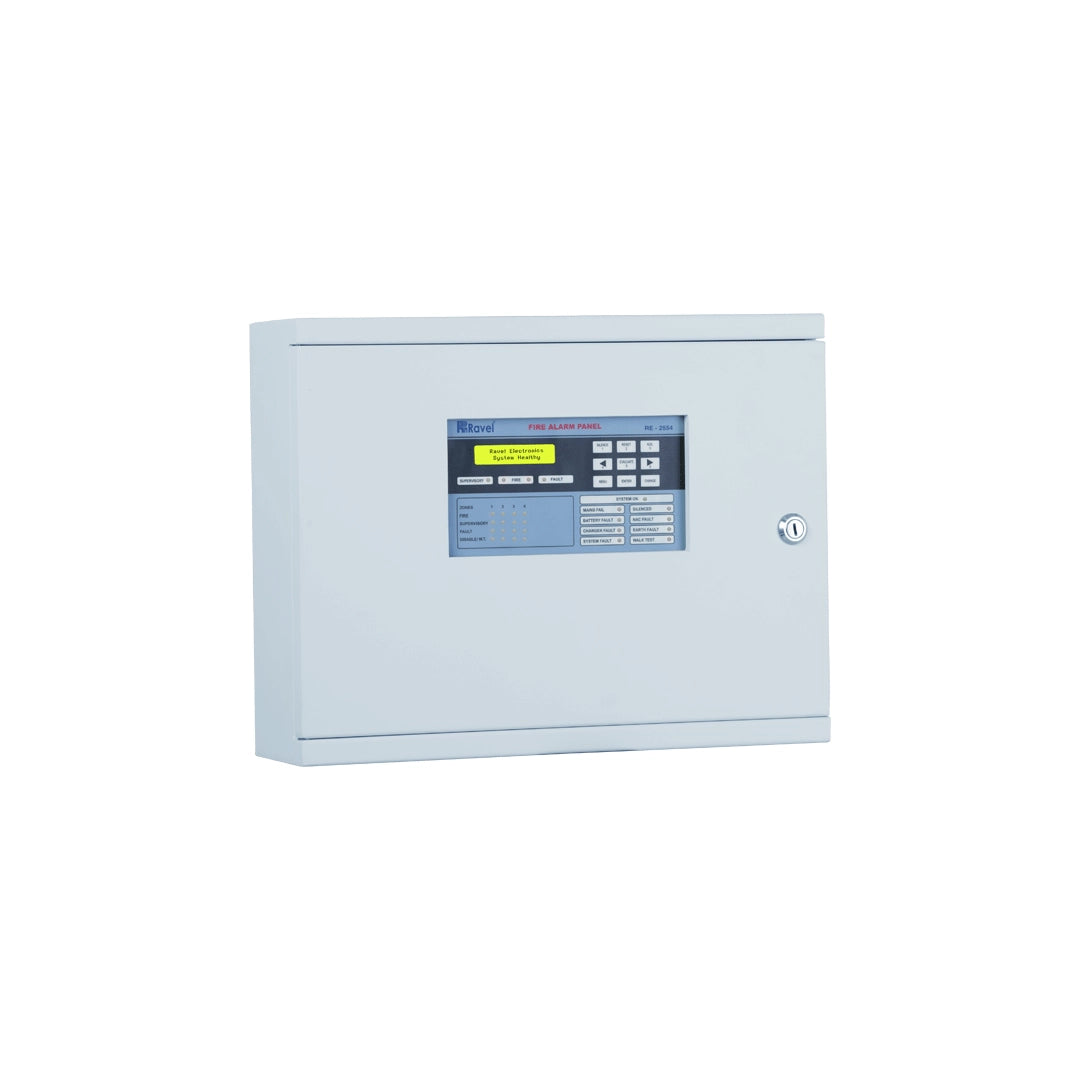

RE-2554 : Fire Alarm Control Panel

The RE-2554 fire alarm control panel is a microprocessor-based UL listed 4 Zone conventional fire alarm control panel that has a 16 X 2 LCD character display, 4 zones detection circuit, 3 common potential free contacts, and 2 common NAC sounder outputs. It also has an inbuilt Rs-485 for repeater connectivity and can be wall or ceiling mounted. The system has a switch mode power supply (SMPS) and battery polarity and deep discharge protection.

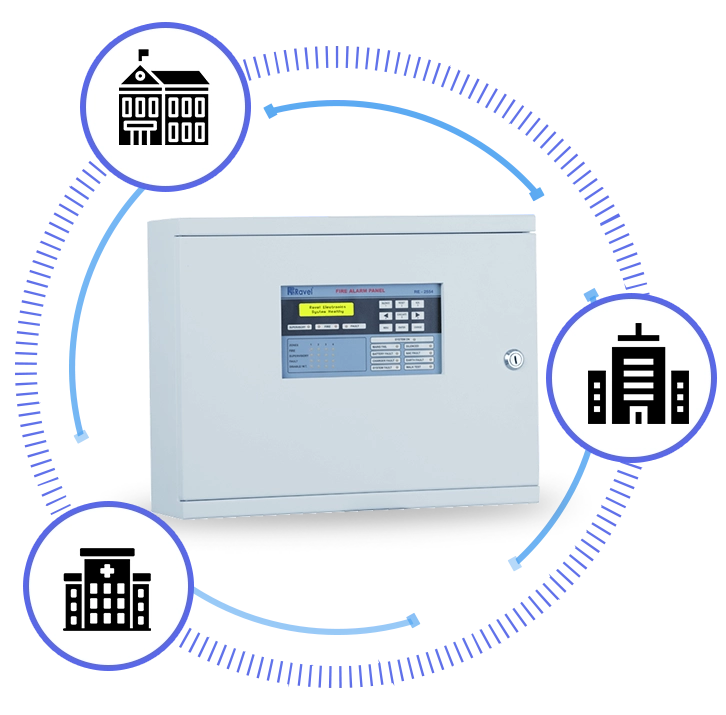

This fire alarm control panel is designed with a unique protocol to be used for small and medium establishments, schools, hospitals, hotels, banks, commercial buildings, and small-scale industries. The system is user-friendly and includes all standards to ensure ease of use and high reliability.

The RE-2554 Fire Alarm Control Panel is a microprocessor-based, UL listed 4 Zone conventional fire alarm control panel that is distributed by Nodac Technology in Miami, Florida. It has a 16 X 2 LCD character display, 4 zones detection circuit, 3 common potential free contacts, and 2 common NAC sounder outputs.

The panel has inbuilt Rs-485 for repeater connectivity and can be wall or ceiling mounted. It has a switched mode power supply (SMPS) and battery polarity and deep discharge protection.This fire alarm control panel is designed with a unique protocol to be used for small and medium establishments, schools, hospitals, hotels, banks, commercial buildings, and small scale industries.

The system has a user-friendly interface that includes all standards to ensure ease of use and high reliability. It is ruggedly constructed with CRCA sheet and powder-coated finish, making it durable and long-lasting.The RE-2554 Fire Alarm Control Panel has surge protection for all input and outputs, programmable AC loss delay/trouble remainder/alarm verification, and a standby (battery) backup 24v DC power supply with a built-in charger.

The system has error-free fire/fault status in unambiguous colored LED indication, system ON indication, and main and standby status audible and visual indication.This fire alarm control panel has form C relays for fire, fault, and supervisory, resettable/steady 24V D.C. output, RS 485 communication facility (optional), lamp test facility, and walk test facility. It has zone isolation facility with loop voltage cut off, earth fault annunciation facility at 0 ohms, AC low voltage cutoff, and programmable alarm verification and trouble reminder.

In summary, the RE-2554 Fire Alarm Control Panel is a reliable and efficient solution for fire detection and alarm systems. It is easy to install and use, and it provides a secure and stable mounting solution for cameras. It is compatible with a wide range of Hikvision dome cameras and is distributed by Nodac Technology, a trusted brand in Miami, Florida.

• Switched Mode Power Supply.
• Modular Construction
• Auto Resettable Fuse
• Surge Protection for all Input and outputs.
• Programmable AC loss delay/Trouble Remainder/Alarm Verification
• Battery polarity reversible protection
• Surface Mount Technology
• Over All current consumption is low.
• Fully complies with UL -864 and NFPA-72.
• Rugged CRCA sheet with powder coated finish.
• Operates on 110 – 220v 50 /60 Hz, AC Mains power supply.
• 16×2 Dot Matrix LCD Display.
• 4/8 Class B Style ‘B ‘ or Style ’C’ initiating device circuit (IDC).
  • All zones accept smoke detectors and any normally open contact device.
  • Any Zone can be configured as Alarm or supervisory Zone.
• 2ClassBNotificationApplianceCircuits(NAC).
• NAC shall be programmed as silenceable or Non Silenceable.
• Supervisory Zone shall be Latching or Resettable.
• Standby (battery) backup 24v DC power supply with built in charger
• Error free Fire / Fault status in unambiguous colored LED indication.
• System ON indication.
• Main, Standby status audible and visual indication.
• Battery Low visual warning with audible tone.
• FormC relays for fire, fault and supervisory.
• Resettable / Steady 24V D.C. Output.
• RS 485 Communication facility (Optional).
• Lamp Test facility.
• All field wiring circuits are Power limited except 110 – 220v AC and Battery.
• All field wiring circuits are supervised.
• Walk Test facility.
• Zone Isolation facility with loop voltage cut off.
• Earth fault annunciation facility at 0 ohms.
• AC Low voltage cutoff.
• Programmable AC loss delay.
• Programmable Alarm verification.
• Programmable Trouble reminder.
