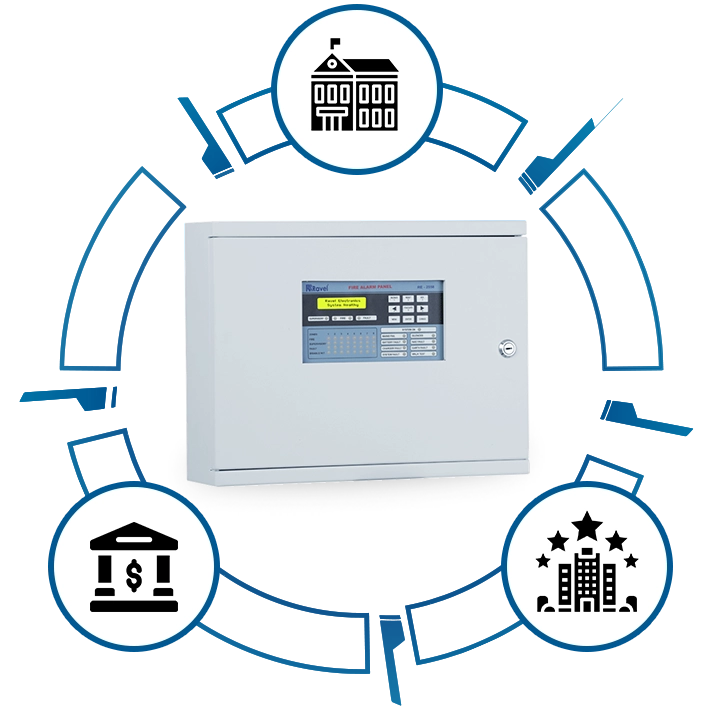

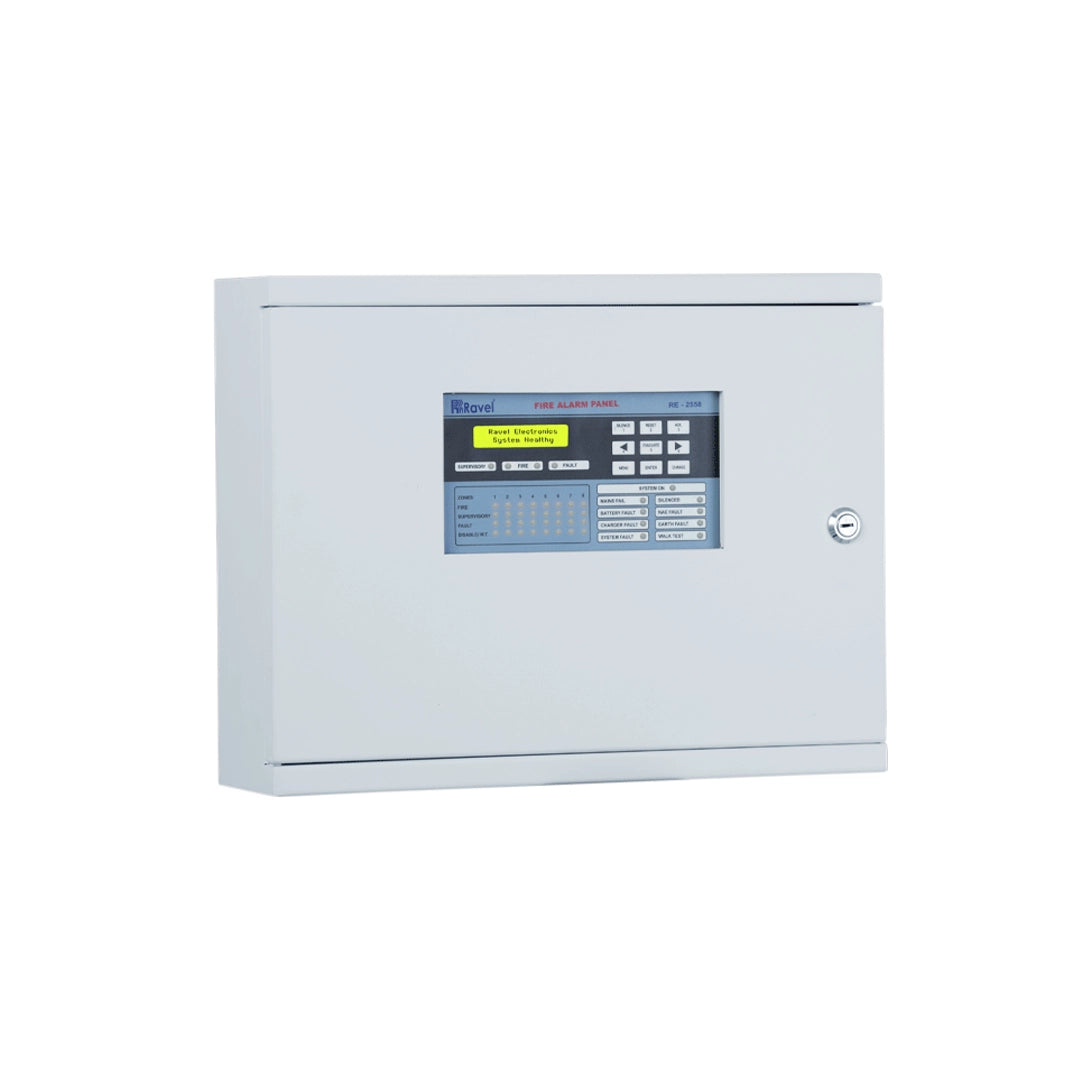

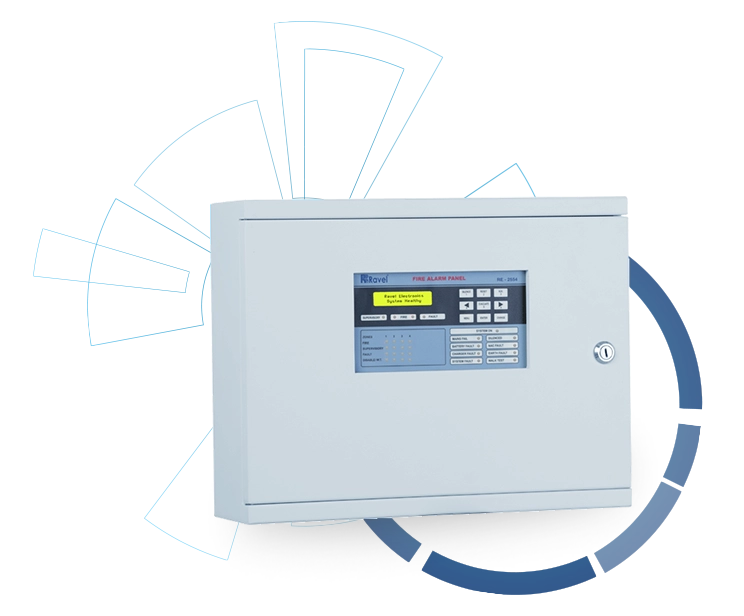

RE-2558 : Fire Alarm Control Panel

The RE-2558 Fire Alarm Control Panel is a microprocessor-based UL listed 8 zone conventional fire alarm control panel. It features a 16 X 2 LCD character display, 8 zones detection circuit, 3 common potential free contacts, and 2 common NAC sounder output. The panel is wall/ceiling mounted and has an inbuilt RS-485 for repeater connectivity.

The switch mode power supply (SMPS) and battery polarity and deep discharge protection ensure reliable performance. The RE-2558 is designed with a unique protocol for small and medium establishments, schools, hospitals, hotels, banks, residential and commercial buildings, and small-scale industries. The system is user-friendly and includes all standards to ensure ease of use and high reliability.

The advantages of the RE-2558 include easy installation and use, a secure and stable mounting solution for cameras, flexibility in camera placement, and the ability to enclose cables and connectors, hiding them from weather and/or vandals. The RE-2558 is compatible with various Hikvision dome cameras and is distributed by Nodac Technology, a trusted brand in Miami, Florida.

• Switched Mode Power Supply.
• Modular Construction
• Auto Resettable Fuse
• Surge Protection for all Input and outputs.
• Programmable AC loss delay/Trouble Remainder/Alarm Verification
• Battery polarity reversible protection
• Surface Mount Technology
• Over All current consumption is low.
• Fully complies with UL -864 and NFPA-72.
• Rugged CRCA sheet with powder coated finish.
• Operates on 110 – 220v 50 /60 Hz, AC Mains power supply.
• 16×2 Dot Matrix LCD Display.
• 4/8 Class B Style ‘B ‘ or Style ’C’ initiating device circuit (IDC).
  • All zones accept smoke detectors and any normally open contact device.
  • Any Zone can be configured as Alarm or supervisory Zone.
• 2ClassBNotificationApplianceCircuits(NAC).
• NAC shall be programmed as silenceable or Non Silenceable.
• Supervisory Zone shall be Latching or Resettable.
• Standby (battery) backup 24v DC power supply with built in charger
• Error free Fire / Fault status in unambiguous colored LED indication.
• System ON indication.
• Main, Standby status audible and visual indication.
• Battery Low visual warning with audible tone.
• FormC relays for fire, fault and supervisory.
• Resettable / Steady 24V D.C. Output.
• RS 485 Communication facility (Optional).
• Lamp Test facility.
• All field wiring circuits are Power limited except 110 – 220v AC and Battery.
• All field wiring circuits are supervised.
• Walk Test facility.
• Zone Isolation facility with loop voltage cut off.
• Earth fault annunciation facility at 0 ohms.
• AC Low voltage cutoff.
• Programmable AC loss delay / Alarm verification / Trouble reminder.
