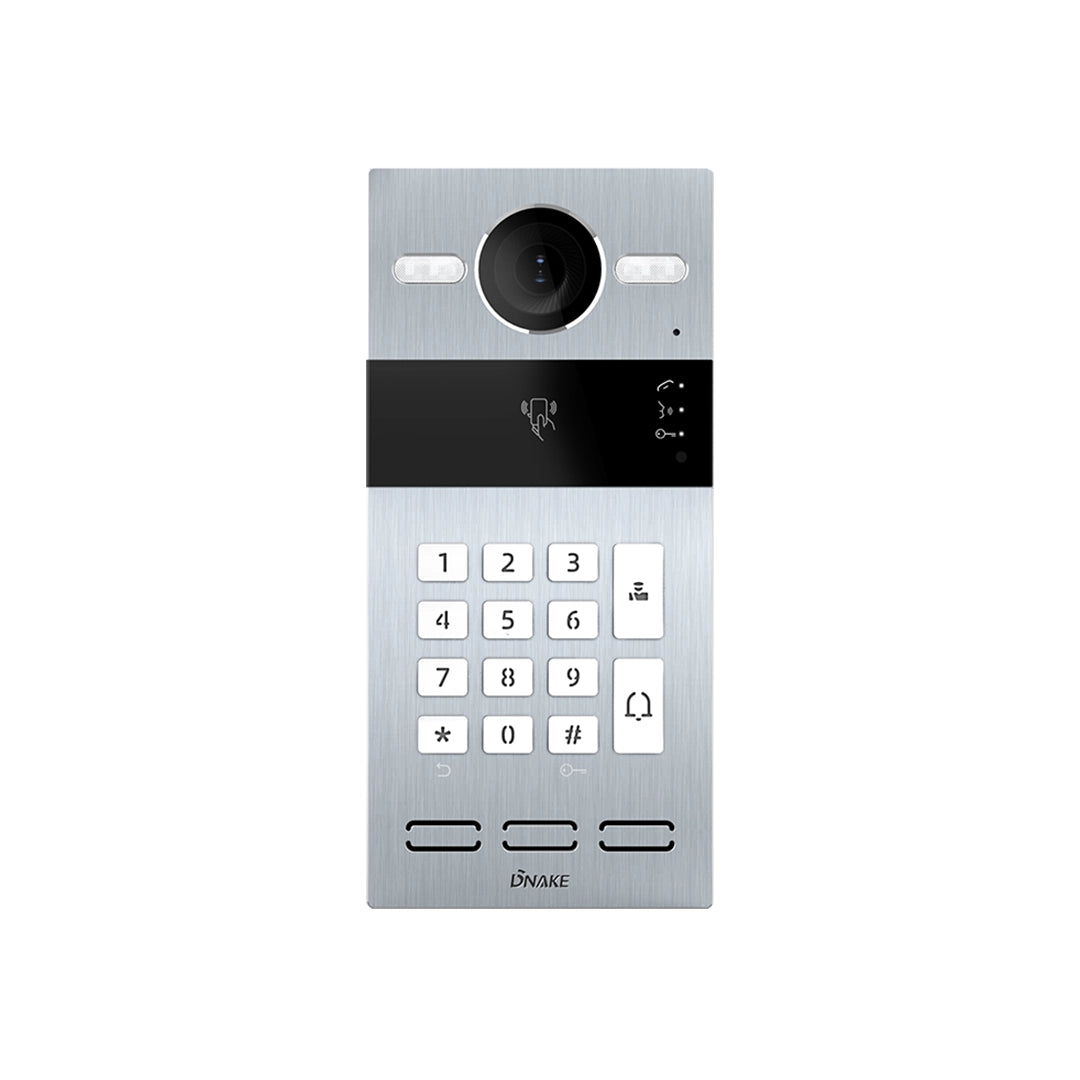

DNAKE S213K/F: Advanced Door Entry System

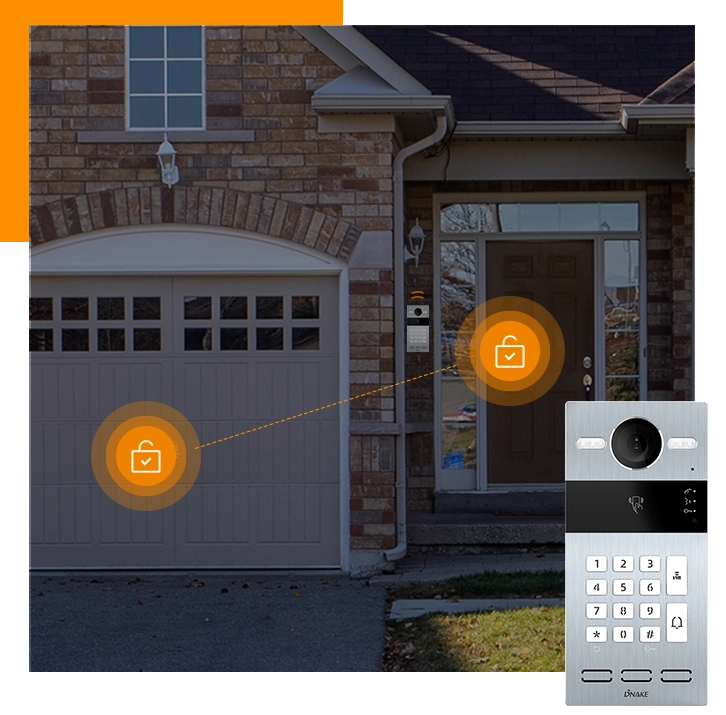

The DNAKE S213K/F is a cutting-edge door entry solution designed to enhance both security and convenience for residential villas. This innovative system allows for seamless video calls with the villa entrance door and enables remote door access via an indoor monitor or mobile app. Its versatility and user-friendly design make it an ideal addition to modern smart homes, as it easily integrates with SIP devices.
Key Features
-
Power Options: The DNAKE S213K/F can be powered through Power over Ethernet (PoE) or a DC 12V/2A power adapter, offering flexible installation choices.
-
Access Control: The system supports IC (13.56MHz) and ID (125kHz) cards, along with PIN code access, accommodating up to 60,000 cards.
-
Indicators and Relays: Equipped with three indicator lights and supports two relay outputs, enhancing its functionality.
-
Security: Includes a tamper alarm to protect against unauthorized access.
-
User Interface: Features a keypad for straightforward input and operation.
Physical Specifications
-
System: Operates on a Linux-based system.
-
Memory: Contains 64 MB RAM and 128 MB ROM.
-
Construction: Built with a durable aluminum front panel.
-
Power Consumption: Standby power is 1.5 W, with a rated power of 3.5 W.
-
Camera: A 2MP CMOS camera provides high-quality video.
-
Connectivity: Offers one Ethernet port (RJ45, 10/100 Mbps) and supports Wiegand and RS485 ports.
-
Environmental Ratings: IP65 and IK07 ratings ensure resistance to dust, water, and impact.
-

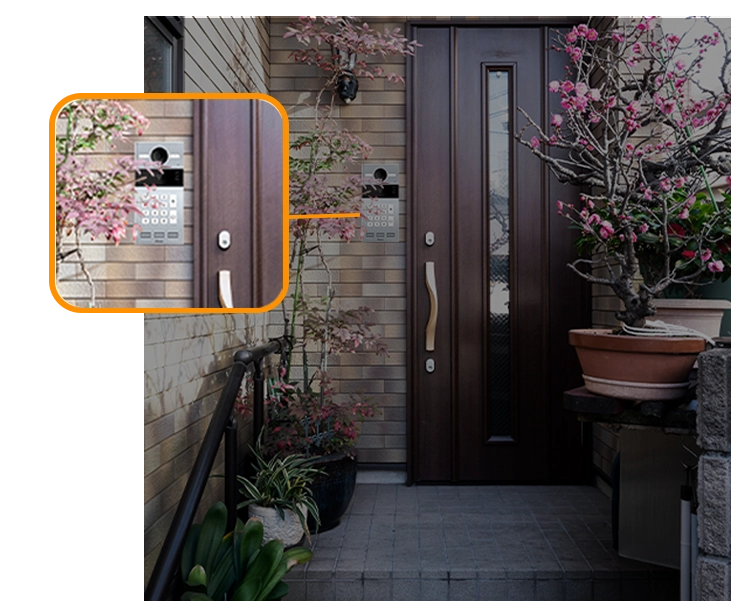

Installation: Designed for flush mounting with dimensions of 188 x 88 x 34 mm.
-
Operating Conditions: Functions well in temperatures ranging from -40°C to +55°C and humidity levels of 10% to 90% (non-condensing).
Audio and Video Features
-
Audio: Utilizes the G.711 audio codec with built-in echo cancellation. Includes a built-in microphone and speaker for clear audio communication.
-
Video: Supports the H.264 video codec with a resolution of 1280 x 720. Offers a wide viewing angle of 110° horizontally, 60° vertically, and 125° diagonally. Features LED white light for light compensation.
Networking Capabilities
-
Protocols Supported: Compatible with ONVIF, SIP, UDP, TCP, RTP, RTSP, NTP, DNS, HTTP, DHCP, IPV4, ARP, and ICMP.
Package Details
-
Contents: The package includes the DNAKE S213K/S, a bracket, screwing kit, and a quick start guide. Please note that the power adapter is not included.
-
Packaging: Each unit weighs 0.78 kg, with a carton containing 12 units weighing 12.58 kg. The gift box dimensions are 237 x 147 x 92 mm, and the carton dimensions are 580 x 500 x 170 mm.
The DNAKE S213K/F provides a comprehensive and secure solution for modern home access control, offering both convenience and peace of mind for homeowners.
