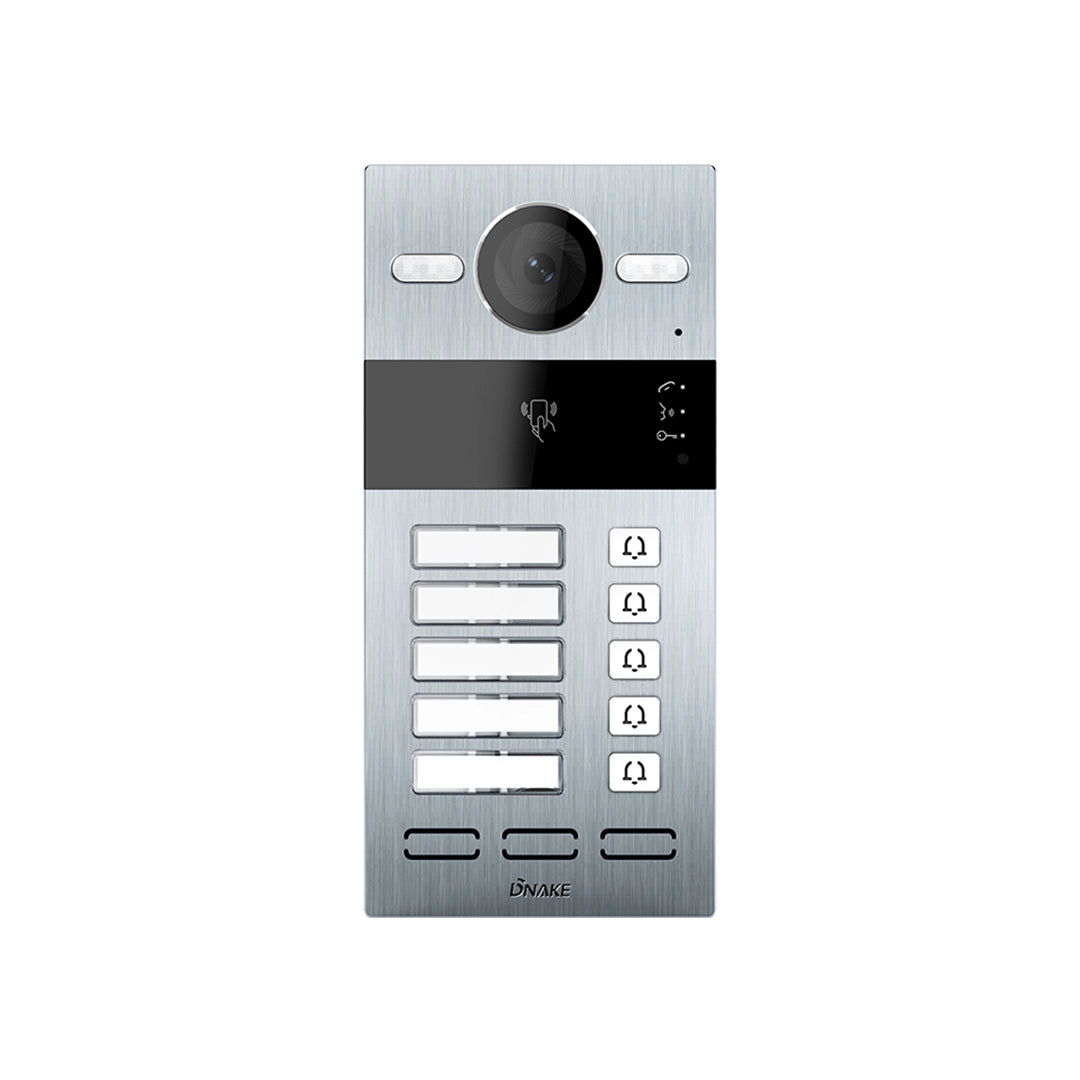

S213M-5/S

Power Supply Options: The device can be powered using Power over Ethernet (PoE) or a DC12V/2A power adapter.

Card Support: Compatible with IC (13.56MHz) and ID (125kHz) cards, supporting up to 60,000 cards.

Indicator Lights: Features three indicator lights for easy status identification.

Relay Support: Comes with two relays for enhanced functionality.

Tamper Alarm: Equipped with a tamper alarm for added security.

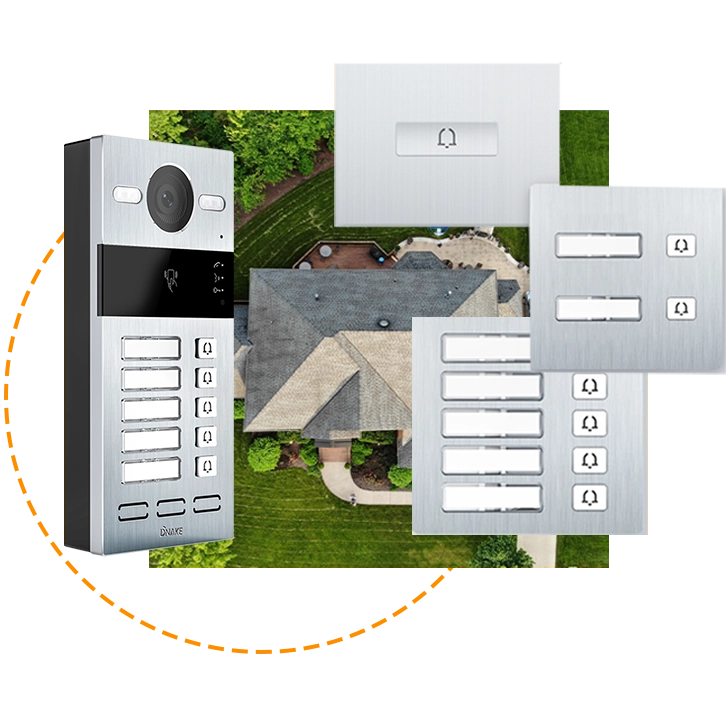

Multi-button Support: Optional support for name plates with 2 or 5 buttons.

System: Runs on Linux with surface mounting.

Memory: 64 MB RAM and 128 MB ROM.

Front Panel: Made of durable aluminum.

Camera: 2MP CMOS camera for clear video calls.

Wiegand Port: Supported.

Ethernet Port: 1 x RJ45, 10/100 Mbps adaptive.

Reset Button: 1 included.

RS485 Port: 1 included.

IP / IK Rating: Rated IP65 / IK07 for protection against dust and impact.

Installation: Designed for surface mounting.

Dimensions: 188 x 88 x 34 mm.

Operating Temperature: From -40℃ to +55℃.

Storage Temperature: From -40℃ to +70℃.

Humidity: Operates in 10% to 90% non-condensing environments.

Audio Codec: Uses G.711 codec for clear audio.

Echo Cancellation: Ensures clear communication.

DTMF: RFC2833 support.

Microphone and Speaker: Built-in for hands-free communication.

Video Codec: H.264 for efficient video compression.

Resolution: 1280 x 720 for high-definition video.

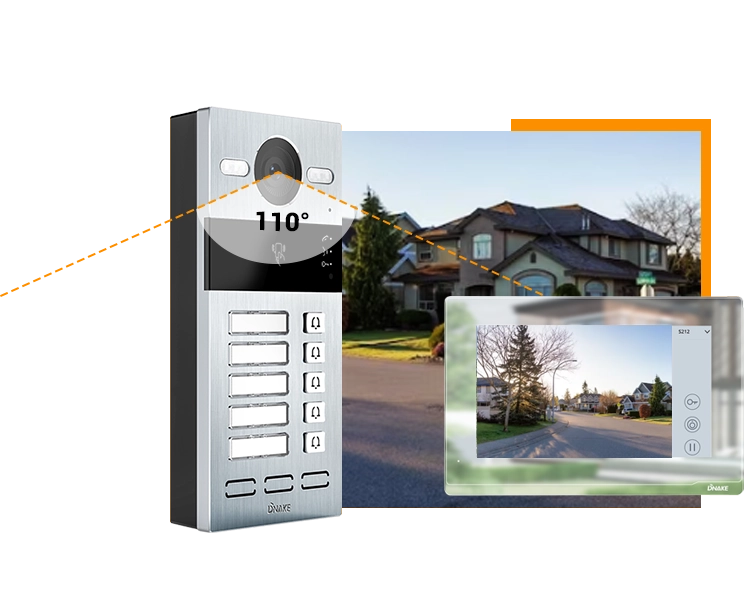

Viewing Angle: 110° horizontal, 60° vertical, and 125° diagonal.

Image Transfer Rate: Up to 720p at 25fps.

Light Compensation: Equipped with LED white light for better visibility.

Protocols Supported: ONVIF, SIP, UDP, TCP, RTP, RTSP, NTP, DNS, HTTP, DHCP, IPV4, ARP, ICMP for flexible network integration.

Contents: Includes DNAKE S213M (power adapter not included), bracket, screwing kit, and a quick start guide.

Quantity per Carton: 12 pieces.

Weight: Net weight per piece is 0.78 kg; gross weight per carton is 12.78 kg.

Giftbox Size: 237 x 147 x 92 mm.

Carton Size: 580 x 500 x 170 mm.
