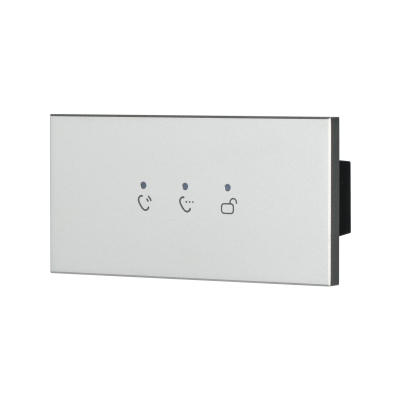

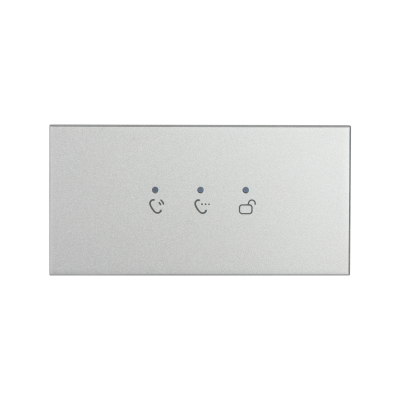

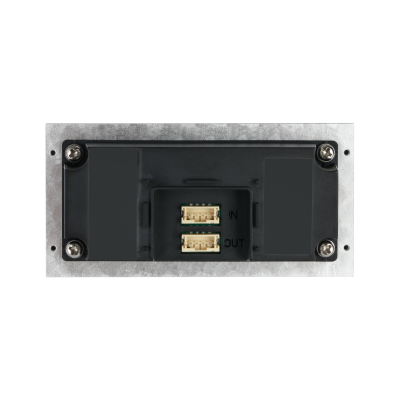

SCO-DVI-OS52-L – Indicator Module

Overview

The OCB-DVI-OS52-L Indicator Module is designed to provide clear visual signaling for access control and intercom systems. Featuring an embedded processor and LED indicators, it delivers reliable operation and easy status recognition in both indoor and outdoor environments. Its compact and durable design makes it ideal for integration into modular door station systems.

Key Features

• Embedded processor for stable and efficient performance
• Dual LED indicators for clear visual feedback (status and operation)
• Durable aluminum alloy casing offering strong protection and long service life
• IK07 impact resistance and IP65 weatherproof rating (requires silicone sealant for installation)
• Power Output: 5 VDC to supply other connected modules
• Power Supply: 5 VDC, typically provided by other modules in the system
• Flexible installation options – supports both flush mount and surface mount
• Compact dimensions: 100 mm × 50 mm × 28.5 mm (3.94" × 1.97" × 1.12")
• Operating temperature: –30 °C to +60 °C (–22 °F to +140 °F)
• Operating humidity: 10%–90% RH
• Power consumption: ≤0.5 W for energy-efficient operation
• Lightweight design (0.14 kg / 0.31 lb) for easy handling and installation

Applications

Ideal for use in modular outdoor stations, access control panels, and intercom systems where clear visual indication and reliability are essential.
