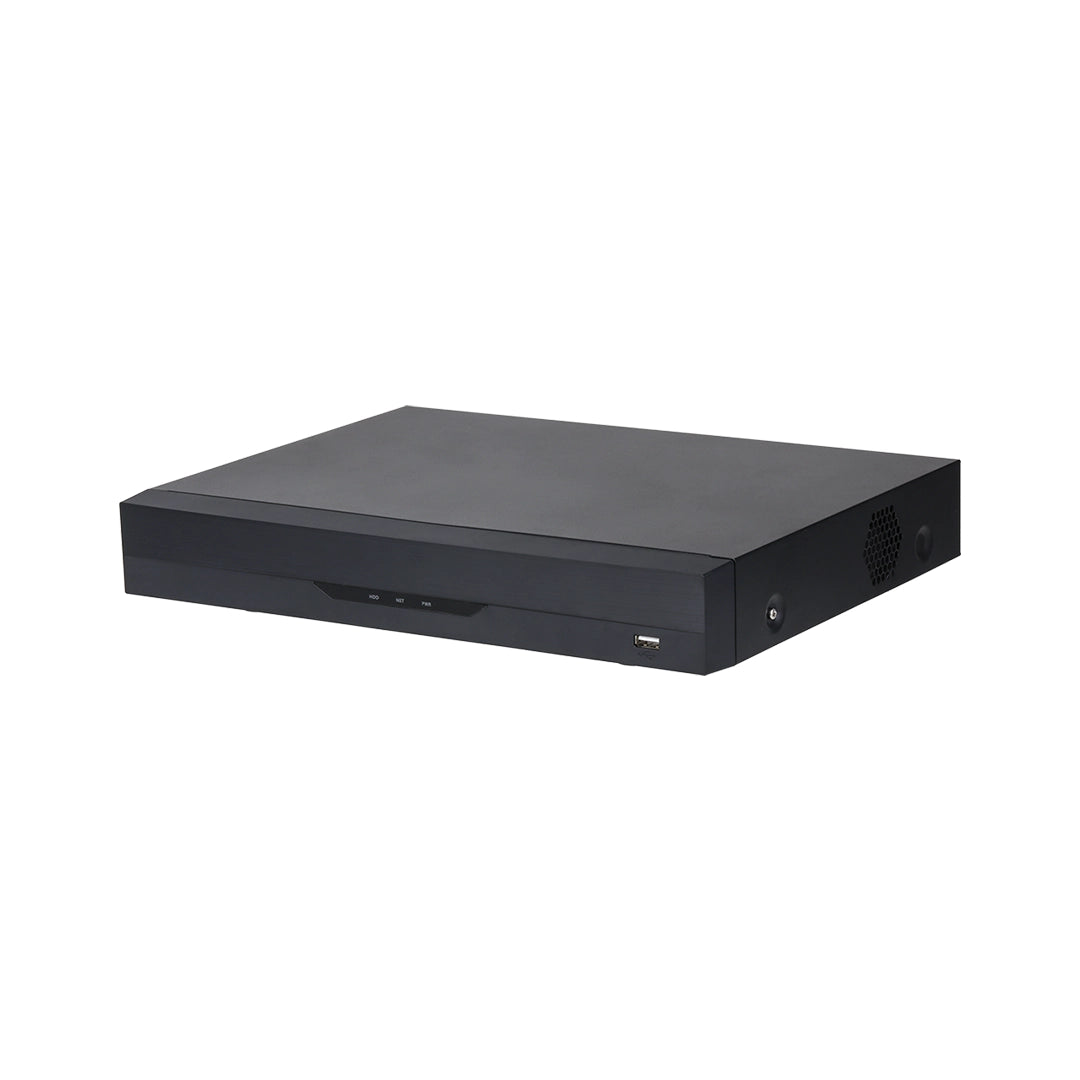

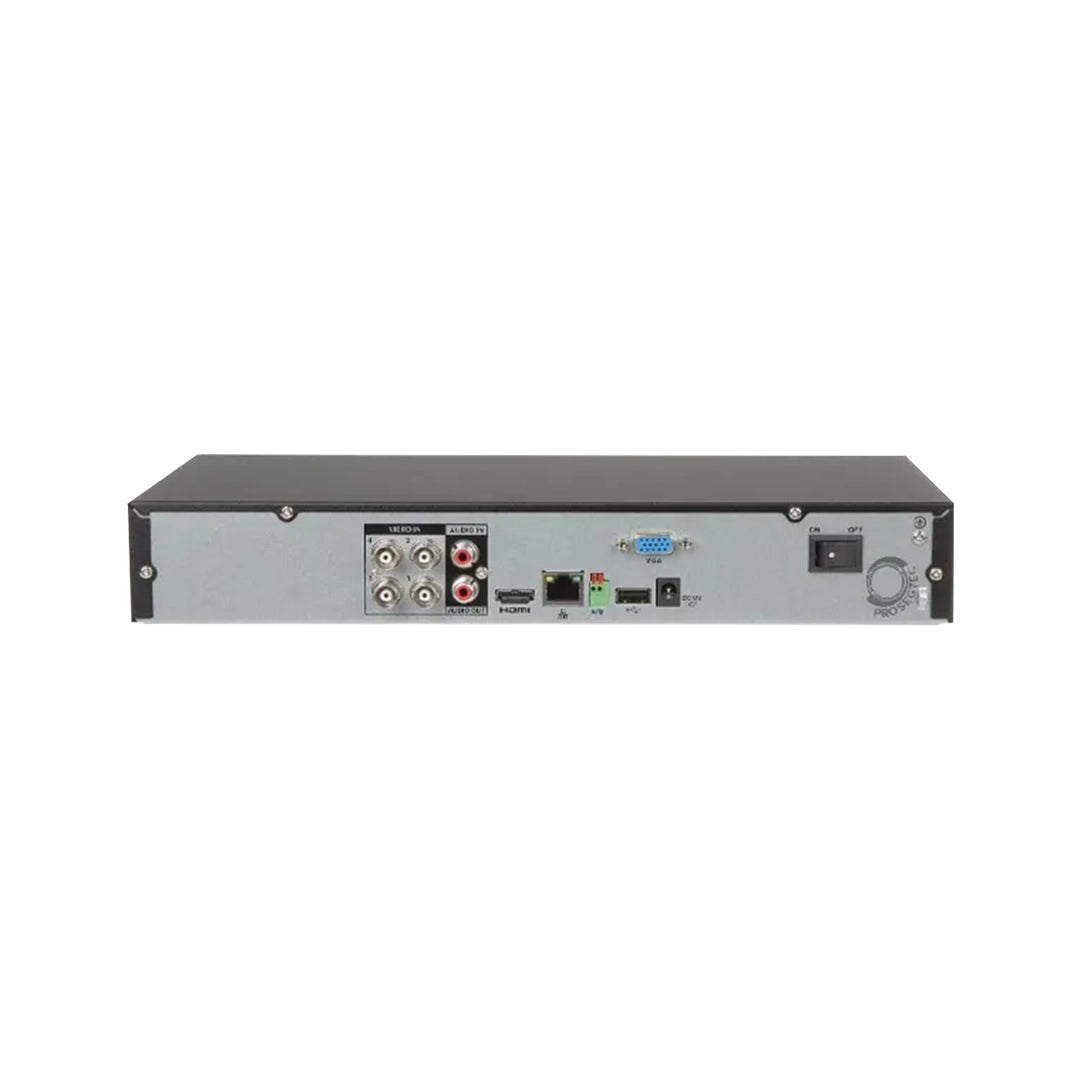

SCO-DXR6104-J3 : 4 Channel Penta-brid 1080P Mini 1U Digital Video Recorder

Overview

The SCO-DXR6104-J3 is a high-performance 4-channel Penta-brid 1080P Mini 1U DVR designed for flexible and reliable video surveillance. Supporting HDCVI, AHD, TVI, CVBS, and IP inputs, it provides seamless integration with both analog and IP cameras. With advanced H.265+/H.265 compression, intelligent video analytics, and IoT & POS functionalities, this DVR delivers superior efficiency and smart monitoring for small to medium-sized security systems.

Key Features

• Penta-brid Compatibility: Supports HDCVI, AHD, TVI, CVBS, and IP camera inputs for maximum flexibility.
• High-Definition Recording: Records at 5MP, 4MP, 1080P@25/30fps, and 720P@50/60fps resolutions.
• Advanced Compression: H.265+/H.265 dual-stream technology ensures efficient storage and bandwidth usage.
• Intelligent Video System (IVS): Offers smart search, motion detection, and one-channel face recognition.
• IP Camera Support: Supports up to 6 IP channels, each up to 6MP, with a total 48 Mbps incoming bandwidth.
• IoT & POS Integration: Enables device interconnectivity and point-of-sale data overlay for enhanced situational awareness.
• Compact Design: Mini 1U chassis ideal for space-limited installations.
• User-Friendly Interface: Easy-to-navigate GUI for quick setup and operation.
